Composite and S-Video to VGA Video Scan Converter


For those moments when you need to convert your video so it can display on a computer, video display or projector with a VGA connection...
Learn More
StarTech VID2VGATV2 1
StarTech VID2VGATV2 2
StarTech VID2VGATV2 3
StarTech VID2VGATV2 4
Our Price: $193.33
List Price: $206.99
You save 7%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

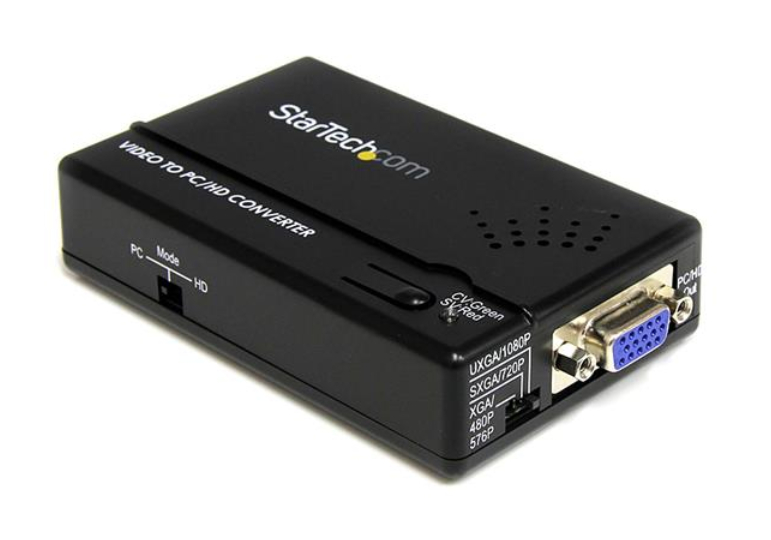

For those moments when you need to convert your video so it can display on a computer, video display or projector with a VGA connection, StarTech has a solution with the VID2VGATV2. This Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets.

Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. The VID2VGATV2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

StarTech VID2VGATV2 Applications:

  • Ideal for displaying video from DVD players, VCRs or legacy Game Consoles on VGA projectors and HDTV sets
  • Display camcorder output on televisions or monitors equipped with VGA input
  • Monitor security cameras with S-Video or composite signaling using VGA monitors or televisions
  • Adapt VHS video in the classroom to newer televisions
  • Convert legacy Medical Imaging equipment for display on computer monitors
  • Use in boardrooms for adapting legacy video equipment to work with new projectors

StarTech VID2VGATV2 Includes:

  • 1 - Video Converter/Scaler
  • 1 - VGA to Component (RCA) breakout cable
  • 1 - Universal Power Adapter
  • 1 - Instruction Manual

StarTech VID2VGATV2 Features:

  • Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
  • Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
  • Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution

StarTech VID2VGATV2 Specifications:

  • Hardware:
    • Active or Passive Adapter: Active
    • Audio: No
    • Converter Type: Scaler
  • Performance:
    • Supported Resolutions:
    • PC: 1600x1200, 1280x1024, 1024x768
    • HDTV: 480p (50/60Hz), 576p (50Hz), 720p (50/60Hz), 1080p (50/60Hz)
  • Connector(s):
    • Connector A:
      • 1 - Composite Video (1 x RCA) Female Input
      • 1 - S-Video (4 pin, Mini-DIN) Female Input
    • Connector B: 1 - VGA (15 pin, High Density D-Sub) Female Outpu
  • Indicators:
    • LED Indicators: 1 - Composite (Yellow) / S-Video (Red) input indicator
  • Power:
    • Output Current: 1A
    • Output Voltage: 5 DC
    • Power Consumption (In Watts): 2.5
    • Power Source: AC Adapter Included
  • Environmental:
    • Humidity: 0~60% RH
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature: 32°F to 140°F (0°C to 60°C)
  • Physical Characteristics:
    • Color: Black
    • Enclosure Type: Plastic
    • Product Height: 1 in [26 mm]
    • Product Length: 4.4 in [112 mm]
    • Product Weight: 3.2 oz [90 g]
    • Product Width: 2.5 in [64 mm]
  • Packaging Information:
    • Shipping (Package) Weight: 1 lb [0.5 kg]
