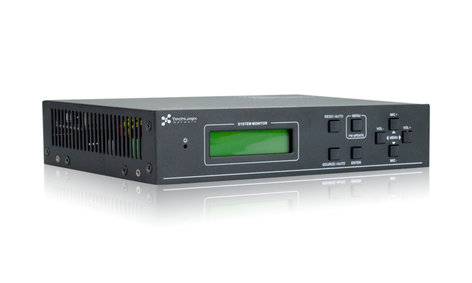

TechLogix Networx TL-5X1-HDV
5x1 HDMI & VGA Switcher

OUR PART #:  TL-5X1-HDV

The TechLogix Networx TL-5X1-HDV is a 5x1 HDMI and VGA switcher that automatically manages the connections of up to five unique users—no more passing cables, pushing buttons...
Learn More
Our Price: $699.99
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

TechLogix Networx TL-5X1-HDV
Qty:
In Stock

Similar Products

The TechLogix Networx TL-5X1-HDV is a 5x1 HDMI and VGA switcher that automatically manages the connections of up to five unique users—no more passing cables, pushing buttons, and untangling knots. Each user gets their own cable and the system automatically “senses” when someone plugs in and makes their device live to the display. Plus, HDMI and VGA dual connectivity ensure both new and old devices can connect to the system.

Installation and use is easy: place the TL-5X1-HDV on or under the conference room table, run up to three HDMI cables and two VGA cables to the different points on the table, and connect your devices (typically laptops, tablets, and phones). Cables don’t need to move and the TL-5X1-HDV handles user signal switching and distribution. You can even connect secondary audio-video inputs, such as BluRay players, dedicated computers, and cable boxes.

TechLogix Networx TL-5X1-HDV Includes:

  • Installation guide
  • Power adapter
  • Mounting ears (2 ea)
  • Mounting screws (8 ea)
  • RS232 cable
  • VGA to YPbPr cables (2 ea)
  • Plastic cushions (4 ea)
  • Pluggable terminal blacks (7 ea)
  • IR receiver
  • IR remote

TechLogix Networx TL-5X1-HDV Features:

  • (3) HDMI inputs
  • (2) VGA inputs
  • (1) HDMI output
  • Scaling to WUXGA
  • CEC enabled for source control
  • Automatic switching with connection sensing
  • Manual switching via IR, RS232 & front panel
  • Analog audio de-embedding
  • Analog audio embedding on all input channels
  • Microphone input with phantom power
  • Independent mic and line volume control

TechLogix Networx TL-5X1-HDV Specifications:

  • I/O Connections:
    • HDM Inputs: Three (3) Type A receptacle
    • VGA Inputs: Two (2) HD-15 female receptacle
    • Embedded Audio Inputs: Five (5) 3-pin captive screw connectors
    • MIC Input: One (1) 3-pin captive screw connector
    • HDMI Output: One (1) Type A receptacle
    • Audio Output: One (1) 3-pin captive screw connector
    • IR Input: One (1) 3.5mm TRS jack
    • RS232 Control: One (1) 3-pin captive screw connector
    • Button Control (Front Panel): Five (5) buttons in total
    • MIC Signal Type Selector: One (1) 3-position slider switch
    • Firmware Update: One (1) Type A receptacle
    • DC 12V Power: One (1) Locking Barrel (5.5mm outside diameter, 2.1mm inside diameter)
  • Video Performance:
    • VGA/HDMI Scaling Resolutions: 1920x1200@60Hz, 1920x1080@60Hz, 1600x1200@60Hz, 1360x768@60Hz, 1280x800@60Hz, 1280x720@60Hz, 1024x768@60Hz
    • Maximum Pixel Clock: 65MHz
    • Bandwidth:
      • HDMI:4.95Gbps (1.65Gbps per color)
      • C-Video: 150MHz
      • YPbPr: 170MHz
      • VGA: 375MHz
    • Compliance: HDMI, HDCP and CEC (Consumer Electronics Control)
    • Impedance: 75O
    • Gain: 0 db
    • Input DDC Signal: 5.0 volts p-p (TTL)
    • Input Video Signal: 0.5 to 1.0 volts p-p
  • Audio Performance:
    • HDMI Embedded Audio: PCM, Dolby Digital, DTS, DTS-HD
    • External Audio Signal:
      • 3 Dual-mono stereo audio for HDMI
      • 2 Dual-mono stereo audio for VGA
      • 1 MIC input
    • Stereo Channel Separation: >80dB @ 1kHz
    • Frequency Response: 20Hz~20K Hz
    • Common Mode Rejection Ratio (CMRR): >90 dB at 20 Hz ~ 20 kHz
  • Chassis and Environmental:
    • Enclosure: Painted aluminum
    • Dimensions (WxHxD): 8.66" x 1.73" x 5.83" (220 x 44 x 148mm)
    • Shipping Weight: 3 lbs (1.35 Kg)
    • Operating Temperature:
      • Environment: +14° ~ +104°F (-10° ~ +40°C)
      • Chassis: 113°F (45°C)
    • Operating Humidity (Environment): 10% ~ 90% Non-condensing
    • Storage Temperature (Environment): +5° ~ +158°F (-15° ~ +70°C)
    • Storage Humidity (Environment): 10% ~ 90% Non-condensing
  • Power, ESD, Regulatory:
    • Maximum Power Consumption: 16W
    • Power Supply: DC 12V
    • ESD Protection: 15KV
    • Regulatory: CE, FCC
  • Other:
    • Standard Warranty: 1 Year
    • Indicator: 1 Power
