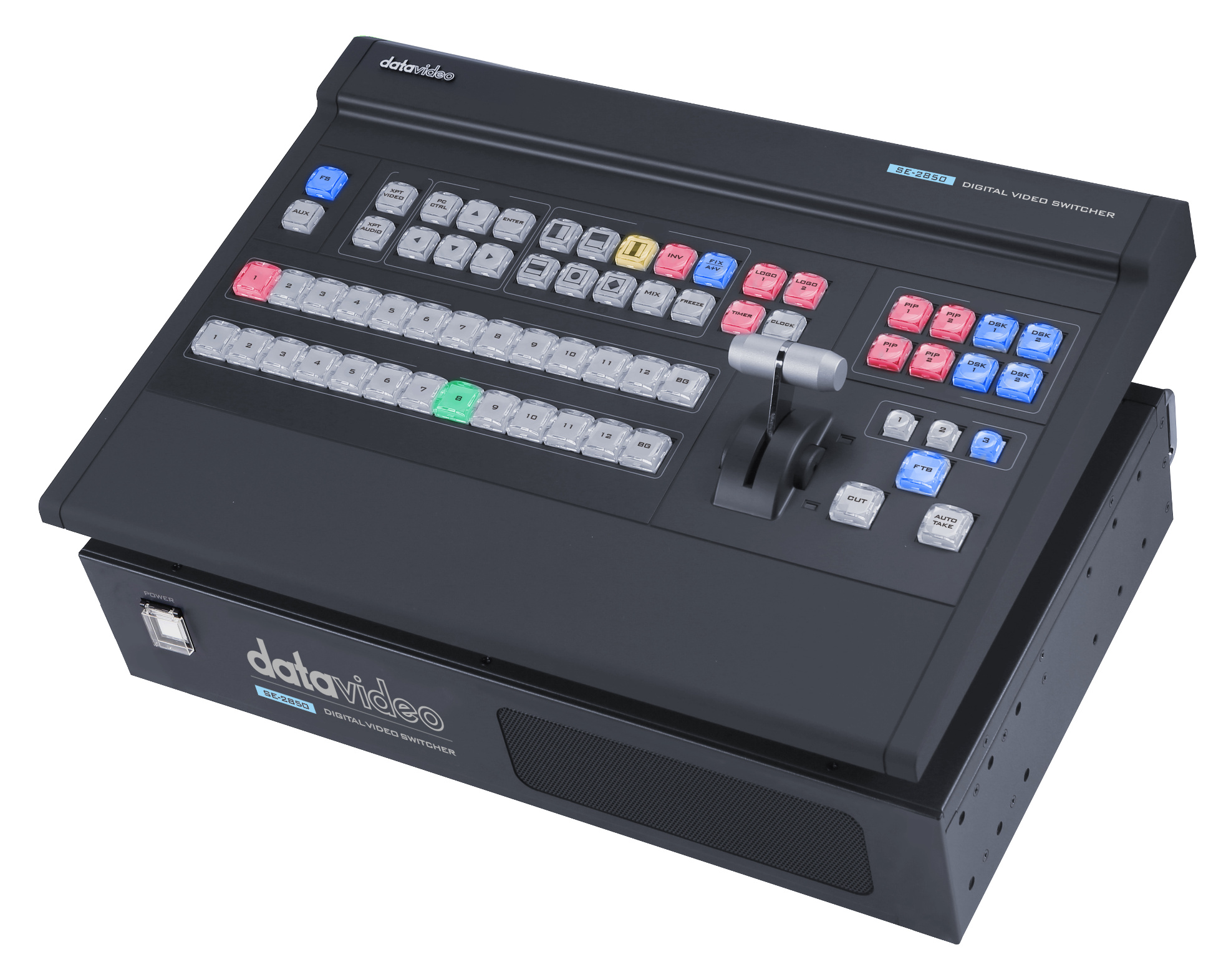

Datavideo SE-2850-8 8-Channel HD/SD Video Switcher

This multi-definition switcher from Datavideo, the SE-2850-8 is designed for productions requiring 8 channels of HD or SD inputs. Being one of Datavideo’s most flexible switcher solutions, the SE-2850-8 is able to accept inputs in varying combinations of HD/SD SDI and HDMI. It is ready for live productions, giving producers the opportunity to output graphics with rich, visually appealing programming.

The SE-2850’s audio functionality allows it to connect an external mixer for a complete sound control. The SE-2850-8 also features all channel audio de-embedding and audio delay, and 4 dedicated XLR inputs. As an integrated Multimedia mixer, the SE-2850-8 can switch between up to 8 audio sources. In addition to producing 4:2:2 10 bit broadcast quality pictures with versatile input/output configurations, the SE-2850-8 also has powerful, easy-to-use effects, such as dual picture in picture (PIP), downstream keyer (DSK), logo insertion and built-in title overlay system for the entry level Datavideo CG systems.

Includes

• 1x SE-2850 Main Unit
• 1x SE-2850 Control Board
• 1x AD Switch DC 12V with AC Cord
• 1x DB9P TO DB9P Cable
• 1x CB-41 / XLR to XLR Cable
• 2x Extra button cap for wipe
• 12x Screw
• 2x 2U Ear Rack

Features

• Supports 8 HD or SD Inputs in a variety of configurations:
  • HD Mode: (1) 8/12 HD-SDI , (2) 6/9 HD-SDI + 2/3 HDMI
  • SD Mode: (1) 8/12 SD-SDI , (2) 6/9 SDI + 2/3 HDMI
• 6 user-defined output options on 4 SDI output channels.
• User defined and positioned dual PIP.
• Two downstream keyers (DSK) with a setup choice of basic Luma key or alpha channel.
• Built-in title overlay system (TC-200) that works with entry level Datavideo CG systems.
• Two independent LOGOS.
• Frame Store (FS) source for each input channel.
• Real-time clock featuring HH:MM:SS on the multi-screen.
• Count down counter MM:SS.
• User defined wipe buttons - choice of 17 wipes with optional border.
• Support XPT cross point: XPT Video and XPT Audio.
• Audio delay for each de-embedded audio source.
• Two Audio output modes (Selectable on OSD):
  • External analog Audio - output SDI embedded audio is two stereo pairs from 4 analog audio inputs
  • Audio Pass Through - output SDI embedded audio is internal digital stereo pair
• Remote control over an Ethernet network using a supplied PC application running on Windows 7 Operating System or above.
• Separate, rack mountable processing unit.
• Two GPI modes: Level / Pulse trigger selectable.

Note

Actual product may vary in appearance and specification. For more information on this and other products, please contact your Sales Pro.
