Atlona Technologies AT-UHD-HDVS-300-KIT
Soft Codec Conferencing System

OUR PART #:  AT-UHD-HDVS-300-KIT

The Atlona AT-UHD-HDVS-300-KIT provides AV switching, USB and HDMI extension...
Learn More

Call for price! Not available online.

Similar Products

The Atlona AT-UHD-HDVS-300-KIT provides AV switching, USB and HDMI extension, plus system control for huddle spaces and meeting rooms using PC-based conferencing codecs such as Skype®, WebEx®, and GoToMeeting®. The transmitter and receiver kit offers five video inputs shared between both devices for HDMI, DisplayPort, and analog video signals. To simplify conference room device management, the kit provides two USB type B connectors for host computers. Two built-in USB hubs, one on the transmitter and one on the receiver, allow for numerous Human Interface Devices (HID) as well as USB cameras and microphones. For the HDMI inputs, the HDVS-300-KIT is compatible with Ultra High Definition sources and displays up to 4K/UHD @ 60 Hz with 4:2:0 color subsampling. All audio, video, data, control, USB, and Ethernet transmission between the two devices is carried over a single, Ethernet-enabled HDBaseT link up to 330 feet (100 meters).

Simple meetings demand simple systems. Attendees want to walk into a meeting space, open their laptop, and start a cloud-based conference.But to get quality results, systems are designed with AV Extenders, USB extenders, USB hubs, remote controls, cameras, microphones and all the associated cable runs. The HDVS-300-KIT was designed to eliminate the clutter and system complexity in huddle spaces and meeting rooms where USB cameras and microphones are incorporated into professional AV systems with just two devices and a single category cable. This kit also excels in hybrid rooms where a traditional HDVS system is required for one meeting but also for rooms needed cloud-based conferencing.

Surface mounting brackets are provided with the HDVS-300-KIT for easy installation of the transmitter below a conference table.

The HDVS-300-KIT provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-300-KIT can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-300-KIT forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-300-KIT display control capability can also be triggered by an external control system.

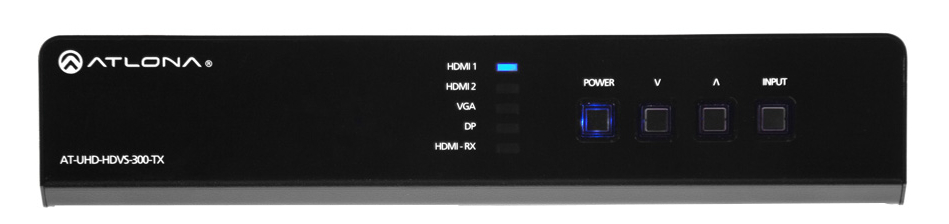

A power button on the front panel can be used for manual on/off control of either the HDVS-300-KIT or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher.

NOTE: * Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. They can confirm proper operation with many current Samsung, Panasonic, Sony, and LG TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. Atlona encourages any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.

Atlona AT-UHD-HDVS-300-KIT Applications:

  • Teleconferencing with soft codecs – The switching transmitter is situated at a conference table for presenters to connect their laptops and integrate a USB mic or speakerphone, while the receiver is connected to the display and a USB camera.
  • Touch and interactive displays – The HDVS-300-KIT is also ideal for extending USB connectivity from a touch display to a PC at the transmitter location.

Atlona AT-UHD-HDVS-300-KIT Features:

  • Configured and Managed by AMS:
    • The Atlona Management System (AMS) is a powerful network software platform ideal for configuring, managing, and monitoring the HDVS-300-KIT and other Atlona IP-controllable devices over a LAN, WAN, or VPN. AMS is available free from Atlona, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.
  • Additional features include:
    • 5 input multi- format switcher
    • Automatic display control using TCP/IP/RS-232 commands, or CEC
    • Bidirectional USB 2.0 extension - Five USB A ports with two USB B host ports
    • Auto switching with video detection technology (activated through AMS or web GUI)
    • Supports 4K @ 60Hz 4:2:0 or 4K @ 30Hz RGB with 8 bit color
    • Supports Dolby® TrueHD and DTS-HD Master Audio™ when using an HDMI for audio input and output
    • Extended distance HDBaseT port w/PoE to power the 300-TX up to 100 meters (328 feet) away
    • HDCP management
    • EDID management
    • Easy to use webGUI through Ethernet connection

Atlona AT-UHD-HDVS-300-KIT Specifications:

  • Resolution:
    • Video: 4096×2160 @24/25/30/50*/60Hz*, 3840×2160 @24/25/30/50*/60Hz*, 2048x1080p, 1080p @23.98/24/25/29.97/30/50/59.94/60Hz, 1080i @50/59.94/60Hz, 720p @50/59.94/60Hz, 576p, 576i, 480p, 480iVESA: 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900, 1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600, 640×480
    • Color Space: YUV, RGB
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
    • Color Depth: 8-bit, 10-bit, 12-bit

NOTE: *4096×2160 @50/60Hz & 3840×2160 @50/60Hz supported @ chroma subsampling 4:2:0 8-bit only.

  • Audio:
    • HDMI IN & HDBaseT OUT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • Bit Rate: up to 24-bit
  • Distance:
    • CAT5e/6 @ 4K: up to 230 feet / up to 70 meters
    • CAT5e/6 @ 1080p: up to 330 feet / up to 100 meters
    • CAT6a/7 @ 4K: up to 330 feet / up to 100 meters
    • HDMI IN/OUT @ 4K: up to 15 feet / up to 5 meters
    • HDMI IN/OUT @ 1080p: up to 30 feet / up to 10 meters
  • Signal:
    • Bandwidth: 10.2 Gbps
    • CEC: Yes
    • HDCP: Switchable – Compliant/Non-compliant – 1.4
  • Temperature:
    • Operating: 32°F to 104°F / 0°C to 40°C
    • Storage: -4°F to 140°F / -20°C to 60°C
    • Humidity: 20 to 90% non-condensing
  • Power:
    • Consumption: 23W
    • Idle Consumption: 15W
    • Supply:
      • Input: AC100-240V ~ 50/60Hz
      • Output: DC 48V
  • Dimensions:
    • H x W x D (TX): 1.73 x 8.75 x 10.28 (inch) / 44 x 224.25 x 261 (mm)
    • H x W x D (RX): 1.02 x 4.29 x 5 (inch) / 26 x 109 x 127 (mm)
    • Weight:
      • Device (TX): 2.65 lbs / 1.2 kg
      • Device (RX): 0.62 lbs / 0.28 kg
  • Certification:
    • Unit: CE, FCC
    • Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC
