Williams Sound DWS-INT4-300
Digi-Wave 300 Series Interpretation System

OUR PART #:  DWS-INT4-300

The Williams Sound DWS INT 4 300 Digi-Wave Language Interpretation System is a completely portable, wireless, single-speaker (floor) plus 2-language interpretation system.
Learn More

Call for price! Not available online.
List Price: $9,490.00

Similar Products

The Williams Sound DWS INT 4 300 Digi-Wave Language Interpretation System is a completely portable, wireless, single-speaker (floor) plus 2-language interpretation system. Ideal when security, sound quality and flexibility are critical. Designed for small - to medium-size conferences, meetings or other events where one language is shared by two interpreters. System can serve up to 25 listeners. Additional DLT 300's can be purchased separately to accommodate up to 14 additional  languages. Additional DLR 360's can be purchased separately to accommodate additional listeners. Can serve unlimited number of listeners within recommended range.

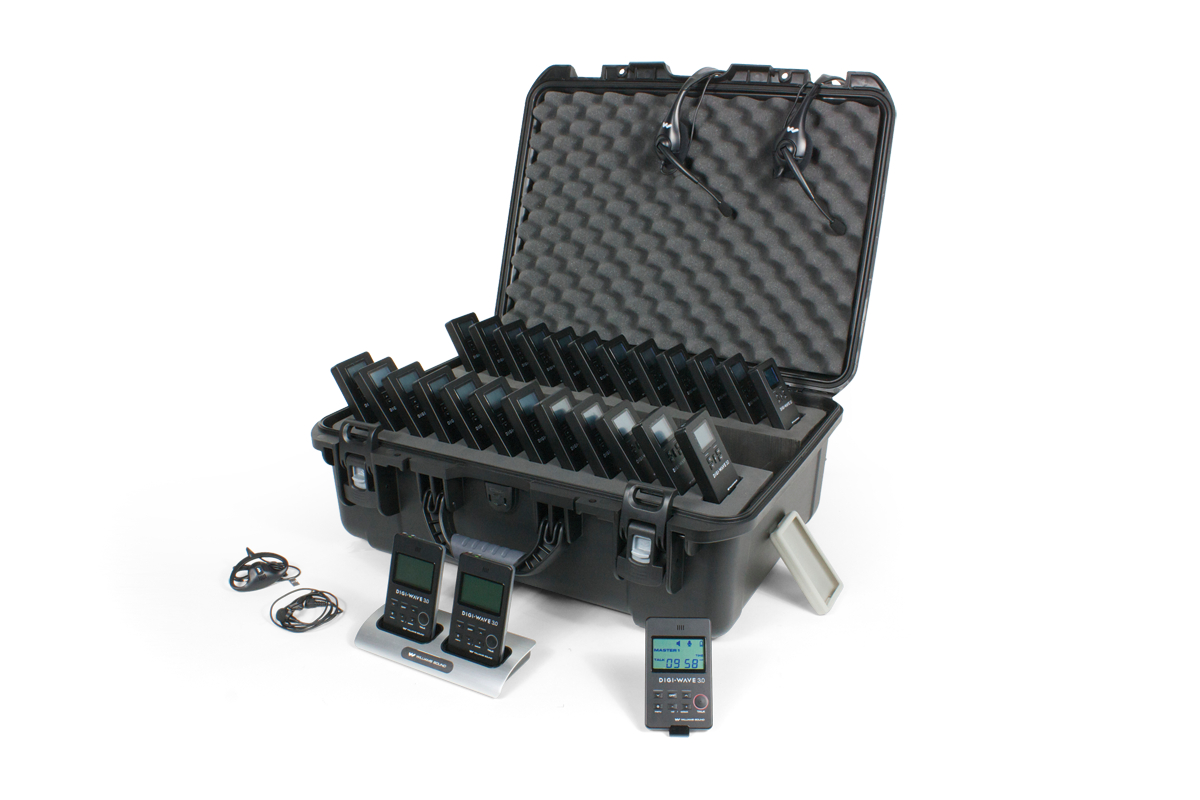

Williams Sound DWS INT 4 300 Includes:

  • (3) DLT 300 transceivers
  • (25) DLR 360 receivers
  • (25) BAT 010-2 AAA alkaline batteries
  • (1) MIC 054 directional lapel microphone
  • (2) MIC 044 2P headset microphones
  • (25) EAR 022 surround earphones
  • (1) CCS 044 silicone skin
  • (1) CHG 102 Digi-Wave 2-bay charger
  • (1) CCS 042 DW system carry case

Williams Sound DWS INT 4 300 Features:

  • Can accommodate floor (or common) language, plus one or two languages - expandable up to 14 languages
  • Quick set-up
  • No base station, console or mixing board needed.
  • Lightweight — saves on shipping costs
  • Expandable solution — can grow with your needs
  • 2.4GHz operation — legal for use in most countries
  • All-day operation on a single, full charge
  • Any number of listeners (with DLR 360 receivers)
  • IC-2 Interpreter’s Control Console(s) also can be integrated for interpreter’s booth.

Williams Sound DWS INT 4 300 Specifications:

  • dlr 360 Specifications:
    • Dimensions (WxHxD): 2.36" x 3.54" x 0.63" (60 x 90 x 16 mm)
    • Weight: 1.7 oz. (47 g) without batteries.
    • Frequency Band: 2.4 GHz (ISM band)
    • Modulation: FSK
    • Multi Channel: Up to 15 simultaneous channels (one way mode)
    • Case Material: Black ABS Plastic
    • Battery Type: 2 x AAA Alkaline or NiMH
    • Battery Life:
      • Alkaline Disposable (BAT 010-2): Up to 24 hrs
      • NiMH Rechargeable (BAT 022-2): Up to 18 hrs
    • Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
    • Audio Frequency Response (-3dB knee level):
      • Conference Mode:  140 – 11.5 KHz
      • Intercom Mode:  140 – 7.6 KHz
    • SNR: 65 dB (A-weighted)
    • THD: 0.1% (typical)
    • Antenna: Internal
    • Headphone Audio Output:
      • 3.5 mm stereo jack with mono output for headphones, earphones, or neckloop
      • 27 mW maximum @33O mono
      • Internal Speaker (disabled when headphone jack in use)
    • Controls: Power, Volume +/-, Channel +/-, Setup, Battery Type
    • Display: LCD shows status: Battery Level, RSSI, Group/Channel#
    • Indicators:
      • Red LED - blinks when charging
      • Green LED - stays on when charged
    • Docking Connector: 30-pin iPod Style for charging and audio out
    • Compatible Transmitter: DLT 300 only
    • Temp. Range: 32° – 122°F  (0° to 50°C)
    • Optional Chargers: 2-bay CHG 102, 12-bay CHG 1012, TFP 045
    • Accessories: Silicone Skin, Lanyard, Wrist Strap
    • Approvals: FCC, Industry Canada, RoHS, CE, WEEE, RCM
    • Warranty: 2 years parts and labor (90 days on accessories)
  • dlr 360 Specifications:
    • Dimensions (WxHxD): 4.07" x 2.43" x 0.44" (103.3 x 61.8 x 11.3 mm)
    • Weight: 2.9 oz (82 g)  including battery
    • Color: Black/Silver (Front/Back)
    • Case Material: Black ABS plastic
    • Battery type: Lithium Polymer with smart charge built into transceiver; 2000 mAH
    • Battery life: Up to 14 hrs talk time per charge Current consumption range: 39 mA @ idle to 94 mA w/1 Ch Tx and 3 Ch Rx
    • Power Save: Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
    • Charge time: 5 hrs. TFP 045 with cable and international adapters
    • Optional Chargers: 2-bay CHG 102, 12-bay CHG 1012, TFP 045
    • Simultaneous Channels/Groups/Talkers: Up to 15 simultaneous channels (0-14) (Interpretation mode) Up to 4 simultaneous groups (2 way mode) Up to 4 simultaneous talkers per group (2-way mode) Up to 6 simultaneous talkers per group (2-way Intercom mode)
    • Operating frequencies: 2.4 GHz (ISM band);  2402 – 2476 MHz FHSS
    • Audio Frequency response (-3dB Knee Level):
      • Conference Mode, Interpreter Mode:  140 – 11.5 KHz
      • Intercom Mode:  140 – 7.6 KHz
    • SNR: 74 dB (A-weighted, Maximum output)
    • THD: 0.33 %
    • Microphone input: Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (tip/sleeve) with electret microphone bias, adjustable gain with 63dB range.
    • Headphone output: 3.5 mm phone jack; 33 O load
    • Audio output: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Internal speaker (disabled when haedphone jack in use) <20mW @ 10% THD/RL = 33O
    • Range: Up to 750 ft (depending upon environmental conditions)
    • Modulation: FSK
    • RF output: 14 dBm Typical
    • Security: 87 bit encryption, Secure Key Code, Setup Lock (SLOC)
    • Controls: Front panel push buttons for volume up/down, group select, menu access and selection, timer, time, MIC on/off, power on/off, tone control SLOC access and Secure Key access. System reset button (rear panel)
    • Outputs: 3.5 mm stereo/mono headphone jack; 30 pin charging jack with audio out to base stations
    • Side tone: -12 dB below volume, tone variation  [ST:0 = Off, ST:1 = -6 dB, ST:2 = -12 dB]
    • Indicators: LCD (Group, channel, volume level, battery status, mode, number of people with talk button on)
    • LED’s: (charge status) Red LED around talk button when enabled.
    • Docking Connector: 30-pin Connector for charging and audio in/out
    • Compatible Receiver: DLR 360 only
    • Approvals: FCC, Industry Canada, CE, RoHS, WEEE, RCM
    • Warranty: 2 years parts and labor (90 days on accessories); 6 months on internal battery
  • ear 022 Specifications:
    • Style: Around-ear speaker
    • Plug: 3.5mm mono
    • Cord: 39"
    • Driver Size: 23 mm
    • Nominal Impedance: 32O
    • Freq. Response: 20 - 20kHz
    • Weight: 15g
    • Max Power Input: 30 mW
    • Sensitivity: 118 dB @ 1kHz
  • mic 044 2p Specifications:
    • Color: Black
    • Weight: 0.19 lbs
    • Plug: 2 x 3.5 mm
    • Cord: 39"
    • Phantom Powered: No
    • Nominal Impedance: 32 O
    • Freq. Response: 150 - 18 kHz
    • Pick-Up Pattern: Cardiod
    • Element: Electret Condenser
    • Earphone Sensitivity: 105 dB @ 1 kHz
    • Replacement Windscreen: WND 008
    • Replacement Earpad: EAR 035
    • Warranty: 90 days
  • mic 054 Specifications:
    • Color: Black
    • Weight: 20 g (0.7 oz)
    • Plug: 3.5 mm mono
    • Cord: 39"
    • Phantom Powered: No
    • Impedance: 600 O
    • Operating Voltage: 1 - 10 VDC
    • Frequency Response: 80 Hz - 18 kHz
    • Pick-Up Pattern: Uni-directional
    • Element: Electret condenser
    • Sensitivity: -68 dB ± 4 dB
    • Signal to Noise Ratio: >60 dB
    • Replacement Windscreen: WND 002
    • Replacement Lapel Clip: CLP 090
    • Approvals: WEEE, RoHS
    • Warranty: 90 days
