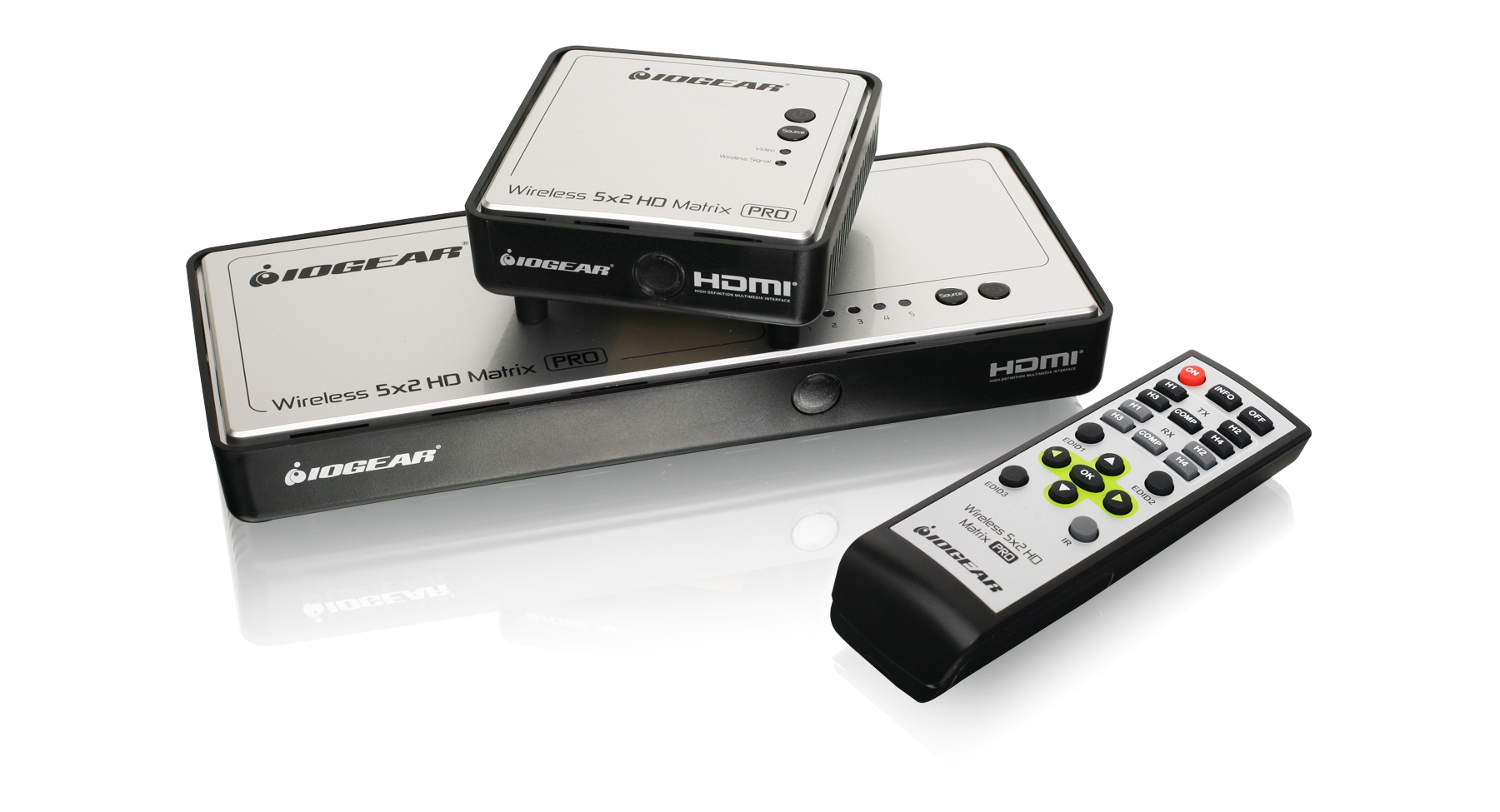

IOGEAR GWHDMS52MB [RESTOCK ITEM]
Long Range Wireless 5x2 HDMI Matrix PRO

OUR PART #:  GWHDMS52MB-RST-01

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned.
Learn More
Sale Price: $588.25
List Price: $699.95
You save 16%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

IOGEAR GWHDMS52MB [RESTOCK ITEM]
Qty:
In Stock

Similar Products

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

The IOGEAR GWHDMS52MB Long Range Wireless 5x2 HDMI Matrix Pro simultaneously transmits HD content wirelessly to four displays while viewing different HD content on a fifth local display. IOGEAR's Long Range Wireless 5x2 HDMI Matrix PRO with Multicast is the first of its kind to wirelessly send uncompressed Full HD 1080p with support for 3D content up to an astonishing 200 feet, including the ability of multicasting up to a total of 4 wireless HDMI receivers.

Wireless Matrix:
The Long Range Wireless 5x2 HDMI Matrix PRO is setting a new standard in wireless connectivity, flexibility, convenience and decor. Natively, the kit consists of a Transmitter with connections for HDMI and Component (5-port switch / matrix) and a Wireless Receiver. It also provides a loop through (local port) on the transmitter for an advanced 2 HDTV set up. The wireless matrix feature allows a user to switch and independently select any of the 5 sources between 2 HDTVs, creating 2 completely different video zones, making this one of the biggest breakthroughs in wireless A/V solutions available today.

Commercial and Home Applications:
IOGEAR's Long Range Wireless 5 x 2 HDMI Matrix PRO is an easy, affordable and reliable wireless A/V solution for any place that requires a multi-display installation. This HD wireless matrix is ideal within the home, retail environments, lobbies, offices, commercial settings, schools or classrooms, houses of worship, and in entertainment venues. Other applications include any retrofitting projects where demolition or running wires is not an option or becomes too expensive. When you are at home, you can watch cable TV in the living room while the bedroom independently selects a Blu-ray® movie to watch wirelessly at the same time.

Requirements:

  • Displays: HDMI HDTV or HD Projector
  • Media Source: 1 HDMI Output or 1 Component Output*
  • Multicast: Additional Wireless HDMI Receivers soldseparately - Part# GWHDRX01
  • Cables:
    • HDMI Cables (1 included)
    • Component Cable (not included)
    • RCA Audio Cable (L&R, not included)
  • *Only 1 Component Input available on the Transmitter

IOGEAR GWHDMS52MB Includes:

  • 1 x Wireless HDMI Transmitter
  • 1 x Wireless HDMI Receiver
  • 2 x Remote Controls
  • 1 x Component Adapter Cable
  • 1 x IR Blaster Cable (Transmitter)
  • 1 x IR Sensor Extender Cable (Receiver)
  • 2 x Power Adapters
  • 1 x HDMI Cable
  • 4 x AAA Batteries
  • 1 x User Manual
  • 1 x Warranty Card

IOGEAR GWHDMS52MB Features:

  • Long Range Wireless 5x2 HDMI Matrix PRO with Multicast
  • Wireless uncompressed Full HD 1080p video up to 200feet through standard home walls
  • Built in 5x2 Matrix - Allows you to switch andindependently select any of 5 sources between 2 HDTVs
    • Location 1: HDTV can connect to transmitter's loop-through (local) port
    • Location 2: HDTV can receive content from wireless receiver
  • Multicast up to 5 HDTVs – Send content up to 5locations at the same time (4 wireless)
  • Connect and wirelessly transmit content from a Blu-ray/ DVD players, DVR / cable boxes, game consoles, computers / laptops, mediastreaming devices such as Apple TV and media servers
  • Supports 3D content and 5.1 channel digital audio
  • Video Resolutions: 480p, 720p, 1080i and 1080p(24/30/60fps)
  • HDMI® Inputs / Outputs:
    • Wireless Transmitter:
      • 4 x HDMI In
      • 1 x Component In
      • 1 x HDMI Out (local port)
      • 1 x IR Out
    • Wireless Receiver
      • 1 x HDMI Out
      • 1 x IR In
  • Based on WHDI™ Technology
  • HDCP 2.0 Compliant
  • Built-in Infrared (IR) pass-through allows usercontrol over their source devices that are in a different location from thewireless receiver
  • No software or driver installation needed

IOGEAR GWHDMS52MB Specifications:

  • Distributor and Part #:
    • Ingram: UR6398
    • DH: GWHDMS52MB
    • Synnex: 5218686
    • ASI: 148956
  • SKU: ECCN
    • GWHDMS52MB: 5A992C
    • Function: GWHDMS52MB
  • Connectors:
    • Video Input: 4 x HDMI, 1 x Component
    • Video Output: 1 x HDMI Loop Through (Transmitter), 1 x HDMI (Receiver)
    • Power: 1 x Power Jack (Transmitter and Receiver)
  • Video Resolution: 480p, 576p, 720p, 1080i, 1080p(24/30/60fps) and 3D Support
  • Video Streaming: <1ms Latency
  • Audio:
    • Audio Output: Digital 6Mbps AC3 and DTS, Analog 48KHz and 24-bit per sample
    • Frequency: 4.9 ~ 5.9GHz (Includes non-DFS and DFS Frequency Bands)
    • Antenna Type: High Performance Internal
    • Range: Maximum video transmission range is 200ft (60m)
    • Power Switch: 1 x Push Button (Transmitter and Receiver)
  • LEDs:
    • Power On: Green / Red LED (Transmitter and Receiver)
    • Link: Green LED (Transmitter and Receiver)
    • Input: 5 x Green (Transmitter) 1 x Green (Receiver)
  • Power:
    • Voltage: 100~240v - 5V DC Jack (Transmitter), 5V DC mini USB (Receiver)
    • Amps: Transmitter: 2A, Receiver: 1.5A
  • Frequency: 3ft IR Extension Cable 38kHz, 47kHz &56kHz
  • Operating Temperature: 0° ~ 40°C
  • Housing:
    • Case: Plastic
  • Cable Connections:
    • Input: Receiver: 1 x IR Extension Input
    • Output: Transmitter: 1 x IR Output
  • Security: 128-Bit AES Encryption
  • Warranty: 1-Year
  • Dimensions:
    • Unit Dimensions (HxDxL): 1.25" x 3.88" x 9.50" (3.18 x 9.86 x 24.1cm)
    • Inner Pack (WxHxD): 11.25" x 9.38" x 10.75" (28.6 x 23.8 x 27.3cm)
      • Inner Pack Qty.: 3
    • Unit Package (WxHxD): 10.81" x 8.63" x 3.38" (27.5 x 21.9 x 8.59cm)
    • Master Carton (WxHxD): 19.88" x 21.81" x 21.81" (50.5 x 55.4 x x 31.0cm)
      • Master Carton Qty.: 12
  • Weight:
    • Master Carton Wt.: 43.95lb (19.94kg)
    • Inner Pack Wt.: 10.35lb (4.70kg)
    • Unit Pack Wt.: 3.20lb (1.46kg)
    • Unit Wt.: 1.15lb (0.52kg)
