West Penn 4246-SEG-75
75ft Segment of 23 Gauge, 8 conductor, CAT6 Cable

OUR PART #:  4246-SEG-75

NOTE: This is a 75ft Segment of 4246 Cable The West Penn 4246 is a 23 gauge, 8 conductor CAT6 cable is designed for indoor Category 5E applications like Ethernet...
Learn More
Selected Model Sale Price: $10.00
List Price: $33.00
Save up to 70%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 4246-SEG-75
Select a Model: (shipping times are approximate)
Qty:
Similar Products

NOTE: This is a 75ft Segment of 4246 Cable

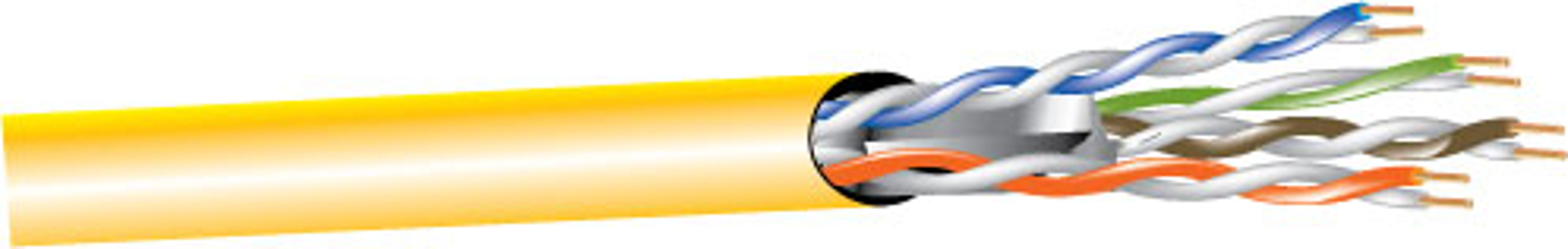

The West Penn 4246 is a 23 gauge, 8 conductor CAT6 cable is designed for indoor Category 5E applications like Ethernet, IP Cameras and Digital Integration. It meets or exceeds TIA/EIA 568B.2.1 Category 6 Specifications.

West Penn 4246 Specifications:

  • Conductor: 23 AWG Bare Copper
  • Stranding: Solid
  • Number of Conductors: 8 (4 pair)
  • Insulation: Thermoplastic - .008"
  • Core Separator: Yes
  • Jacket Material: PVC
  • Overall Cable Diameter: 0.225" Nom.
  • Approximate Cable Weight: 30lbs/1M' Nom.
  • Flame Rating: UL1666
  • Operating Temerature Rating: -4°F - 140°F
  • Operating Voltage Rating: 300V RMS
  • DC Resistance per Conductor @ 68°F: 7.8 Ohms/100m Nom.
  • Mutual Capacitance: 14pf/ft Nom.
  • Nominal Impedence: 100Ohms +/-15% (1-100Mhz)
  • Velocity of Propogation: 66% Nom.
  • Delay Skew: 25ns/100m Max
  • Standards: TIA/EIA568-B.2 1
  • Insulation Colors: 1. Blue/White-Blue, 2.Orange/White-Orange, 3. Green/White-Green, 4. Brown/White-Brown
  • Available Jacket Colors: Blue, Gray, Pink, White
  • RoHS Compliant: Yes

Click to download
