Belden 8760
99ft Segment of Paired - Audio, Control, and Instrument Cable, 18 AWG

OUR PART #:  8760-SEG-99

NOTE: This is a 99ft Segment of 8760 Cable The Belden 8760 is a 18 AWG stranded (16x30) tinned copper conductors, twisted pair, polyethylene insulation...
Learn More
Sale Price: $50.19
List Price: $87.12
You save 42%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Belden 8760
Qty:
In Stock
Similar Products

NOTE: This is a 99ft Segment of 8760 Cable

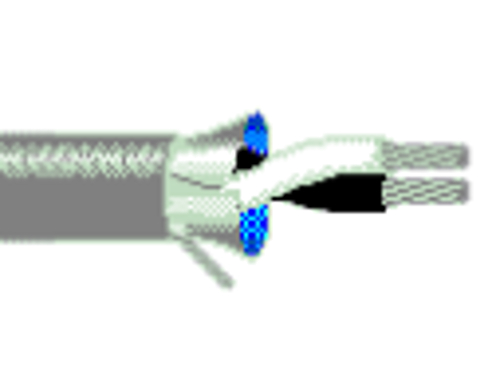

The Belden 8760 is a 18 AWG stranded (16x30) tinned copper conductors, twisted pair, polyethylene insulation, overall 100% Beldfoil® shield, 20 AWG stranded tinned copper drain wire, PVC jacket.

Belden 8760 Specifications:

  • Conductor Pairs: 1
  • Conductors: 2
  • AWG: 18
  • Stranding: 16 x 30
  • Conductor Material: TC - Tinned Copper
  • Insulation Material: PE - Polyethylene
  • Nom. Insulation Wall Thickness: 0.19"
  • Insulation Diameter: 0.56"
  • Lay Length: 1.5"
  • Twists / ft: 8
  • Outer Shield Material Trade Name: Beldfoil
  • Outer Shield Type: Tape
  • Outer Shield Material: Aluminum Foil-Polyester Tape w/ Shorting Fold
  • Outer Shield % Coverage: 100%
  • Outer Shield Drain Wire AWG: 20
  • Outer Shield Drain Wire Stranding: Stranded
  • Outer Shield Drain Wire Conductor Material: TC - Tinned Copper
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nominal Wall Thickness: 0.28"
  • Overall Nominal Diameter: 0.222"
  • Operating Temperature Range: -20º to 60º C
  • UL Temperature Rating: 60º C (UL AWM Style 2092)
  • Bulk Cable Weight: 26.6 lbs. (1000 ft.)
  • Max. Recommended Pulling Tension: 62 lbs.
  • Min. Bend Radius (Install): 2.25"
  • Nom. Characteristic Impedance: 60 ohm
  • Nom. Inductance: 0.18 microH/ft
  • Nom. Capacitance Conductor to Conductor @ 1 kHz: 24 pF/ft
  • Nom. Cap. Cond. to other Cond. & Shield @ 1 kHz: 44pF/ft
  • Nom. Conductor DC Resistance @ 20º C: 6.5 ohm / 1000 ft.
  • Max. Operating Voltage - UL: 300 V RMS (UL AWMStyle 2092)
  • Max. Recommended Current: 5.2 Amps per conductor @ 25º C
