Gepco VHD2001M
99ft Segment of Extra-Flexible RG6 HD Coax Cable, 75 ohm

OUR PART #:  VHD2001M-SEG-99

NOTE: This is a 99ft Segment of VHD2001M Cable This is an extra-flexible, low-loss coax from Gepco with a 3GHz bandwidth for uncompressed HDTV transmission.
Learn More
Selected Model Sale Price: $71.48
List Price: $125.73
Save up to 43%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Gepco VHD2001M
Select a Model: (shipping times are approximate)
Qty:
Similar Products

NOTE: This is a 99ft Segment of VHD2001M Cable

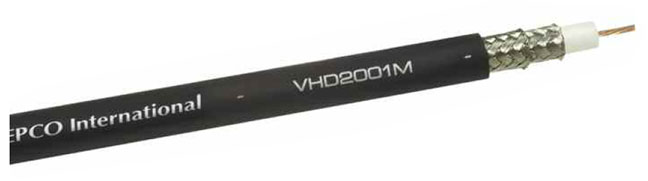

This is an extra-flexible, low-loss coax from Gepco with a 3GHz bandwidth for uncompressed HDTV transmission. The VHD2001M features a precision stranded center conductor, a unique double-braid shield, and a matte PVC jacket to achieve exceptional flexibility and flex-life without compromising the electrical performance required for HD video. For the insulating dielectric, VHD2001M features a crush-resistant, gas-injected polyethylene compound that reduces attenuation and extends the operating bandwidth. As with all other Gepco HD coax cables, every critical electrical and mechanical characteristic is manufactured to precision tolerances.

Applications:

  • High Definition Video
  • SDI Serial Digital Video
  • Digital Audio (AES3id or SPDIF)
  • High Resolution Analog Video
  • Portable Cables
  • Patchcords

Gepco VHD2001M Features:

  • Extra-flexible
  • 3GHz Bandwidth
  • Low Attenuation & Return Loss
  • Precision 75 ohm Impedance
  • Gas-injected, Foam Polyethylene Dielectric
  • Stranded Center Conductor
  • Double Braid Shield
  • 100% Sweep Tested
  • Matte PVC Flexible Jacket

Gepco VHD2001M Specifications:

  • # of Conductors: 1
  • Nominal OD: 0.275"
  • Conductor: 19AWG (19X32) Stranded BC (Compact)
  • Insulation (type, OD): Gas-injected foam PE, .182"
  • Shield: 95% TC Braid
  • Jacket Type: Flexible PVC
  • Jacket Colors: Black
  • Approx. Weight: 45 lbs/Mft
  • Impedance: 75 ohm (+/-2)
  • Return Loss (100kHz-1GHz),(1GHz-3GHz): >20dB, >15dB
  • Capacitance: 17 pF/ft
