West Penn 25224B-WP-SEG-99

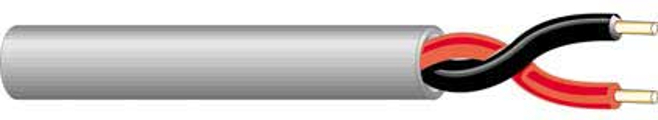

99ft Segment of 18Ga Extra Flexible 2 Conductor Cable

OUR PART #:

NOTE: This is a 99 ft Segment of 25224B Cable  18/2 Stranded bare copper conductors, unshielded with an overall jacket NEC RATING: CMP...
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

NOTE: This is a 99 ft Segment of 25224B Cable

18/2 Stranded bare copper conductors, unshielded with an overall jacket

  • NEC RATING: CMP, NEC Article 800
  • APPROVALS: (UL) C(UL) Listed or c(ETL)us Listed
  • APPLICATION: Indoor within ducts, plenums, and other spaces used for environmental air for (Intercom Systems, Security Systems, Sound, Audio, Background Music)

Construction Parameters:

  • Conductor 18 AWG Bare Copper
  • Stranding 7x26
  • Insulation Material Flex Plenum PVC
  • Insulation Thickness 0.008'' Nom.
  • Number of Conductors 2
  • Shield None
  • Drain None
  • Jacket Material Flex Plenum PVC
  • Jacket Thickness 0.015'' Nom.
  • Overall Cable Diameter 0.154'' Nom.
  • Approximate Cable Weight 17 Lbs/1M' Nom.
  • Flame Rating NFPA 262 Flame Test

Electrical & Environmental Properties:

  • Temperature Rating -10°C To +60°C
  • Operating Voltage 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz 30 pf/ft Nom.
  • DC Resistance per Conductor @ 20°C 6.2 Ohms/1M' Nom.
  • Insulation Colors Black, Red
  • Jacket Color Gray, Black, Brown, Orange, Green
  • White, Yellow
  • RoHS Compliant Yes

Mechanical Properties:

  • Max. Recommended Pull Tension 42 lbs
  • Min. Bend Radius (Install) 1.4”
