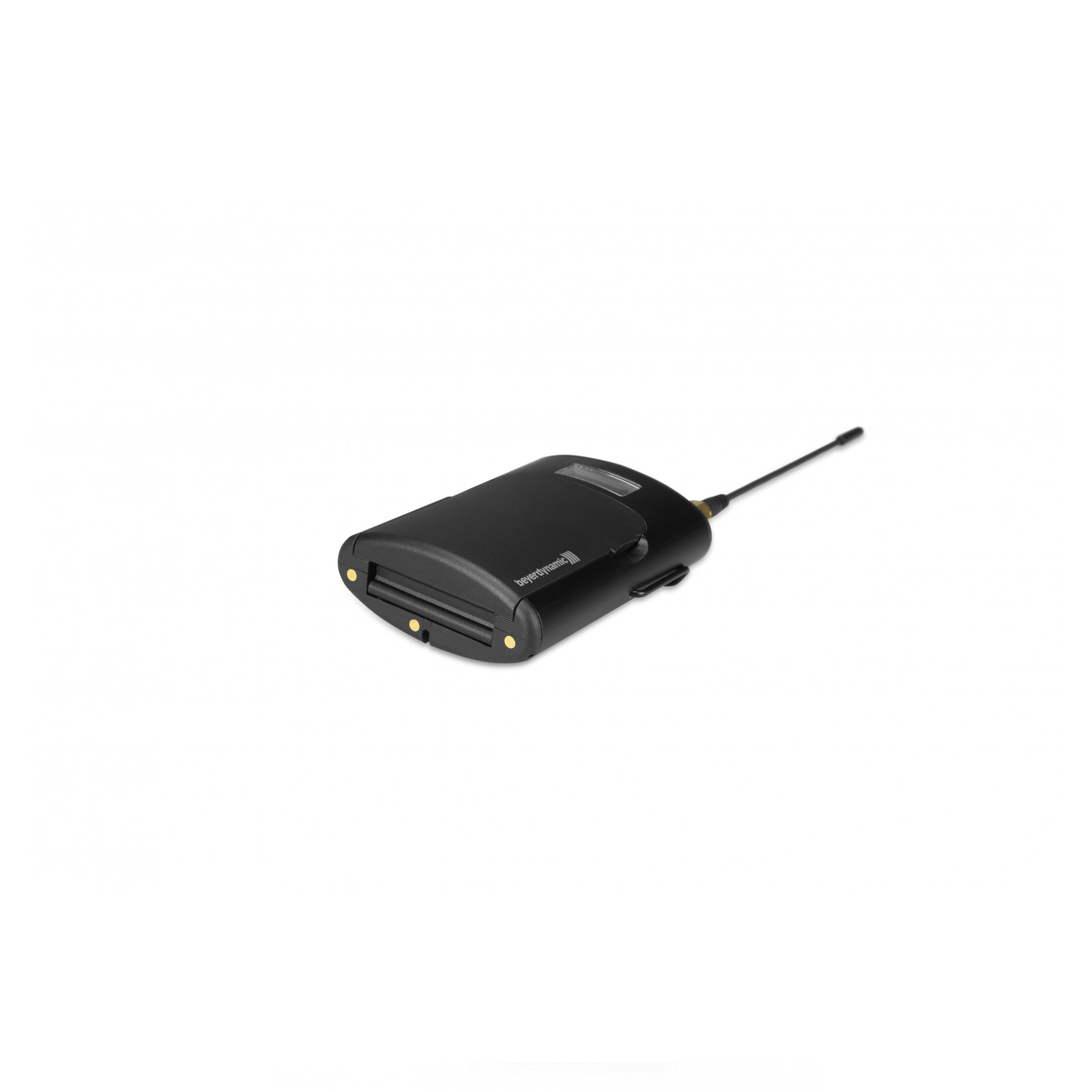

Beyerdynamic TG 1000
Beltpack Transmitter Only

OUR PART #:  TG1000-BP

The TG 1000 Beltpack Transmitter is part of Beyerdynamics' TG 1000 series. It requires a compatible microphone for functional use ( sold separately - see list below.
Learn More
Our Price: $799.00
List Price: $1,299.99
You save 39%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Beyerdynamic TG 1000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TG 1000 Beltpack Transmitter is part of Beyerdynamics' TG 1000 series. It requires a compatible microphone for functional use (sold separately - see list below. Contact your Sales Pro for more information).

Beyerdynamics TG 1000 System
Beyerdynamic's first 24-bit digital wireless system, it covers an impressive 319 MHz of the UHF bandwidth (470–789 MHz. NOTE: bandwidth is subdivided by region - contact your Sales Pro for more information). With these 2 features alone, the TG 1000 system is hugely versatile, and can be competently and reliably used in a wide variety of venues worldwide. This combination, along with its wealth of user-friendly features designed to enhance your performance should make the TG 1000 your go-to wireless system regardless of application and/or location.

Compatible Beyerdynamic Microphones (all sold separately):

  • TG L58c
  • TG H54c
  • TG H74c
  • TG H75c

Beyerdynamic TG 1000 Beltpack Transmitter Features:

  • Compact shape and transmitter lock functionality
  • 319 MHz total bandwidth compatibility (Note: subdivided by region - contact your Sales Pro for more information)
  • 24-bit digital transmission with gain ranging
  • Line of sight range up to 300 meters
  • Anodized aluminium housing
  • OLED display
  • 2.1 ms total latency
  • Synchronization of receiver and transmitter below one second
  • SYNC function for automatic frequency setting
  • Switchable input sensitivity (12 dB attenuation)
  • 4-pin mini XLR connector (male) for microphones (TG version) or instruments
  • Removable antennas with SMA connector
  • Removable belt clips for horizontal & vertical mounting
  • Powered by 2 x AA batteries or NiMH rechargeable batteries (sold separately)
  • Charging contacts for WA-CD charging device (sold separately)

Beyerdynamic TG 1000 Beltpack Transmitter Specifications:

  • Operating principle: Digital UHF beltpack transmitter
  • Frequency response: 20 – 20,000 Hz
  • Antenna connection: SMA
  • Encryption & Audio CODEC:
    • Switchable, proprietary encryption scheme based upon a 16-bit pattern; "Triple-Play" CODEC with low latency and high error resilience
  • Transmitter power: 10 mW ("RF Power Standard")/50 mW ("RF Power High")
  • Dynamic range: 116 dB (A-weighted); +12 dB Pad = 128 dB
  • Display: OLED
  • Transmission range: Up to 300 meters under optimal conditions (line of sight)
  • Operating time: Approx. 8 hrs.
  • Input level: Max. + 18 dBu
  • Weight: 0.225 lbs (102 g) without batteries
  • Dimensions: approx. 3.7" x 2.3" x 1.02" (94 x 59 x 26mm)
  • Pin assignment of 4-pin XLR connector:
    • Pin 1 = ground
    • Pin 2 = 5 V bias
    • Pin 3 = Audio
    • Pin 4 = active load
