NEC Visual Systems NP-PA571W
5700 Lumen WXGA LCD Installation Projector

OUR PART #:  NP-PA571W

NEC NP-PA571W - Rear View

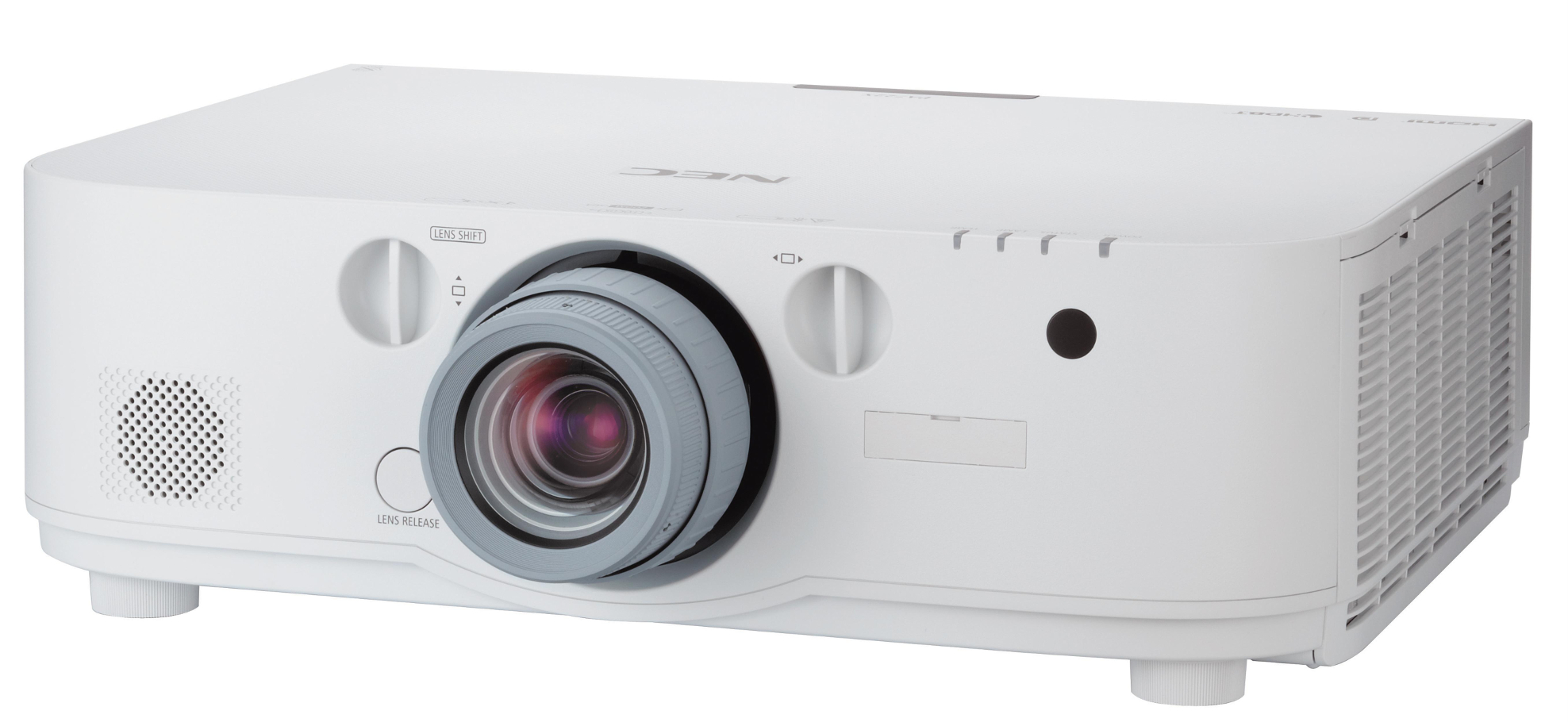

NEC NP-PA571W - Front View

Click a thumbnail to see more images. (8 total)

Our Price: $3,409.00
List Price: $3,899.00
You save 13%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

NEC Visual Systems NP-PA571W
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This member of the NEC multimedia offerings is the PA571W which is a 5700-lumen widescreen advanced professional installation model that appeases corporate and higher education users. With integrated RJ45, optional high-speed wireless (LAN IEEE 80.11b/g/n) and a multitude of simple-to-use asset management technologies, the PA571W helps users present seamlessly without worrying about their technology. You'll also appreciate the design and installation flexibility with a complete line of optional bayonet style lenses, tilt-free and portrait installation capabilities along with horizontal/vertical lens shift.

NEC NP-PA571W Includes:

  • Remote control
  • Batteries
  • Power cord
  • Built-in Lens cover
  • User manual
  • Quick Start Guide
  • Product registration card
  • Lens anti-theft screw

NEC NP-PA571W Features:

  • TileMatrix enables 4Kx2K resolution utilizing 4 projectors via external distribution amplifier
  • Multi-display support with Picture by Picture/Picture Out Picture
  • High performance video processing/scaling creates life-like images
  • Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon and PJ link allow for complete interactivity and control
  • 5700-lumen brightness enhances images for most applications
  • Automatic keystone correction
  • Optional Wireless LAN
  • Active Lens Cover
  • USB Viewer
  • Cornerstone
  • Geometric Correction
  • 4000 hour Filter Life
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense

NEC NP-PA571W Specifications:

  • Optical:
    • Display Technology: 0.75" LCD w/ MLA
    • Light Output(Lumens): 5700 normal
  • Resolution:
    • Native: WXGA 1280 x 800
    • Maximum: 4K 4096 x 2160
    • Contrast Ratio (up to): 5000:1 with auto iris
    • Lamp Type: 330W AC
    • Lamp Life (up to): 3000 hours normal / 4000 hours eco
    • Screen Size (diagonal): 40 to 500 in. / 1.02 to 12.7m
    • Throw Ratio: 1.5 to 3.02
    • Projection Distance: 2.5 to 68.5 ft. / 0.74 to 20.9m
    • Projector Angle: 10.3 to 10.8° tele / 13.7 to 14.5° wide
  • Lens:
    • Zoom: 1 to 2.01
    • Focus: Manual
    • F number, fnumber: F=1.7 to 2.37, f=24.4 to 48.6mm
    • Shift: Mechanical -0.1 to +0.6 vertical, +/-0.3 horizontal
  • Keystone Correction: +/- 40° horizontal, +/- 40° vertical

Signal Compatibility/Connectivity:

  • Synchronization Range:
    • Horizontal (Analog/Digital): Analog: 15-100kHz, Digital: 15-153kHz
    • Vertical (Analog/Digital): Analog: 48-120Hz, Digital: 24-120Hz
  • Supported Video Standards: NTSC, NTSC4.43, PAL,PAL-60, PAL-M, PAL-N, SECAM
  • SD/HD Video Signal Compatibility: 480i, 480p, 576i,576p, 720p, 1080i, 1080p
  • PC Signal Compatibility: VGA, SVGA, XGA, SXGA, SXGA+,UXGA, WUXGA, WQXGA, 4K
  • Macintosh Compatibility: Yes
  • Input/Output Terminals:
    • RGB1(analog): VGA 15-pin D-sub
    • RGB2(analog): 5-BNC
    • RGB3(digital): HDMI w/HDCP
    • RGB4(digital): HDMI w/HDCP
    • RGB5(digital): DisplayPort w/HDCP
    • Audio 1: Mini stereo
    • Audio 2: Mini stereo
    • Monitor out: HDMI
    • Audio out: 1/8 in. stereo (Variable audio out)
  • Audio: 10W mono
  • External Control: RS-232, IR, DDC/CI, USB
  • Sync Compatiblity: Separate Sync / Composite Sync / Sync on G

Electrical:

  • Power Requirements: 100-240V AC, 50/60 Hz
  • Input Current: 5.1-2.1A
  • Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving): 463W /377W / 4.7W / 0.11W

Mechanical:

  • Optional Lenses: NP11FL, NP12ZL, NP13ZL, NP14ZL,NP15ZL, NP30ZL
  • Installation Orientation: Floor/Front, Floor/Rear,Ceiling/Front, Ceiling/Rear
  • Dimensions (WxDxH): 19.7 x 14.4 x 6.5 in. / 499 x 366x 164mm
  • Net Weight: 18.5 lbs. / 8.4 kg
  • Fan Noise: 39 dB normal / 33 dB eco
  • Regulations: USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM

Environmental:

  • Operating Temperature: 41-104°F / 5-40°C
  • Humidity: 20-80% non-condensing
  • Storage: -14-122°F / -10-50°C

Limited Warranty:

  • 3 years.: Lamp warranty is 1 year or 500 hours, whichever comes first.
