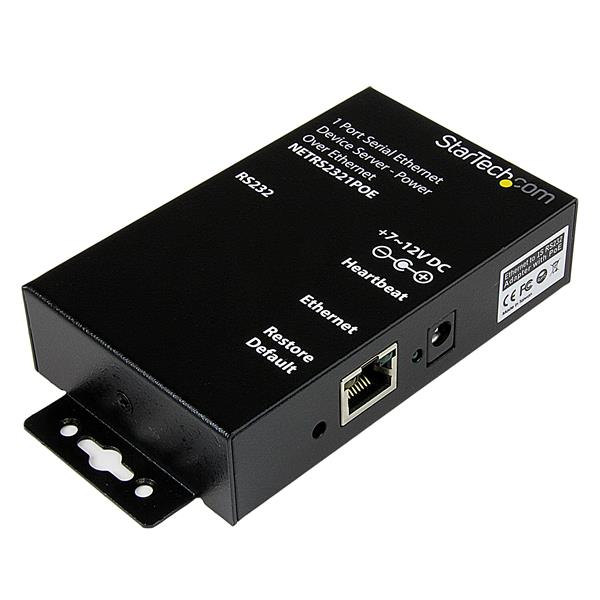

StarTech RS2321POE
1 Port RS232 Serial Ethernet Device Server POE

OUR PART #:  RS2321POE

The StarTech RS2321POE Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet WAN/LAN...
Learn More
Our Price: $136.56
List Price: $142.99
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

StarTech RS2321POE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The StarTech RS2321POE Serial Ethernet Device Server - PoE (Power Over Ethernet) allows you to install your RS232 devices anywhere on your TCP/IP Ethernet WAN/LAN, and access them as if they were right beside you - even over the Internet.

The Serial Device Server is designed to function seamlessly with your other integrated and add-on serial ports as if they were right inside your computer. Perfect for industrial automation, security, Point of Sale, or any long-range serial application, delivering reliable performance in any environment.

The Ethernet/serial device server supports PoE (Power over Ethernet) when connected to a PoE compliant device - eliminating the need for an external power supply and outlet, and making it easier to situate the device server as needed.

StarTech RS2321POE Includes:

  • Industrial Serial over IP Device Server
  • Universal Power Adapter (NA/UK/EU)
  • Driver CD
  • Instruction Manual

StarTech RS2321POE Features:

  • Supports standard Ethernet or Power over Ethernet (POE)
  • Supports UDP, IP, TCP, ICMP, HTTP, DHCP and ARP-Ping protocols
  • Wall mountable
  • Integrated 10/100Mbps RJ45 LAN port
  • Data transfer rates of up to 115.2 Kbps per port
  • Supports Auto Crossover (MDI/MDI-X)
  • Support for Windows® 2000, XP 32bit, and Vista 32bit

StarTech RS2321POE Specifications:

  • Warranty: 2 Years
  • Hardware: IEEE 802.3af Power-over-Ethernet
  • Performance:
    • Data Bits: 6, 7, 8
    • Maximum Data Transfer Rate: 115.2Kbps
    • MTBF: 233,403 Hours
    • Stop Bits: 1, 2
    • Supported Protocols: UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping
  • Connector Type(s):
    • 1 - DB-9 (9 pin, D-Sub) Male
    • 1 - RJ-45 Female
  • OS Compatibility: Windows® Vista (32), XP (32), 2000
  • Patents and Licenses: The following patents are licensed for this product. This list might not be all inclusive.
    • United States Patent No. 5,406,260 (expired)
    • United States Patent No. 6,650,622
    • United States Patent No. 7,457,250
    • United States Patent No. 8,155,012
    • United States Patent No. 8,902,760
    • United States Patent No. 8,942,107
    • United States Patent No. 9,019,838
    • United States Patent No. 9,049,019
    • United States Patent Application No. 14/695,456
    • United States Patent Application No. 14/726,940
  • LED Indicators: 3 - Heartbeat, Link/Activity, 10/100 Mbps
  • Power:
    • Center Tip Polarity: Positive
    • Input Current: 0.3 A
    • Input Voltage: 110V-240V AC
    • Output Current: 0.1A
    • Output Voltage: 12 DC
    • Plug Type: M
    • Power Consumption (In Watts): 1.2
    • Power Source: AC Adapter Included
  • Environmental:
    • Humidity: 5~95% RH
    • Operating Temperature: 32°F to 131°F (0°C to 55°C)
    • Storage Temperature: -4°F to 185°F (-20°C to 85°C)
  • Physical Characteristics:
    • Color: Black
    • Enclosure Type: Aluminum
    • Dimensions (HxLxW): 1" x 4.2" x 2.6" (25.4 x 107 x 66.3 mm)
    • Product Weight: 16.9 oz (480 g)
    • Shipping (Package) Weight: 1.9 lb (0.9 kg)
