Elmo 1355
P10HD Visual Presenter Document Camera

OUR PART #:  1355

The Elmo 1355 P10HD Visual Presenter has a full HD camera and HDMI output to make the P10HD is the most interactive...
Learn More
Elmo P10HD Visual Presenter Buttons
Elmo P10HD Visual Presenter Inputs
Elmo P10HD Visual Presenter Light

Click a thumbnail to see more images. (7 total)

Our Price: $1,691.00
List Price: $1,990.00
You save 15%!
Write the first review.
Elmo 1355
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

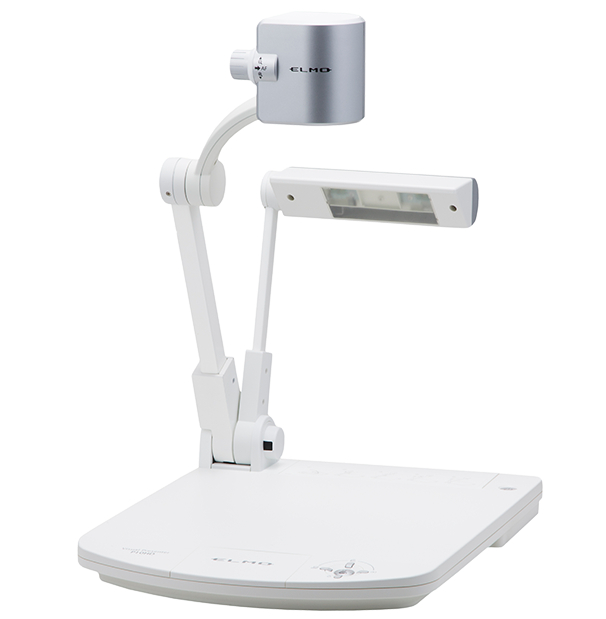

The Elmo 1355 P10HD Visual Presenter has a full HD camera and HDMI output to make the P10HD is the most interactive, full featured and yet cost effective platform document camera on the market. Engage audiences in stunning high definition and watch information retention soar.

Elmo P10HD Includes:

  • AC Adapter
  • Power cord
  • RGB cable
  • USB cable
  • IR remote control
  • Strap (for remote control)
  • AAA batteries (for remote control)
  • Slide shooting adapter
  • Warranty card
  • Image Mate CD-ROM
  • Image Mate installation manual
  • Instruction manual (CD-ROM)
  • Important safe guards

Elmo P10HD Features:

  • Full HD picture
  • Clean, white platform for a clear view of your material
  • 128x zoom + flexibility: P10HD is equipped with 16x optical and 8x digital zoom, giving you the ability to see parts the human eye cannot
  • Easy to use controls
  • LED light
  • USB/SD storage

Elmo P10HD Specifications:

  • Camera:
    • Image pick-up device: 1/2.8" CMOS, 3,400,000 pixels
    • Total pixels: 2144(H) x 1588 (V)
    • Image pick-up device: 1920 (H) x 1536 (V)
    • Effective pixels: 1/2.8" CMOS, 3,400,000 pixels
    • Frame rate: 30 frames/sec.
    • Resolution - RGB output: 800 (H) x 800 (V) TV lines
  • Optics:
    • Zoom: Powered, 16x optical
    • Lens: F2.7, f=4.9 mm to 78.4 mm
    • Shooting area:
      • 1080p: Max. 400x223mm Min.27x15mm
      • 720p: Max. 400x223mm Min.27x15mm
      • SXGA: Max. 400x320mm Min.27x22mm
      • WXGA: Max. 400x248mm Min.27x17mm
      • XGA: Max. 400x299mm Min.27x20mm
    • Focus: Auto/Manual/Zoom Sync
  • Functions:
    • White balance: Auto/One-Push/Manual
    • Image mode: Text 1, Text 2, Text 3, Graphics1, Graphics2l
    • Edge enhancement: Provided (only for Graphics1 mode)
    • Still Image storage: Provided
    • Movie storage: Provided
    • Digital zoom: 8x
    • Gamma adjustment: Provided (only for Graphics1 mode)
    • Image save: SD memory card/SDHC memory card/USB memory
    • State presetting: Up to 3 user settings
    • Support function: Highlight, Mask, Scroll(in digital zoom), Mosaic, Split screen, PinP(Picture-in-Picture), Color filter, Pause, Image rotation, Positive/Negative conversion, Color/B&W selection
  • Interface
    • Input selection: Main/External
    • Output terminal:
      • RGB output mini D-sub 15P connector, femalex1
      • HDMI output terminal x1
      • Line Out terminal F3.5mmstereo minijack x1
    • Input terminal:
      • RGB input mini D-sub 15P connector, female x1
      • Mic In/Line Our terminal (shared), 3.5mm-diameter stereo jack x1
      • USB device (2.0 compliant) Mini-B receptacle x1
    • Analog RGB output:
      • 1080P: 1920x1080@60Hz
      • 720P: 1920x1080@60Hz
      • SXGA: 1280 x 1024 @60Hz
      • WXGA: 1280 x 800 @60Hz)
      • XGA: 1024 x 768 @60Hz
    • HDMI output:
      • Image output: 1080p/720p
      • Audio output: PCM44.1kHz sampling frequency
    • Memory Interface: SD memory card slot x1, USB host(2.0 compliant) Type A receptacle x1
  • Others:
    • Power source: 12V DC (AC adapter AC100 - 240V)
    • Dimensions (WxDxH):
      • Set up: 14 5/8" x 19" x 21 5/8" (376 x 482 x 549 mm)
      • Folded: 14 5/8" x 19" x 7 1/8" (376 x 482 x 181 mm)
    • Weight: Approx. 10.1 lbs (4.6 kg)
