Blonder-Tongue RMDA860-43P
43db Passive Distribution Amplifier

OUR PART #:  RMDA860-43P

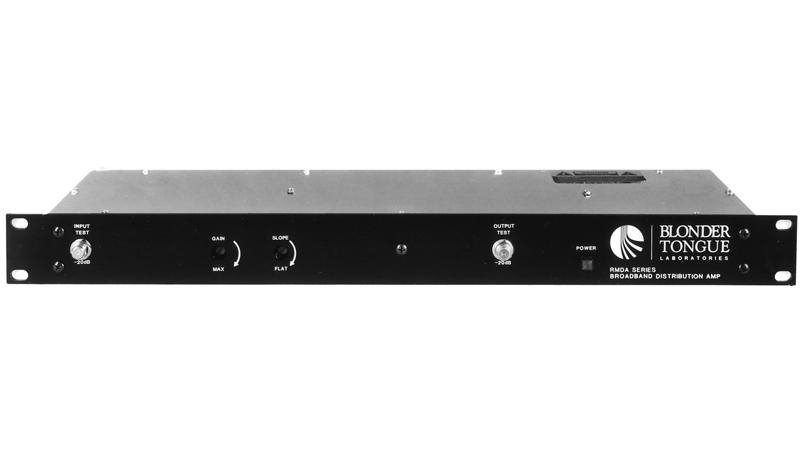

The Blonder-Tongue RMDA 860-43P is a professional quality, broadband, rack-mounted hybrid distribution amplifier.
Learn More
Our Price: $882.00
List Price: $919.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blonder-Tongue RMDA860-43P
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Blonder-Tongue RMDA 860-43P is a professional quality, broadband, rack-mounted hybrid distribution amplifier. The RMDA amplifiers are ideal as a headend launch amplifier or distribution amplifier for MATV, SMATV or CATV applications requiring rack mounting.

The RMDA Series amplifiers have built-in variable gain and slope controls. They are housed in a single height, 1.75" high, rack-mountable, aluminum chassis that provides exceptional heat dissipation.

Blonder-Tongue RMDA 860-43P Features:

  • Rack Mount - 1 EIA (1.75") spacing, rugged aluminum chassis
  • Built-in variable gain and slope controls

Blonder-Tongue RMDA 860-43P Specifications:

  • General:
    • Power requirements:
      • Voltage: 100-240 VAC
      • Frequency: 50/60 Hz
    • Current: 0.4 amps
    • Temerature range: -20° - 60°C
  • Mechanical:
    • Dimensions (WxHxD): 19" x 1.75" x 5.13" (483 x 44 x 130 mm)
    • Weight: 800 lbs (3.46 kg)
  • Indicators:
    • Power on: Red LED
  • Connectors:
    • RF Input: "F", Female - Rear Panel
    • RF Output: "F", Female - Rear Panel
    • Input Test Port: "F", Female - Front Panel
    • Output Test Port: "F", Female - Front Panel
  • Controls:
    • Gain: Var. control
    • Slope: Var. control
