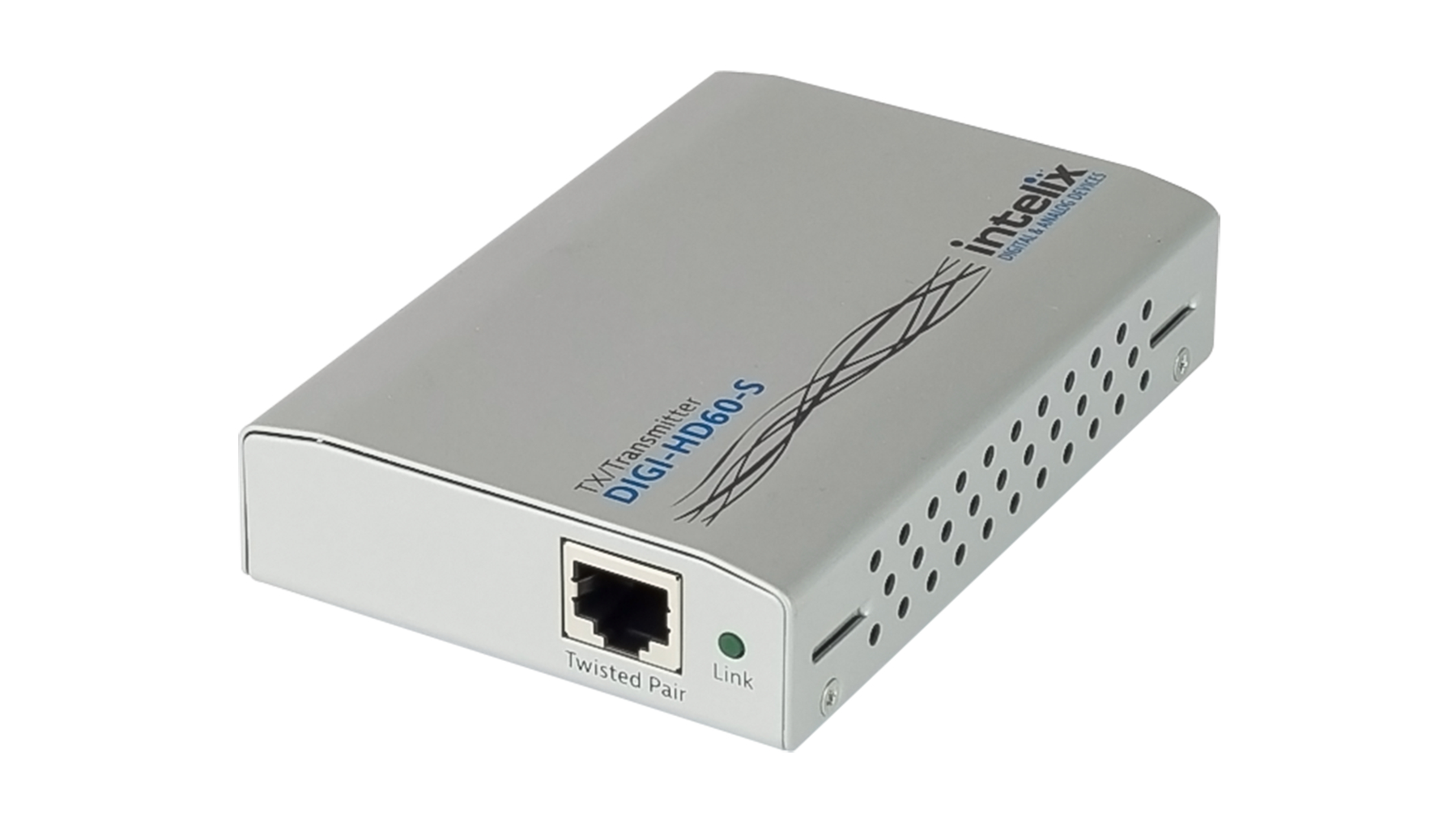

Intelix DIGI-HD60-S
HDBaseT HDMI Over Twisted Pair Transmitter


The Intelix DIGI-HD60-S provides for the extension of HDMI over a single cable by employing HDBaseT technology.
Learn More
Our Price: $284.36
List Price: $315.95
You save 10%!
Write the first review.
Intelix DIGI-HD60-S
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Intelix DIGI-HD60-S provides for the extension of HDMI over a single cable by employing HDBaseT technology. The DIGI-HD60-S includes support for a 1080p video signal, including HDCP 2.2 and multichannel audio, up to 60m, as well as 3D and 4K x 2K (UHD) signals up to 35m. Its onboard surge protection and diagnostic LEDs ensure installations that are hassle-free and robust. The flexible power design on these units allows them to be powered at either the TX or RX end via PoE (Power over Ethernet), with only one power supply necessary. The power supply, Intelix's PS-24D-25, is sold separately.

The DIGI-HD60 series extenders are compatible with all Intelix HDBaseT product offerings and any product that meets the HDBaseT specifications.


  • Extension of HDMI signals up to 60 meters
  • Limited access to power for extenders on both ends
  • Ideal for digital signage, home theater, commercial video systems

Intelix DIGI-HD60-S Features and Benefits:

  • HDMI transmission up to 60m (195 ft)
  • Supports 3D, 4K x 2K (UHD), and audio formats up to 7.1 audio
  • Supports HDBaseT, CEC specifications; HDMI and HDCP 2.2 compliant
  • Built-in surge protection, diagnostic LEDs
  • PoE (Power over Ethernet) - power from RX (Power Supply sold separately) when used with DIGI-HD60-R (sold separately
  • Locking Power Connector

Intelix DIGI-HD60-S Specifications:

Input/Output Connections:

  • HDMI: One (1) HDMI Type A Receptacle
  • Twisted Pair: One (1) 8P8C port (Shielded RJ45)
  • 24V DC Power: One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking)

Supported Audio and Video:

  • Maximum Video Compatibility at 60 m: Deep Color 36/30/24 Bit at 1080p
  • Maximum Video Compatibility at 35 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD) up to 30 Hz: RGB, YCbCr 4:4:4, YCbCr 4:2:2; up to 60 Hz: YCbCr 4:2:0
  • Supported 3D Formats: Field Alternative (interlaced), Frame Packing, Line Alternative Full, Side-By-Side Half, Side-By-Side Full, 2D + Depth, 2D + Depth + Graphics + Depth
  • Video Compliance: HDMI, HDCP 2.2, and CEC (Consumer Electronics Control)
  • Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
  • Input DDC Signal: 5.0 volts p-p (TTL)
  • Input Video Signal: 0.5 to 1.0 volts p-p

HDBaseT Signal Characteristics:

  • Maximum Distance: 60 m
  • Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/EIA-568B crimp pattern
  • Bandwidth: 10.2 Gbps
  • Gain: 0 dB – 10 dB at 100 MHz
  • Signal to Noise Ratio (SNR): > 70 dB at 100 MHz over 100 m
  • Return Loss: < -30 dB at 5 KHz
  • Total Harmonic Distortion (THD): < 0.005% at 1 KHz
  • Min-Max Signal Level: < 0.3 V – 1.45 Vp-p
  • Differential Phase Error: ±10° at 135 MHz over 100 m

Chassis and Environmental:

  • Enclosure: Painted steel
  • Dimensions: 4.33" x 2.99" x 0.95" (110 x 76 x 24mm)
  • Shipping Weight: 1.1 lbs (0.5 kg)
  • Operating Temperature (Environment): +32° to +104° F (0° to +40° C)
  • Operating Temperature (Chassis): 88° F (31° C)
  • Operating Humidity (Environment): 20% to 90%, Non-condensing
  • Storage Temperature (Environment): +14° to +140° F (-10° to +60° C)
  • Storage Humidity (Environment): 20% to 90%, Non-condensing

Power, ESD, and Regulatory:

  • PoE Standard (Twisted Pair [HDBaseT] port) to extender: 802.3af
  • Maximum Power Consumption: 8 watts
  • Power Supply (sold separately): 24V DC / 1.5 Amp
  • ESD Protection: 15kV
  • Regulatory: CE, RoHS


  • Standard Warranty: 2 years
  • Diagnostic Indicators: Link and power LEDs
  • Included Accessories: Installation Guide
  • Compatible Transmitters (AV only): FLX-BO4A, DIGI-44B, DIGI-88B, DIGI-P123
  • Compatible Transmitters (AV and PoE): DIGI-HD60-S, DIGI-HDX-S, ASW-WP, FLX-44, DIGI-P52

Accessories (sold separately):

  • Power Supply: PS-24D-25
  • Universal Mounting Bracket: DIGI-PMK1

Note: Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches.
