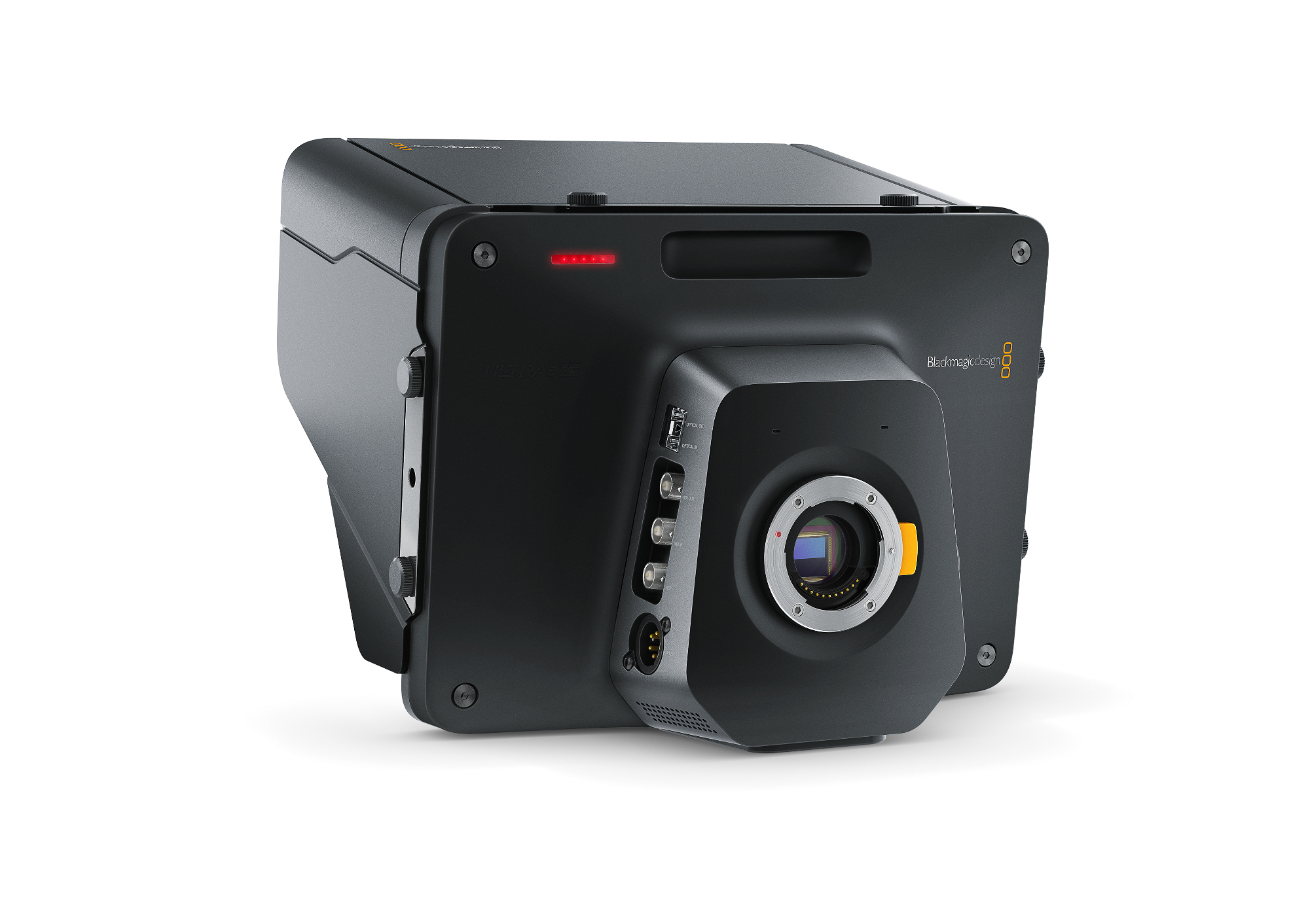

Blackmagic Design Studio Camera HD
Body Only

OUR PART #:  BMD-CINSTUDMFT/HD/2

Meet Blackmagic Studio Camera HD.
Learn More
Blackmagic Studio Camera HD - Right Side View
Blackmagic Studio Camera HD - Left Side View
Blackmagic Studio Camera HD - Back View

Click a thumbnail to see more images. (5 total)

Our Price: $1,495.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design Studio Camera HD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Meet Blackmagic Studio Camera HD. It comes housed in an incredibly tough, lightweight magnesium alloy body with a large 10" viewfinder, talkback, remote camera control, tally indicators, phantom-powered microphone connections, and SDI or user installable optical fiber connections (sold separately) that let you connect it to your switcher using a single cable. The Blackmagic Studio Camera HD is packed with all the advanced features you need for multi camera production and broadcast.

Designed for Live Production - Great for outdoor and indoor live production
You can produce multiple camera live production in any location. Its super-bright, large viewfinder, and compact size make it ideal for talk shows, sitcoms, and broadcast news in the studio, or even live concerts, as well as sporting events. Its incredibly lightweight, compact design, foldable sunshade, and interchangeable lenses (sold separtately) mean you can pack an entire multi camera live production rig into a single road case. And because it's so easy to setup and use, the Blackmagic Studio Camera is also terrific for corporate AV departments, houses of worship, schools, and more.

Revolutionary Design - Advanced technology in a compact, rugged design
The Blackmagic Studio camera comes in a compact, durable magnesium alloy body that's packed with innovative technology, making it the most rugged, portable, and advanced studio camera in the world. You get a huge 10" viewfinder with sunshade for optimal viewing and control in a range of lighting conditions, a flexible Micro Four Thirds (MFT) mount that gives you more lens options than any other studio camera, multiple mounting points, and professional broadcast connections. Engineered with the latest miniaturization technology and features, the Blackmagic Studio Camera is the world's most advanced camera specifically designed for multiple camera live production.

Lenses - Support for virtually any lens (Note: lenses sold separately)
The active MFT lens mount supports an incredibly wide variety of high quality photographic lenses. Third party lens mount adapters let you use massive PL cinema lenses, or even use traditional B4 ENG broadcast lenses.

The World’s Most customizable studio camera
The Blackmagic Studio Camera works with a wide array of professional broadcast camera accessories (accessories sold separately), and can be customized to meet the needs of your production. You get an active MFT lens mount, standard audio and video connections, and (10) 1/4" mounting points for adding a virtually limitless range of accessories like rails, matte boxes, teleprompters, and more.

Blackmagic Studio Camera HD Includes:

  • Blackmagic Studio Camera HD
  • Sun Shield and attaching screws
  • Turret Dust Cap
  • 12V AC Adapter
  • SD card with software and manual

Blackmagic Studio Camera HD Features:

  • Effective Sensor Size: 12.48mm x 7.02mm
  • Focus: Auto focus. Peaking mode.
  • Lens Mount: Active MFT Mount
  • Lens Control: Iris, focus, zoom on supported lenses.
  • Dynamic Range: 13 Stops.
  • Screen Dimensions: 10.1" - 1920 x 1200
  • Screen Type: 10.1” - TFT-LCD
  • Controls: Push button controls for navigating menus.
  • Mounting Options: 2 x 3/8" tripod mount. 4 x 1/4"-20 UNC thread mounting points on top of camera, 3 x 1/4" 20 UNC thread mounting points left on right of camera.

Blackmagic Studio Camera HD Specifications:

Connections:

  • Total Video Input: 1 x SDI
  • Total Video Output: 1 x SDI
  • SDI Rates: 1.5G, 3G.
  • Optical SDI: Supports optional SMPTE optical module (sold separately).
  • Optical Fiber Input/Output: 3G Optical Fiber Input and Output. Optical fiber SFP module sold separately.
  • Analog Audio Input: 2 x XLR analog switchable between mic and line levels. Phantom power support.
  • Analog Audio Output: Aviation headphone (Fixed Wing Plugs) output for talkback and audio monitoring.
  • Reference Input: Tri-Sync or Black Burst.
  • SDI Audio Output: 2 channels in 3G-SDI 48Khz and 24 bit. 2 channels for talkback on channel 15-16.
  • Remote Control: 1 x 2.5mm LANC for Iris Control and Focus. SDI CCU control from ATEM.
  • Computer Interface: USB 2.0 Mini-B port for software updates.

Blackmagic Studio Camera HD

Audio:

  • Microphone: Integrated stereo microphone.
  • Built-in Speaker: n/a

Standards:

  • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, and 1080i60
  • SDI Compliance: SMPTE 292M. SMPTE 424M Level B
  • SDI Audio Sampling: 48 kHz and 24-bit

Control:

  • External Control: Blackmagic SDI Control Protocol. 2.5mm LANC connection for lens control.

Talkback And Tally:

  • Live Tally Indicator: 1 x for talent, 1 x for operator.
  • Talkback: SDI Channels 15 and 16.

Software:

  • Software Included: Blackmagic Camera Setup for Mac OS X and Windows.

Operating Systems:

  • Mac OS X 10.11 El Capitan, macOS Sierra or later.
  • Windows 8.1 or Windows 10.

Power Requirements:

  • External Power Input: 1 x 4-pin XLR port for external power or battery use.

Optional Accessories (sold separately):

  •  SMPTE compatible SFP Optical Module
  •  ATEM Talkback Converter 4K

Physical Specifications:

Blackmagic Studio Camera HD

Environmental Specifications:

  • Operating Temperature: 32° to 104° F (0° to 40° C)
  • Storage Temperature: -4° to 113° F (-20° to 45° C)
  • Relative Humidity: 0% to 90% non-condensing

Warranty:

  • Product Warranty: 12 Month Limited Manufacturer's Warranty.
