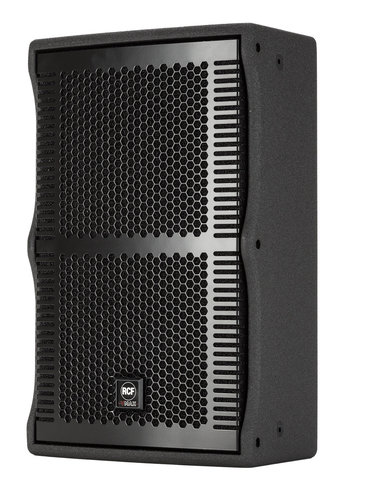

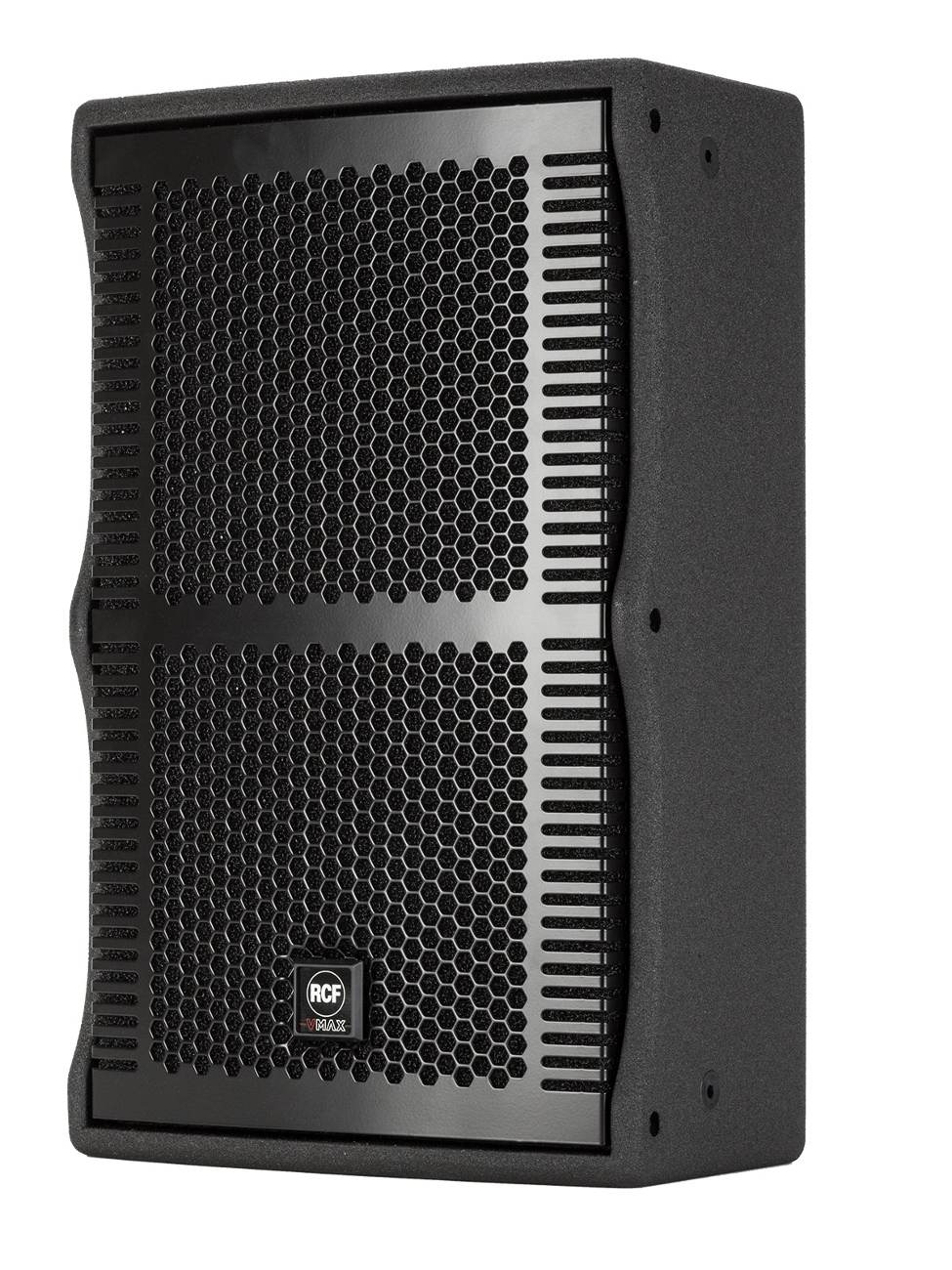

RCF VMAX V10
High Power, Two-Way Bass Reflex Full Range System

OUR PART #:  VMAX-V10

The RCF V10 is a compact, full range, extremely versatile two-way loudspeaker system.
Learn More
Our Price: $1,199.00
List Price: $1,539.00
You save 22%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RCF VMAX V10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The RCF V10 is a compact, full range, extremely versatile two-way loudspeaker system. It offers substantial power and efficiency for a variety of professional applications that include portable systems, sound reinforcement, permanent installations and supplementary fill for larger systems. The high-frequency section is a constant directivity CMD horn mathematically designed for Coverage Matching Design in relation to the woofer system, loaded on a neodymium compression driver with a 2.5” diaphragm assembly for smooth, controlled dispersion. The low-frequency transducer is a tight, high power 10” mid-bass with a 2.5 ” voice coil.

RCF V10 Applications:

  • Live performance
  • DJ set
  • Rental solutions
  • Permanent installations

RCF V10 Features:

  • 10" high power, 2.5" voice coil mid bass
  • 1 x 2.5" high power titanium neo compression driver
  • 130 dB max SPL
  • 350 Watt AES
  • High output, response down to 55 Hz
  • Birch plywood cabinet
  • Weather resistant, textured, polyurea finish
  • Epoxy powder coated front grille

RCF V10 Specifications:

  • Acoustical Specifications
    • Frequency Response -10 dB: 55 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 130 dB
      • Horizontal coverage angle: 90°
      • Vertical coverage angle: 60°
    • Directivity index; Q: 10
    • System Sensitivity: 98 dB
    • Nominal Impedance: 8 Ohm
    • Power Handling: 350 W
    • Peak Power Handling: 1400 W
    • Recommended Amplifier: 700 W
    • Protections: Dynamic
    • Crossover frequencies: 1000 Hz
  • Transducers
    • Compression Driver: 1.4", 2.5" Voice coil
    • Nominal Impedance: 8 Ohm
    • Input Power Rating: 180 W PEAK 90 W W AES
    • Sensitivity: 98 dB
    • Woofer: 10", 2.5" voice coil
    • Nominal Impedance: 8 Ohm
    • Input Power Rating: 500 W PEAK, 250 W W AES
    • Sensitivity: 110 dB
  • Input Section
    • Input connector: 2 x SPEAKON NL4
  • Cabinet
    • Cabinet Material: 15mm Birch Plywood
    • Hardware: Pole mount, 13 x M10
    • Pole Mount/Cap: yes
    • Grille: Custom perforated steel grille
    • Colour: black
  • Physical Specifications
    • Height: 540 / 21.25 mm/inch
    • Width: 340 / 13.38 mm/inch
    • Depth: 333 / 13.11 mm/inch
    • Net Weight: 15 / 33.06 kg/lbs
