QSC AD-S282HT [RESTOCK ITEM]
AcousticDesign Dual 8" 2-Way Speaker System with Transformer Taps

OUR PART #  AD-S282HT-BLA-RST-02

Sale Price: $527.99
List Price: $880.00
You save 40%! (Low Price Guarantee)
In Stock

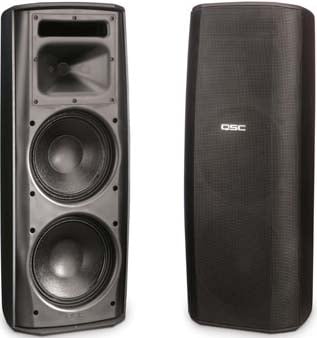

The QSC AcousticDesign AD-S282HT is a full-range, surface-mount loudspeaker with a sleek, contemporary styling that fits perfectly into multiple surroundings and applications including hotels, restaurants, convention facilities, and multimedia environments.  The speaker incorporates the Advanced Directivity™ rotatable waveguide. Comes in a black weather resistant enclosure.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

The AD-S282HT is a 2-way system housed in a ported enclosure made from injection-molded, high-impact polystyrene. This enclosure incorporates two 8" weather-resistant, LF transducers with heavy-duty double roll cloth surrounds. These high output versions employ a 1" exit compression HF driver. The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.

The AD-S282HT transformer version provides taps for both 70V and 100V distributed system use.

QSC AD-S282HT Features:

  • Dual 8" 2-Way System housed in a lightweight, multi-purpose enclosure featuring a heavy duty, powder coated aluminum grill.
  • The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provisions for optional Omni-mount™ bracket are built in.
  • Advanced Directivity™ Rotatable Waveguide - (90° x 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.

QSC AD-S282HT Specifications:

  • Configuration: Compact 2-way, ported enclosure
  • Low-frequency Transducers: Dual 8" high power, treated paper cone, 2" voice coil, neodymium magnet
  • High-frequency: Transducer 1" high output compression driver
  • Frequency Response (-6 dB): 80 Hz - 27.7 kHz
  • Useable Frequency Range (-10 dB): 60 Hz - 29.5 kHz
  • Calculated Peak Output: 125 dB SPL
  • Calculated Continuous Output: 119 dB SPL
  • Nominal Impedance: 8 Ohm nominal (5.25 Ohm minimum, 17.6 kHz, 64.22 Ohm maximum, 2.56 kHz)
  • RMS Power Handling: 450 W (8 hours IEC)
  • Recommended Max Amp Power: 900 W RMS
  • Sensitivity: 93 dB, 1 m, free field
  • Nominal Coverage (HV): 90° x 60° (-6 dB) rotatable to 60° x 90°
  • Bass Loading: Ported, tuned to 60 Hz
  • Transformers:
    • Type: Customlow distortion laminated core, wide bandwidth design
    • Taps: 100 V: 200, 100, 50 W
    • 8 Ohm bypass
  • Enclosure Material: Injection molded, weather resistant, high impact polystyrene
  • Enclosure Finish: black (paintable)
  • Weather Resistant: Yes
  • Grille: Heavy duty powder coated aluminum
  • Connectors: Barrier strip
  • Mounting: Hardware Yoke mount included
  • Net Weight: 27.7 lbs. (12.6 kg)
  • Shipping Weight: 35.6 lbs. (16.1 kg)

QSC AD-S282HT [RESTOCK ITEM]
AcousticDesign Dual 8" 2-Way Speaker System with Transformer Taps

OUR PART #  AD-S282HT-BLA-RST-02

Product Information:

The QSC AcousticDesign AD-S282HT is a full-range, surface-mount loudspeaker with a sleek, contemporary styling that fits perfectly into multiple surroundings and applications including hotels, restaurants, convention facilities, and multimedia environments.  The speaker incorporates the Advanced Directivity™ rotatable waveguide. Comes in a black weather resistant enclosure.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

The AD-S282HT is a 2-way system housed in a ported enclosure made from injection-molded, high-impact polystyrene. This enclosure incorporates two 8" weather-resistant, LF transducers with heavy-duty double roll cloth surrounds. These high output versions employ a 1" exit compression HF driver. The HF driver is coupled with QSC's unique Advanced Directivity rotatable waveguide - enabling the loudspeaker to deliver accurately focused sound, regardless of its mounted orientation.

The AD-S282HT transformer version provides taps for both 70V and 100V distributed system use.

QSC AD-S282HT Features:

  • Dual 8" 2-Way System housed in a lightweight, multi-purpose enclosure featuring a heavy duty, powder coated aluminum grill.
  • The included yoke mount bracket can be used for mounting and aiming the system in vertical or horizontal orientations. Provisions for optional Omni-mount™ bracket are built in.
  • Advanced Directivity™ Rotatable Waveguide - (90° x 60°) enables the loudspeaker to deliver accurately focused sound, regardless of the enclosure's mounted orientation.

QSC AD-S282HT Specifications:

  • Configuration: Compact 2-way, ported enclosure
  • Low-frequency Transducers: Dual 8" high power, treated paper cone, 2" voice coil, neodymium magnet
  • High-frequency: Transducer 1" high output compression driver
  • Frequency Response (-6 dB): 80 Hz - 27.7 kHz
  • Useable Frequency Range (-10 dB): 60 Hz - 29.5 kHz
  • Calculated Peak Output: 125 dB SPL
  • Calculated Continuous Output: 119 dB SPL
  • Nominal Impedance: 8 Ohm nominal (5.25 Ohm minimum, 17.6 kHz, 64.22 Ohm maximum, 2.56 kHz)
  • RMS Power Handling: 450 W (8 hours IEC)
  • Recommended Max Amp Power: 900 W RMS
  • Sensitivity: 93 dB, 1 m, free field
  • Nominal Coverage (HV): 90° x 60° (-6 dB) rotatable to 60° x 90°
  • Bass Loading: Ported, tuned to 60 Hz
  • Transformers:
    • Type: Customlow distortion laminated core, wide bandwidth design
    • Taps: 100 V: 200, 100, 50 W
    • 8 Ohm bypass
  • Enclosure Material: Injection molded, weather resistant, high impact polystyrene
  • Enclosure Finish: black (paintable)
  • Weather Resistant: Yes
  • Grille: Heavy duty powder coated aluminum
  • Connectors: Barrier strip
  • Mounting: Hardware Yoke mount included
  • Net Weight: 27.7 lbs. (12.6 kg)
  • Shipping Weight: 35.6 lbs. (16.1 kg)
