DMX/RDM Receiver


LumenRadio's CRMX OEM RDM is the OEM version of the CRMX Nova™ RDM receiver.
Learn More
Our Price: $315.00
List Price: $350.00
You save 10%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

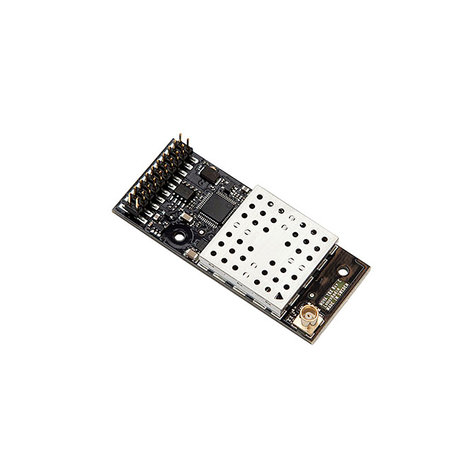

LumenRadio's CRMX OEM RDM is the OEM version of the CRMX Nova™ RDM receiver. It offers support for one full DMX universe of up to 512 channels at maximum refresh rate, and is available as a DMX/RDM receiver.

Based on LumenRadio's advanced CRMX technology, the CRMX OEM RDM provides you with all the advanced features, such as automated cognitive coexistence, DMX fidelity, strong encryption, low latency, and more, all packed together on one small PCB.
CRMX OEM RDM allows for feedback in RDM-enabled fixtures along with feedback from the PCB itself when used in conjunction with RDM-compatible CRMX Nova and CRMX Outdoor equipment. To work with old wireless systems using legacy equipment, the CRMX OEM RDM receiver is compatible with W-DMX™ transmitters, though when using it in this way, you won't get the benefits of the advanced CRMX technology and you won't get support for RDM.

The CRMX OEM RDM offers easy integration into your products, but if you run into problems anyway, LumenRadio's engineers will provide the support you need.

In addition, CRMX OEM RDM utilizes the international license-free ISM band (2.4GHz).

LumenRadio CRMX OEM RDM Key Features:

  • DMX512-A and RDM support
  • Compatible with W-DMX™ transmitters
  • Up to 1000 meter link range
  • Connects to SuperNova
  • 5ms latency
  • 128-bit encryption of wireless link
  • Automated Cognitive Coexistence
  • Forward Error Correction
  • MCX antenna connector

LumenRadio CRMX OEM RDM Specifications:

  • Manufacturer #: LROEBRX1
  • Manufacturer Product Name: OE-BRX1
  • Supported protocols
    • USITT DMX512, DMX512(1990) & DMX512-A
    • RDM ANSI E1.20
  • Power:
    • Low voltage input: 6-12VDC (unregulated) or 5VDC (regulated)
    • Current consumption: 250mA
  • Physical:
    • Dimensions (excluding antenna): 1.1" W x 0.47" H x 2.6" D (27.5 x 12 x 65mm)
    • Weight: 0.02 oz (10 g)
  • RF characteristics
    • Operational frequency range: 2402-2480 MHz
    • Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW (10dBm)
    • Tested link range: 500m in urban area using 100mW output power mode
  • Connectors:
    • Standard 0.1" x 0.1" (2.54 x 2.54mm) 2× 10-position interface connector
    • MCX-type antenna connector
