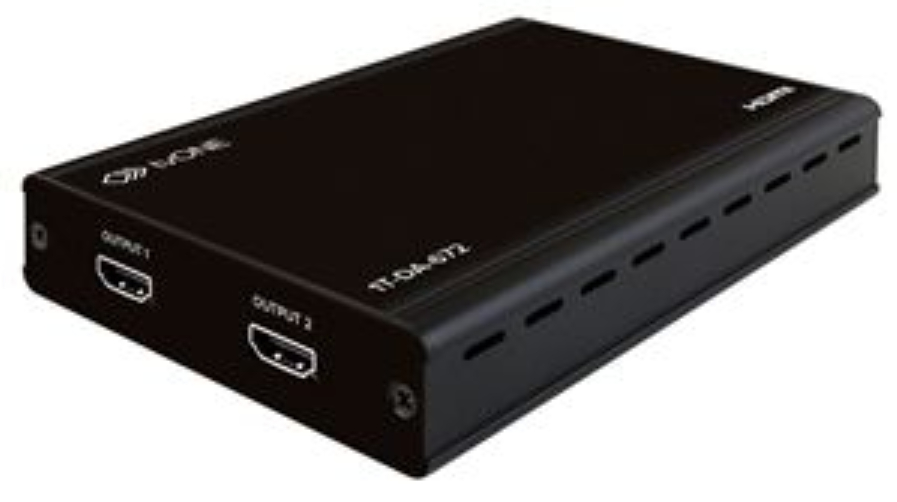

TV One 1T-DA-672
Distribution Amplifier

OUR PART #  1T-DA-672

Our Price: $245.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The tv ONE 1T-DA-672 HDMI distribution amplifier provides dual, independent outputs from a single HDMI input for distribution to devices capable of receiving and/or displaying such signals. The 1T-DA-672 is compatible with HDMI v1.4 specifications; a cutting-edge technology that supports Deep Color (10-bit and 12-bit) video in addition to 3D video resolutions (Frame Packing, Side by Side). SDTV resolutions 480i/576i, HDTV resolutions to 1080p and UHD resolutions to 4096x2160@24Hz are also supported along with the HDCP standard. In addition, the 1T-DA-672 HDMI DA exhibits high bandwidth (up to 300MHz - 9Gbps) and provides signal amplification and equalization for high performance processing of audio and video allowing signals to travel great distances without quality loss. DVI 1.0 format is supported (using cable adapters) and the product provides automatic discovery of monitor EDID. A screw on power adapter cable prevents inadvertent disconnection of power and, as a bonus feature; all HDMI outputs can be cascaded.

tv ONE 1T-DA-672 Includes:

  • AC Power Adapter US, UK or Euro
  • Instruction Manual

tv ONE 1T-DA-672 Features:

  • HDMI v1.4, HDCP 1.1 and DVI 1.0 Compliant
  • Allows distribution of 2 Outputs
  • Supports 3D video resolutions (Frame Pack, Side/Side)
  • Supports 10/12-bit Color Depth Display
  • Supports PC resolutions to WUXGA / 4kx2k@30Hz
  • Supports HDTV resolutions to 1080p60
  • Supports SDTV resolutions of 480i and 576i
  • Supports DVI using optional HDMI to DVI Adaptors
  • Signal Equalization feature enables longer cable runs
  • Supports Automatic Discovery of Monitor EDID

tv ONE 1T-DA-672 Specifications:

  • Product Item Number: 1T-DA-672 1x2 HDMI DA
  • Video Inputs: HDMI 1x via HDMI Connector
  • Video Outputs: HDMI 2x via HDMI Connector
  • General:
    • Video Bandwidth 300MHz/9Gbps
    • Color Depth 10/12-bit Color Depth Display
    • Maximum PC/DVI Resolutions WUXGA@60Hz
    • Maximum HDTV/UHD Formats 1080p60, 2560×1600@60,
    • 3840x2160@30, 4096x2160@24
    • Compliance HDMI V1.4, HDCP V1.1, DVI V1.0
    • Signal Equalization Internal
  • Maximum Distances:
    • Source to DA 20m (60’) for 1080p/8-bit, 15m (45’) for 1080p/12-bit
    • DA to Display 15m (45’) for 1080p/8-bit, 10m (30’) for1080p/12-bit
  • Warranty: Limited Warranty 3 Years Parts and Labor
  • Power Requirement: External Power Supply 5VDC@2.6A
  • Mechanical:
    • Dimensions (HxWxD): 1.0" x 4" x 5.7" (25 x 102 x 145mm)
    • Weight 0.66 lbs. (0.298Kg)
  • Environmental:
    • Operating Temperature +32° to +104°F (0° to +40°C)
    • Operating Humidity 20% to 90%, Non-condensing
    • Storage Temperature +32° to +140°F (0° to +60°C)
    • Storage Humidity 20% to 90%, Non-condensing
  • Regulatory Approvals:
    • HDMI: DAs FCC, CE, RoHS
    • Power Supply: UL, CUL, CE, PSE, GS, RoHS

TV One 1T-DA-672
Distribution Amplifier

OUR PART #  1T-DA-672

Product Information:

The tv ONE 1T-DA-672 HDMI distribution amplifier provides dual, independent outputs from a single HDMI input for distribution to devices capable of receiving and/or displaying such signals. The 1T-DA-672 is compatible with HDMI v1.4 specifications; a cutting-edge technology that supports Deep Color (10-bit and 12-bit) video in addition to 3D video resolutions (Frame Packing, Side by Side). SDTV resolutions 480i/576i, HDTV resolutions to 1080p and UHD resolutions to 4096x2160@24Hz are also supported along with the HDCP standard. In addition, the 1T-DA-672 HDMI DA exhibits high bandwidth (up to 300MHz - 9Gbps) and provides signal amplification and equalization for high performance processing of audio and video allowing signals to travel great distances without quality loss. DVI 1.0 format is supported (using cable adapters) and the product provides automatic discovery of monitor EDID. A screw on power adapter cable prevents inadvertent disconnection of power and, as a bonus feature; all HDMI outputs can be cascaded.

tv ONE 1T-DA-672 Includes:

  • AC Power Adapter US, UK or Euro
  • Instruction Manual

tv ONE 1T-DA-672 Features:

  • HDMI v1.4, HDCP 1.1 and DVI 1.0 Compliant
  • Allows distribution of 2 Outputs
  • Supports 3D video resolutions (Frame Pack, Side/Side)
  • Supports 10/12-bit Color Depth Display
  • Supports PC resolutions to WUXGA / 4kx2k@30Hz
  • Supports HDTV resolutions to 1080p60
  • Supports SDTV resolutions of 480i and 576i
  • Supports DVI using optional HDMI to DVI Adaptors
  • Signal Equalization feature enables longer cable runs
  • Supports Automatic Discovery of Monitor EDID

tv ONE 1T-DA-672 Specifications:

  • Product Item Number: 1T-DA-672 1x2 HDMI DA
  • Video Inputs: HDMI 1x via HDMI Connector
  • Video Outputs: HDMI 2x via HDMI Connector
  • General:
    • Video Bandwidth 300MHz/9Gbps
    • Color Depth 10/12-bit Color Depth Display
    • Maximum PC/DVI Resolutions WUXGA@60Hz
    • Maximum HDTV/UHD Formats 1080p60, 2560×1600@60,
    • 3840x2160@30, 4096x2160@24
    • Compliance HDMI V1.4, HDCP V1.1, DVI V1.0
    • Signal Equalization Internal
  • Maximum Distances:
    • Source to DA 20m (60’) for 1080p/8-bit, 15m (45’) for 1080p/12-bit
    • DA to Display 15m (45’) for 1080p/8-bit, 10m (30’) for1080p/12-bit
  • Warranty: Limited Warranty 3 Years Parts and Labor
  • Power Requirement: External Power Supply 5VDC@2.6A
  • Mechanical:
    • Dimensions (HxWxD): 1.0" x 4" x 5.7" (25 x 102 x 145mm)
    • Weight 0.66 lbs. (0.298Kg)
  • Environmental:
    • Operating Temperature +32° to +104°F (0° to +40°C)
    • Operating Humidity 20% to 90%, Non-condensing
    • Storage Temperature +32° to +140°F (0° to +60°C)
    • Storage Humidity 20% to 90%, Non-condensing
  • Regulatory Approvals:
    • HDMI: DAs FCC, CE, RoHS
    • Power Supply: UL, CUL, CE, PSE, GS, RoHS
