Canon XC15 Professional 4K UHD Camcorder 4K UHD Camcorder with 12 Megapixel CMOS Sensor and 10X Zoom Lens

OUR PART #: XC15 MFR #: 1456C002

Copied to clipboard

With a compact, portable body, Canon's XC15 4K UHD Camcorder is ideal for handheld editorial and news shooting or on-set TV and film shoots. ...Read more

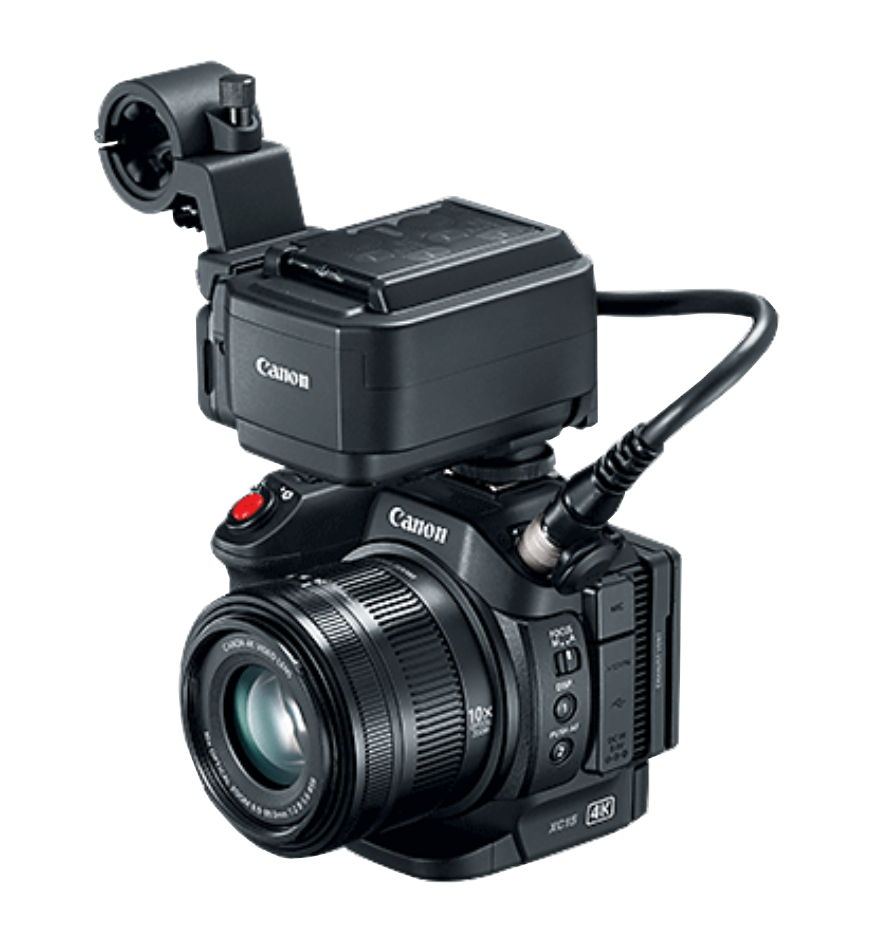

Canon XC15 Professional 4K UHD Camcorder 4K UHD Camcorder With 12 Megapixel CMOS Sensor And 10X Zoom Lens Image 1
Canon XC15 Professional 4K UHD Camcorder 4K UHD Camcorder With 12 Megapixel CMOS Sensor And 10X Zoom Lens Image 2
Canon XC15 Professional 4K UHD Camcorder 4K UHD Camcorder With 12 Megapixel CMOS Sensor And 10X Zoom Lens Image 3
Canon XC15 Professional 4K UHD Camcorder 4K UHD Camcorder With 12 Megapixel CMOS Sensor And 10X Zoom Lens
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

With a compact, portable body, Canon's XC15 4K UHD Camcorder is ideal for handheld editorial and news shooting or on-set TV and film shoots. Its different Look Settings can be used to make sure it pairs well with Canon Cinema EOS cameras as well as XF and XA series camcorders.

The XC15 4K UHD Camcorder's compact design, advanced 12 Megapixel CMOS image sensor, wide-angle 10x zoom lens with Image Stabilizer and advanced autofocus delivers outstanding sharpness and color to bring virtually any project to life.

Equipped with features that will appeal to not only experienced videographers but also novice filmmakers, the Canon XC15 4K UHD Camcorder will help all users capture brilliant imagery quickly and easily, again and again.

Canon XC15 Includes:

  • XC15 4K UHD Camcorder
  • Shoulder Strap
  • Lens Cap
  • Hood Unit
  • Viewfinder Unit
  • Mini-HDMI Cable HTC-100
  • Interface Cable IFC-300PCU/S
  • Battery Pack LP-E6N
  • AC Adapter CA-945
  • Microphone Adapter MA-400
  • Cable for Microphone Unit
  • Cable Clamp

Canon XC15 Features:

  • 4K UHD wide-angle 10x zoom lens with image stabilizer
  • 12 megapixel 1" 4K UHD-compatible CMOS image sensor
  • Compact and ergonomic design
  • DiG!C DV 5 image processor
  • Advanced AF performance
  • High-sensitivity and high-quality low-ligh HD images
  • Pro Audio Module with XLR inputs and precision audiocontrol
  • Look settings compatible wtih Cinema EOS cameras
  • Waveform monitor
  • XF-AVC codec for up to 4K UHD 30p and Full HD 60p
  • Multiple recoding modes and frame rates
  • Slow and fast motion recording
  • Superb still capture capability
  • Canon long and wide dynamic range Gamma
  • Wireless operation
  • Workflow versatility
  • CFast™ 4K UHD recording technology
  • Highlight priority
  • Compatibility and multiple canon accessories

Canon XC15 Specifications:

  • Image Sensing Device:
    • Sensor: CMOS image sensor (single panel)
    • Size: 1.0" (16.0mm on the diagonal)
    • Total Pixels: Approx. 13.36 megapixels (4224 x 3164)
    • Number of Effective Pixels:
      • Movies: approx. 8.29 megapixels (3840 x 2160)
      • Photos: approx. 12 megapixels (4000 x 3000)
    • Filter: RGB primary color filter (Bayer array)
  • Lens (CANON 4K VIDEO LENS):
    • Magnification: 10x
    • Nominal Focal Length: 8.9-89mm
    • 35mm Equivalent:
      • Movies: 27.3-273mm
      • Photos (4:3): 24.1-241mm
    • F Number: f/2.8-5.6
    • Aperture: 8-blade iris diaphragm
    • Shutter: Mechanical shutter incorporated
    • ND Filter: 1 unit (single density)
    • Image Stabilizer: Optical system + electronic system
    • Operating Rings: Focus ring / zoom ring
  • Exposure:
    • Exposure Mode: AUTO / Programmed AE (P) / Shutter-priority AE (Tv) / Aperture-priority AE (Av) / Manual Exposure (M) / SCN (Portrait / Sports / Night / Snow / Beach / Sunset / Low Light / Spotlight / Fireworks)
    • Other: EXP lock / AE shift / Highlight AE
  • Focus:
    • Mode: AF / Manual (focus ring)
    • AF System: TTL-video signal sensing system
    • Other: Face detection & tracking, AiAF (in photo mode), PUSH AF, touch focus function provided
  • LCD Monitor:
    • 3.0" (7.66cm on the diagonal) color LCD (with 3:2 aspect ratio)
    • Approx. 1,030,000 dots, 100% view field coverage
    • Electrostatic capacitance-type touch panel, variable-angle supported
  • Viewfinder: Not available (but viewfinder unit comeswith it)
  • White Balance: Auto / Daylight / Shade / Cloudy /Fluorescent / Fluorescent H / Tungsten / Color Temperature Setting / Set (1/2)
  • Minimum Illumination: NTSC:
    • Full Auto Mode: Approx. 6.4 lux (Frame Rate: 59.94i, Shutter Speed: 1/60)
    • Full Auto Mode: Approx. 3.2 lux (Frame Rate: 29.97p, Shutter Speed: 1/30)
    • Full Auto Mode: Approx. 2.56 lux (Frame Rate: 23.98p, Shutter Speed: 1/24)
    • Manual Mode: 0.05 lux (Frame Rate: 59.94i/29.97p/23.98p, Shutter Speed: 1/2, Gain: 42 dB)
  • White Balance: Auto / Daylight / Shade / Cloudy /Fluorescent / Fluorescent H / Tungsten / Color Temperature Setting / Set (1/2)
  • Movie Recording (Video Format: XF-AVC):
    • File Format: MXF
    • Video Compression Formats: MPEG-4 AVC/H.264
    • Video Quality:
      • 4K recording (size: 3840 x 2160)
      • HD recording (size: 1920 x 1080)
    • Bit Rate/Frame Rate:
      • HD Recording:
        • 50 Mbps: NTSC: 59.94P
        • 35 Mbps: NTSC: 29.97P / 23.98P / 59.94i / 24.00P
      • 4K Movie Recording: 305 Mbps / 205 Mbps: NTSC: 29.97P / 23.98P / 24.00P
    • Color Sampling: YCC422, 8-bit
    • Audio: Linear PCM (16-bit / 48 kHz), 2 channels
  • Rec Media for Photos:
    • Image Type Size: JPEG [3:2] 4000 x 2664 (10.66M) [4:3] 4000 x 3000 (12M) / 640 x 480 (VGA) [16:9] 3840 x 2160 (8.29M))
    • Other: Photo recording in movie recording mode and photo capture during movie playback also possible (In these cases, the image size will be the same as the size of the images in which the movies are recorded and played back. Single-image shooting, continuous shooting or AF continuous shooting available with drive mode setting.)
  • Recording Media:
    • CFast™: 4K recording
    • SD Card: Recording of HD video images, photos (JPEG), menus, etc. possible
  • ISO/Gain Setting:
    • ISO 160-20000 / 0.0 dB - 42 dB gain
    • Auto ISO limit / AGC limit functions incorporated
  • Time Code: Count-up Operation Mode:
    • Drop frame or non-drop frame
    • Rec run, free run, regeneration
    • *NTSC model only
  • Image Customizing (Settings that Give the Images aParticular “Look”): Count-up Operation Mode:
    • For movie recording: Standard, Cinema EOS Std., Neutral, Production Camera, Color Matrix off, Canon Log, EOS Std., Wide DR, High-brightness Priority, User Settings (1/2)
    • For taking photos: Standard, Portrait, Landscape, Neutral, Fidelity Setting, Sepia, Monochrome, Clear, Autumn Leaves, User Settings (1/2)
  • Other:
    • Count-up Operation Mode: Rotary grip (90° rotation forward/backward), Slow & Fast motion recording, pre-recording (only during HD recording), interval recording (only when taking photos), powered IS, enlarged display (/position movement), color bar, peaking display, zebra display, FUNC. customizing, assign buttons (x3), marker displays, color bar, digital teleconverter (2x), GPS support (GP-E2), view assist (with high-brightness priority set as the “look”), WFM
  • Playback:
    • Playback Operations: Normal playback, fast forward (at speeds of x5, x15, x60), fast reverse (at speeds of x5, x15, x60), frame forward, frame reverse, forward skip, reverse skip
    • Index Displays: 3x4 index screen [4K movies, HD movies, photo playback indexes]
    • Other: Enlargement zooming (in photo mode), HD image extraction playback (in 4K movie playback mode)
    • Edit: Deletion only
  • Wi-Fi®: 5 GHz/2.4 GHz dual band
  • Accessory Shoe: Microphone Adapter MA-400 (cold shoe)
  • Terminal:
    • Accessory Shoe: HDMI OUT connector, USB connector, MIC jack, headphones jack, AUDIO connector, DC-IN socket Image Processing Platform: DIGIC DV 5
  • Power Supply-related Specs:
    • Image Processing Platform:
    • Battery Pack*: LP-E6N (7.2V, 1865 mAh)
    • Battery Charger: LC-E6, LC-E6E
    • AC Adapter CA-945
    • *Interchangeable with EOS models (5D Mark III, 6D, 5DS, 5DS R, 60D, 70D, 7D Mark II)
