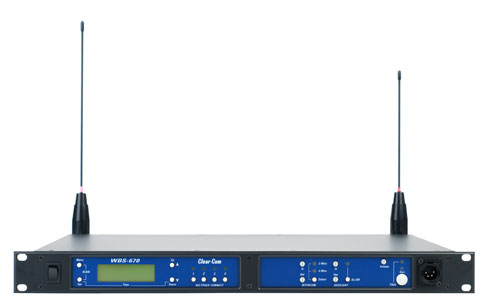

Clear-Com WBS-670
Wireless System Base Station

OUR PART #:  WBS670

The Clear-Com WBS-670 1RU, rack-mountable base station supports up to four full-duplex wireless beltpack.
Learn More
Selected Model Price: $4,473.00
List Price: $4,970.00
Save up to 10%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Clear-Com WBS-670
Select model: (shipping times are approximate)
Qty:

Similar Products

The Clear-Com WBS-670 1RU, rack-mountable base station supports up to four full-duplex wireless beltpack. The base station features a full talk/listen headset so an additional person could communicate with the intercom channel while at the base. Rear panel connections allow multiple base station/beltpack systems to operate as one large system.

Clear-Com WBS-670 Specifications:

  • Base Station:
    • RF Frequency Range: 518-608 MHz, 614-686 MHz in 18 MHz TX and RX bands
    • Power Requirement: 100-240 VAC, 50-60 Hz, IEC receptacle
    • Typical Battery Life Alkaline: N/A
    • Typical Battery Life - Nickel Metal Hydride (1500 mAh): N/A
    • Current Draw: N/A
    • Temperature Range: -4oF to 140oF (20oC to 55oC)
    • Dimensions: 19.0” W x 1.72” H x 14.0” D (48.3 cm x 4.4 cm x 35.6 cm)
    • Weight: 6 lbs. 15 oz. (3.15 kg)
    • Transmit Antenna: 1/2 Wave (supplied), TNC Male Connector
    • Receiver Antenna: 1/2 Wave (supplied), TNC Male Connector
    • FCC ID: B5DM514
    • Frequency Response: 300 Hz - 8,000 Hz
    • Four-Wire Input: Level Adjustable (2 Vrms typical)
    • Four-Wire Output: Level Adjustable (2 Vrms typical)
    • Clear-Com® Partyline Levels: Input/Output Level Adjustable (1 Vrms typical), Line Impedance 200 W
    • RTS® Partyline Levels: Input/Output Level Adjustable (0.775 Vrms typical), Line Impedance 200 W
    • Telex® Partyline Levels: Input/Output Level Adjustable (1 Vrms typical), Line Impedance 300 W
    • Auxiliary Input: Adjustable (2 Vrms typical)
    • Auliliary Output: Adjustable (2 Vrms typical into 600 W) (at rated deviation)
  • Transmitter:
    • Type: Synthesized, 720 channels
    • Transmit Power: 50 mW max. (High), 5 mW (normal)
    • RF Frequency Stability: 0.005%
    • Modulation: FM, 40 KHz Deviation
    • Modulation Limiter: Peak-Responding Compressor
    • Modulation Frequency Range: 300 Hz -8,000 Hz +-2 dB
    • Microphone Audio Input: 30 W - 3,500 W
    • Microphone Input Sensitivity: 9 mV
    • Radiated Harmonics & Spurious: Exceeds FCC specifications
    • FCC Acceptance: Type accepted under FCC Part 74
  • Receiver:
    • Type: Dual Conversion Superheterodyne, Synthesized, FM, 720 channels
    • RF Sensitivity: <0.7 mV for 12 dB SINAD
    • Signal-to-Noise Ratio: 95 dB
    • IF Selectivity: 3 dB at 230 KHz
    • Image Rejection: 70 dB or better
    • Squelch Quieting: 95 dB
    • RF Frequency Stability: 0.005%
    • Distortion: <1% at full deviation
    • Local Headset Output: 40mW output into 600 W (1% distortion)
    • FCC Acceptance: Notification under FCC Part 15
