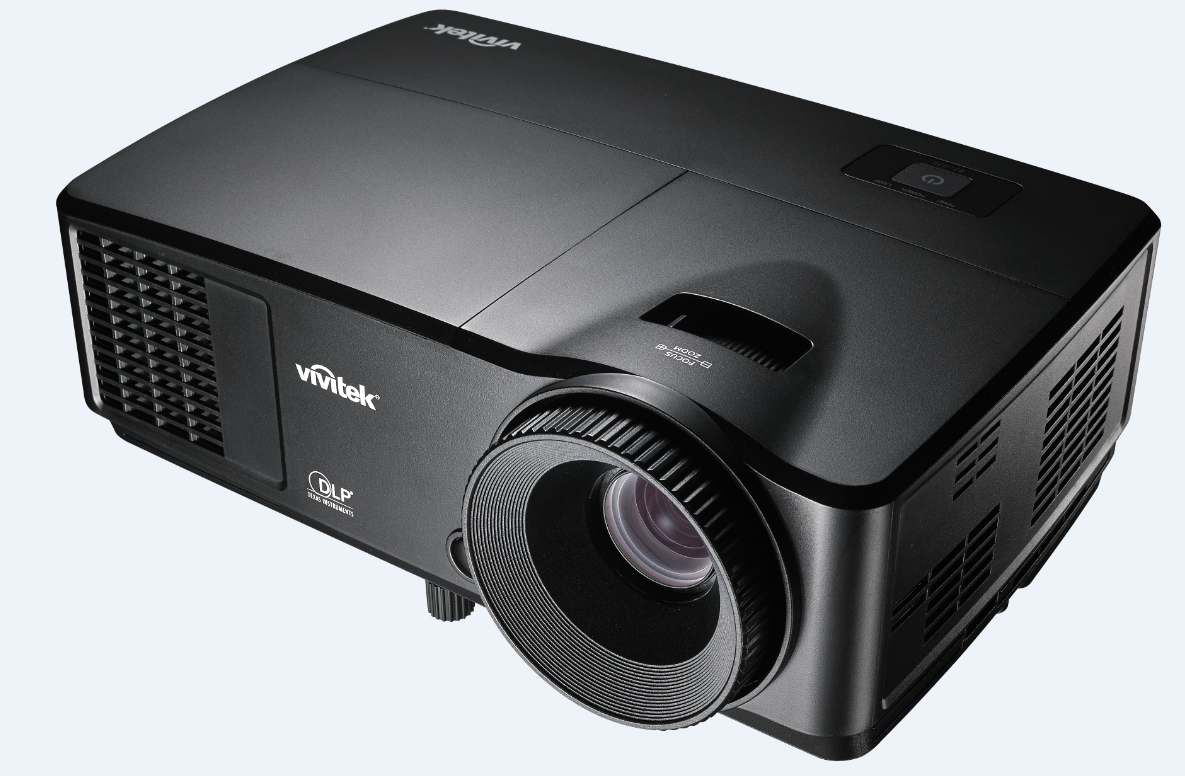

Vivitek DS234
3,200 ANSI Lumens High SVGA Digital Projector

OUR PART #:  DS234

The Vivitek DS234 is a Full HD 3D digital projector that features 3200 lumens, a 10,000:1 contrast ratio and DLP®/BrilliantColor™ technologies to deliver crisp, vibrant images.
Learn More
Our Price: $357.50
List Price: $400.00
You save 11%!
Write the first review.
Vivitek DS234
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Vivitek DS234 is a Full HD 3D digital projector that features 3200 lumens, a 10,000:1 contrast ratio and DLP®/BrilliantColor™ technologies to deliver crisp, vibrant images. The DS234 is 3Dready via DLP Link™ and can display 3D content directly from 3D sources, such as, a 3D Blu-Ray™ player or broadcast 3D. With 1080p widescreen resolution, enhanced color performance and HDMI v1.4, the Vivitek DS234 is the right choice for the latest video content.

Excellent connectivity
The DS234 includes all the necessary connections to deliver the vibrant images you want: HDMI v1.4a, VGA-In, Composite-In, Audio-In (Mini-Jack), Audio-Out (Mini-Jack), RS-232, USB (Mini-Type B (Service))

3D projection
Compatible with PCs, game consoles, blu-ray players and more, Vivitek's 3D-capable projectors can even convert 2D content into 3D, solely using their internal processors.

Vivitek DS234 Includes:

  • AC Power Cord
  • VGA Cable
  • Remote Control with Batteries
  • Documentation Kit
  • Optional Accessories:
    • Replacement Lamp
    • Bag
    • Filter

Vivitek DS234 Features:

  • DLP® and BrilliantColor™ technologies for the ultimate in picture quality
  • Bright 3,200 ANSI lumens and high 10,000:1 contrast ratio ensures a crisp and sharp image
  • Native SVGA (800 x 600) resolution with display up to 1080p (1920 x1080)
  • Energy efficient lamp that delivers up to 8,000 hours (Dynamic Eco. Mode) of usage
  • Five segment WBRYG color wheel for improved and vivid color reproduction
  • 3D-Ready via DLP® Link™and HDMI v.1.4atechnology
  • Audio ready with 2 watt audio speaker and audio-in/out ports
  • Quiet operation with low 28dB (Eco mode) acoustic noise
  • Source filtering function to save time locating device signal source
  • Choice of 6 pre-set display scenario modes including: presentation, sRGB, cinema, dynamic, user 1 and user 2
  • Top sided lamp cover for simple lamp removal and insertion
  • Intuitive multiple language OSD (On-screen Display) menu
  • Environmentally friendly with less than 0.5W of power in stand-by mode
  • Portable and lightweight at only 1.97kg (4.32lbs)
  • Anti-theft security features include: Kensington® Security Slot,security bar, and power button lock

Vivitek DS234 Specifications:

  • Display Type: Single 0.55” DLP® Technology by TI
  • Brightness: 3,200 ANSI Lumens
  • Native Resolution: SVGA (800 x 600)
  • Max. Resolution: 1080p (1920 x 1080)
  • Contrast Ratio: 10,000:1 (Full On/Off)
  • Lamp Life and Type: 4,500/6,000/8,000 Hours (Normal/Eco./Dynamic Eco), 203W/170W
  • Throw Ratio: 1.97 - 2.17:1
  • Image Size (Diagonal): 27" - 290" (68.58 – 736.6cm)
  • Projection Distance: 1.2 - 11m (3.93ft - 36.1ft)
  • Projection Lens: F=2.51 - 2.69, f=21.95mm - 24.18mm
  • Zoom Ratio: 1.1x
  • Aspect Ratio: 4:3 Native
  • Offset: 115 ±5%
  • Keystone Correction: Vertical ±40°
  • Horizontal Frequency: 31 - 100kHz
  • Vertical Frequency: 50 - 120Hz
  • 3D Functionality: Yes (Supports DLP® Link™, HDMI v.1.4)
  • Speaker: 2W (Mono)
  • Computer Compatibility: 31K~100K Hz, 50~120 Hz
  • Video Compatibility: NTSC-M, NTSC-4.43, PAL-60, PALM,N,B,D,G,H,I, SECAM
  • I/O Connection Ports:
    • HDMI v1.4a
    • VGA-In
    • Composite-In
    • Audio-In (Mini-Jack)
    • Audio-Out (Mini-Jack)
    • RS-232
    • USB (Mini-Type B (Service))
  • Projection Method: Table Top, Ceiling Mount (Front or Rear)
  • Security Solutions: Kensington® Security Slot, Security Bar, Power Button Lock
  • Dimensions (WxDxH): 11.2" x 7.6" x 4.4" (285 x 193.5 x 111.5mm)
  • Weight: 4.32lbs (1.97kg)
  • Available Color: Black
  • Operating Temperature: 5° - 40°C
  • Noise Level: 30dB/28dB (Normal/Eco Mode)
  • Power Supply: AC 100-240V, 50/60Hz
  • Power Consumption: 220W (Eco. Mode), 260W (Normal Mode), <0.5W (Standby)
