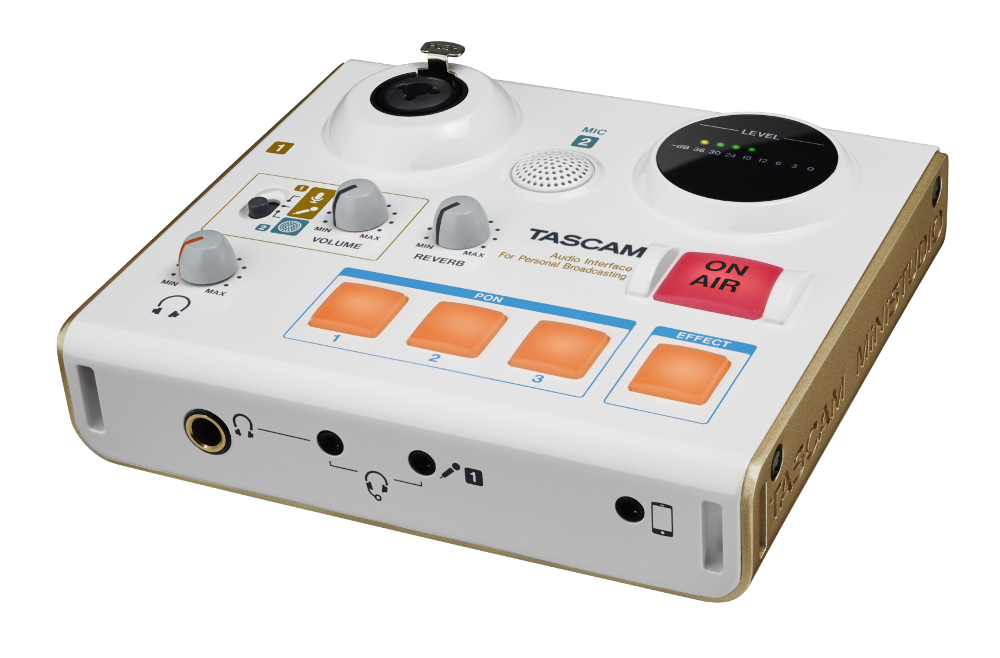

Tascam MiNiSTUDIO Personal US-32
USB 2.0 Internet Broadcast Audio Interface

OUR PART #:  US-32

The TASCAM MiNiSTUDIO is your personal online broadcast studio, the entry-level model in the MiNiSTUDIO series, designed specifically for live Internet broadcasting.
Learn More
Our Price: $129.99
List Price: $179.99
You save 28%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Tascam MiNiSTUDIO Personal US-32
Qty:
In Stock

Similar Products

The TASCAM MiNiSTUDIO is your personal online broadcast studio, the entry-level model in the MiNiSTUDIO series, designed specifically for live Internet broadcasting. It features a professional quality audio interface and a number of unique real-time effects, delivering everything you need to become the next internet sensation.

Tascam MiNiSTUDIO Personal US-32 Includes:

  • US-32 MiNiSTUDIO unit
  • USB cable
  • Users manual
  • Warranty card

Tascam MiNiSTUDIO Personal US-32 Features:

  • XLR/TRS input jack supports balanced input and can provide +48V phantom power
  • Mini jack mic input
  • Supports connection of 4-pole earphone with mic
  • Stereo mini jack AUX input that can be used to connect portable audio players and game devices
  • Built-in omnidirectional condenser mic
  • Support for low-level dynamic mic input signals
  • DSP effects (equalizer, compressor and reverb)
  • Input monitoring function allows input sounds to always be heard before they are transmitted
  • 3 PON sound effect trigger pads that are self-lighting and velocity-sensitive
  • REVERB knob that can be used to adjust the amount of reverb
  • Voice Effect on/off button
  • ON AIR button that starts transmission to the computer
  • Stereo mini jack headphone output
  • 1/4" headphone output

Tascam MiNiSTUDIO Personal US-32 Specifications:

  • Sampling frequency: 44.1k/48k/88.2k/96kHz
  • Quantization bit rate: 16-/24-bit
  • Analog Audio Inputs:
    • MIC IN: IN 1
      • Connector: XLR-3-31(1: GND, 2: HOT, 3: COLD), BALANCED
      • Input impedance: 2.4k Ohms
      • Maximum input level: +7.7dBV (2.427Vrms)
      • Gain: 45dB
    • MIC IN (Plug-in Power):
      • Connector: 3.5mm (1/8”) 4-pole mini jack/3.5mm (1/8”) mini jack
      • Input Impedance: 5k Ohms or more
      • Gain: 45dB
    • LINE IN:
      • Connector: 3.5mm (1/8”) stereo mini jack
      • Input Impedance: 5k ohms or more
      • Maximum Input Level: +7.7dBV (2.427Vrms)
    • MIC 2: Onboard Omnidirectional Condenser Mic
  • Phones:
    • Connector: 1/4” Stereo Phone-jack/ 3.5mm (1/8”) 4-pole mini jack/3.5mm (1/8”) Stereo mini jack
    • Maximum output level: 15mW+15mW above (Less than THD+NO.1%, 32 Ohms, loaded)
  • Control Input/Output:
    • USB: USB B-type 4-pin
    • Format: USB2.0 High Speed (480MHz)
    • DC IN 5V: USB Micro B type
  • Audio Performance:
    • Frequency response (To PHONE OUT):
      •  44.1k/48kHz: 20Hz to 20kHz 0/-1dB (PHONE OUT, JEITA)
      • 88.2k/96kHz: 20Hz to 40kHz 0/-3dB (PHONE OUT, JEITA)
      • EIN: Less than -113dBu (150 Ohm terminated, volume max)
    • THD+N: Less than 0.008%
    • S/N ratio: 90dB or more (MIC IN to PHONE OUT, volume min, JEITA)
    • Crosstalk: 95dB or more (MIC IN to PHONE OUT, 1kHz, JEITA)
  • Computer System Requirements (computers sold separately):
    • Windows-Compatible computers:
      • Windows-compatible computer with a USB 2.0 port
        *Note: For information of the latest OS version, please contact your Sales Professional.
      • CPU type/speed: Dual core/2 GHz or faster (x86)
      • Memory: 2GB or more
      • DRIVER: ASIO2.0, WDM
    • Macintosh:
      • OS:
        *Note: For information on the latest OS version, please contact your Sales Professional.
      • Compatible computers: Apple MacOS computer with a USB 2.0 port
      • CPU type/speed: Dual core/2 GHz or faster
      • Memory: 2GB or more
      • DRIVER: Core Audio
    • iOS:
      • OS: iOS 7 or later
        *Note: For more information on the OS compatibility on each model, please contact your Sales Professional.
  • General:
    • Power (when connected to PC): USB bus-power
    • Power (when connected to an iOS device): USB power adapter, External battery pack (sold separately), TASCAM BP-6AA (sold separately)
    • Power consumption: 1W
    • Physical:
      • Dimensions (W x H x D): 5.9" × 1.57" × 5.11" (150 x 40 x 130mm)
      • Weight: 0.84 lb (382 g)
      • Operating temperature: 41 to 95° F (5 to 35° C)

Note: All information and specifications subject to change without notice.
