Sony AXS-R7
4K RAW Recorder for PMWF5 & F55

OUR PART #  AXSR7

Call for price! Not available online.
List Price: $7,760.00

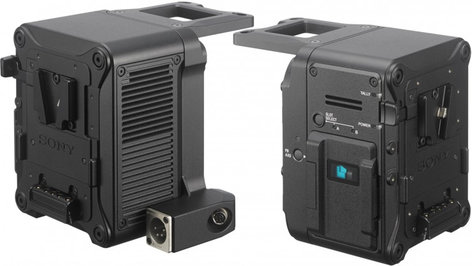

The Sony AXS-R7 Portable Memory Recorder attaches seamlessly to the high end F55 and F5 CineAlta cameras, speeding up the 4K production workflow without compromising quality. The AXS-R7 doubles 4K RAW recording from 60 fps up to 120 fps for the F55 camera compared to previous Sony recorders. For shooting at higher frame rates, the recorder captures 2K RAW at up to 240 fps for the F55 and F5, for playback with 10x super slow motion. Working with high-speed AXSM™ A Series memory cards, the recorder features dual memory card slots for extra security and to extend recording times. The recorder also offers 4K RAW cache recordings up to 30 seconds while in standby mode. The tough, all-metal casing makes the AXS-R7 the ideal companion to the F55 and F5 for all kinds of high-end drama, documentary and wildlife productions.

Sony AXS-R7 Includes:

  • Top cover (1)
  • Retaining screws (4)
  • Operating Instructions
  • Warranty

Sony AXS-R7 Features:

  • High speed 4K RAW capture
  • 30-second RAW cache recording
  • Durable dust and splash-proof metal design
  • Dual memory card slots support high-speed AXSM memory card

Sony AXS-R7 Specifications:

  • Power requirement: 11 V to 17 V DC
  • Power consumption:
    • Approx. 27 W (4K 120FPS)
    • Approx. 24 W (4K 60FPS)
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Operating humidity: 20% to 90%
  • Storage temperature: -4°F to 140°F (-20°C to + 60°C)
  • Dimensions (W x H x D): 4 1/4 x 5 3/8 x 3 3/4 inches (106 x 135 x 93 mm)
  • Mass: 2 lb. 6.8 oz. (Approx. 1.2 kg)
  • Input / Output connectors:
    • Extension interface connector: 144 pin (1), supplies power
    • DC IN connector: XLR 4-pin, male (1)
    • DC OUT connector: Round type 4-pin, female (1)
    • Battery connector: 5-pin (1)
  • Recording format:
    • Video:
      • F55RAW format
      • X-OCN format
    • Audio: Linear PCM (48 kHz / 24-bit), 4-channel



Click to download

Sony AXS-R7
4K RAW Recorder for PMWF5 & F55

OUR PART #  AXSR7

Product Information:

The Sony AXS-R7 Portable Memory Recorder attaches seamlessly to the high end F55 and F5 CineAlta cameras, speeding up the 4K production workflow without compromising quality. The AXS-R7 doubles 4K RAW recording from 60 fps up to 120 fps for the F55 camera compared to previous Sony recorders. For shooting at higher frame rates, the recorder captures 2K RAW at up to 240 fps for the F55 and F5, for playback with 10x super slow motion. Working with high-speed AXSM™ A Series memory cards, the recorder features dual memory card slots for extra security and to extend recording times. The recorder also offers 4K RAW cache recordings up to 30 seconds while in standby mode. The tough, all-metal casing makes the AXS-R7 the ideal companion to the F55 and F5 for all kinds of high-end drama, documentary and wildlife productions.

Sony AXS-R7 Includes:

  • Top cover (1)
  • Retaining screws (4)
  • Operating Instructions
  • Warranty

Sony AXS-R7 Features:

  • High speed 4K RAW capture
  • 30-second RAW cache recording
  • Durable dust and splash-proof metal design
  • Dual memory card slots support high-speed AXSM memory card

Sony AXS-R7 Specifications:

  • Power requirement: 11 V to 17 V DC
  • Power consumption:
    • Approx. 27 W (4K 120FPS)
    • Approx. 24 W (4K 60FPS)
  • Operating temperature: 32°F to 104°F (0°C to 40°C)
  • Operating humidity: 20% to 90%
  • Storage temperature: -4°F to 140°F (-20°C to + 60°C)
  • Dimensions (W x H x D): 4 1/4 x 5 3/8 x 3 3/4 inches (106 x 135 x 93 mm)
  • Mass: 2 lb. 6.8 oz. (Approx. 1.2 kg)
  • Input / Output connectors:
    • Extension interface connector: 144 pin (1), supplies power
    • DC IN connector: XLR 4-pin, male (1)
    • DC OUT connector: Round type 4-pin, female (1)
    • Battery connector: 5-pin (1)
  • Recording format:
    • Video:
      • F55RAW format
      • X-OCN format
    • Audio: Linear PCM (48 kHz / 24-bit), 4-channel



Click to download
