Intelix DL-DA14S
DigitaLynx HDMI distribution Amp 1X4 Slim with 4K support

OUR PART #:  DL-DA14S

The Intelix DL-DA14S DigitaLinx is a 1 input to 4 output HDMI distribution amplifier. The DL-DA14S supports 3D and 4K video resolutions as well as multichannel audio formats.
Learn More
Our Price: $199.95
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix DL-DA14S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix DL-DA14S DigitaLinx is a 1 input to 4 output HDMI distribution amplifier. The DL-DA14S supports 3D and 4K video resolutions as well as multichannel audio formats.

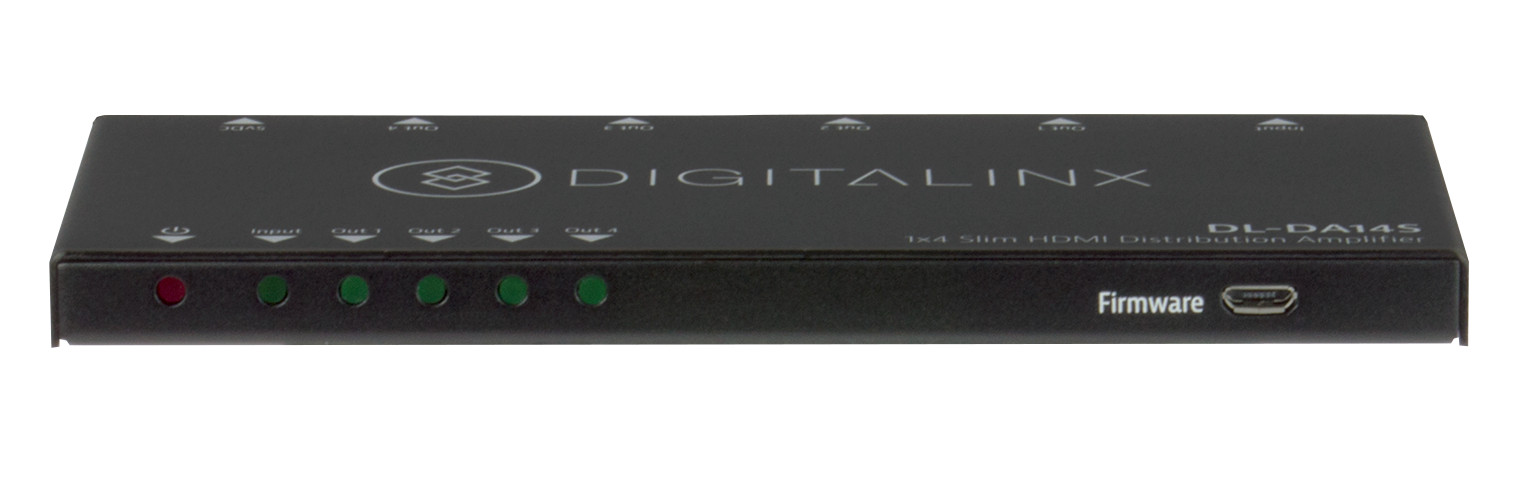

The EDID setting for the DL-DA14S is defined by the highest compatible resolution of all connected displays. The DL-DA14S features diagnostic LEDs on the front of the product indicating the state of the connections into and out of the unit.

Applications:

  • HDMI multimedia distribution
  • Digital signage, restaurant and bar, residential HDMI

Intelix DL-DA14S Includes:

  • Installation guide
  • Power supply
  • AC adapters (AU, EU, UK, and US)
  • Rubber feet
  • Mounting “L” brackets (2 ea)
  • Mounting screws (4 ea)

Intelix DL-DA14S Features:

  • HDMI v1.4, HDCP 1.1 and DVI 1.0 Compliant
  • Allows distribution of 4 Outputs
  • Supports 3D, 4Kx2K, and Deep Color
  • Automatic Discovery of Monitor EDID

Intelix DL-DA14S Specifications:

  • Product Line: DL-DA14S
  • I/O Connections:
    • HDMI Input: One (1) HDMI Type A Receptacle
    • HDMI Outputs: Four (4) HDMI Type A Receptacle (1 per output)
    • 5v DC Power: One (1) 2.35 mm Outside Diameter, 0.7 mm Inside Diameter Barrel (EIAJ-1)
    • Firmware Port: One (1) Mini USB Type B Receptacle
  • Supported Audio and Video:
    • Maximum Data Rate: 10.2 Gpbs
    • HDTV Video Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p 3D, 4Kx2K (24, 25, and 30 Hz)
    • VESA Video Resolutions: Up to 1920x1200
    • Embedded Audio Compatibility: Up to PCM 5 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Maximum Passive HDMI Distance: 5m (16 ft)
    • Compliance: HDMI 1.4, HDCP 1.1, DVI 1.0
  • Chassis and Environmental:
    • Enclosure: Painted Aluminum
    • Dimensions (HxWxD): 11 mm x 152.4 mm x 70.4 mm (0.43"x 6.00"x 2.77")
    • Shipping Weight: 0.83 kg (1.87 lbs)
    • Operating Temperature: 0° to +40° C (+32° to +104° F)
    • Operating Humidity: 20% to 90%, Non-condensing
    • Storage Temperature: -10° to +60° C (+14° to +140° F)
    • Storage Humidity: 20% to 90%, Non-condensing
  • Power, ESD, and Regulatory:
    • Maximum Power Consumption: 5 watts
    • Power Supply Input Voltage: 100-240v AC at 50/60 Hz at 0.5 A
    • Power Supply Output Rating: 5v DC at 1 A
    • ESD Protection: 15kV
    • Device Regulatory: CE, RoHS
    • Power Supply Regulatory: CE, RoHS, TUV, UL, SGS
  • Warranty: 2 years
  • Diagnostic Indicators: Power LED, Input LED, Four (4) Output Status LEDs
