Rosco Laboratories LITEPAD-HO90
3"x12" LED Flat Panel Light Source

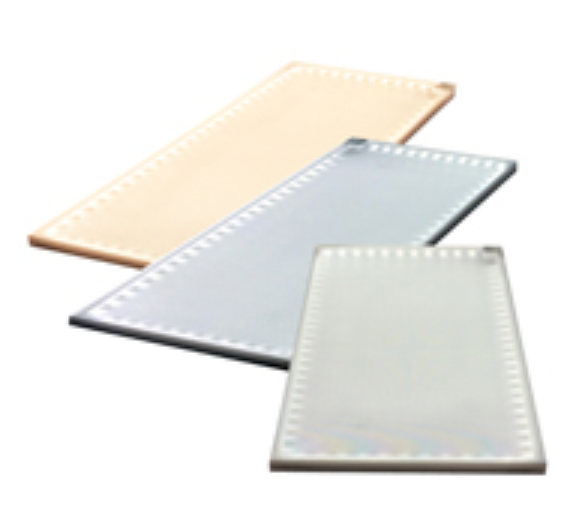

The Rosco Laboratories' LITEPAD-HO90 is a flat panel LED light source providing even, indirect lighting.
Learn More
Our Price: $199.00
Write the first review.
Rosco Laboratories LITEPAD-HO90
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Rosco Laboratories' LITEPAD-HO90 is a flat panel LED light source providing even, indirect lighting. At only 8mm thick, LitePad HO90 is perfectly suited to virtually any backlighting installation or to projects where only a cool, low profile light source can be used. LitePad's patented system is comprised of indirect LED sources machined into a cast acrylic panel. Light amplifying channels etched into the rear surface of the plastic sheet smoothly and evenly distribute light across the entire surface of the LitePad. This durable and reliable construction can be fabricated in virtually any size or shape and is easily installed.

Rosco Laboratories LITEPAD-HO90 Features:

  • LED Placement: Fully Customizable
  • LED Spacing: 11mm
  • IP Rating: IP61 Standard
  • IP67 available on request
  • Panel Thickness: 8mm
  • Panel Weight: 2 lb/ft2 (9.5 kg/m2)
  • Operating Temp Range: -22°F (-30°C) to +104°F (+ 40°C).

Rosco Laboratories LITEPAD-HO90 Specifications:

  • Size: 3"x`12"
  • CRI: 90+
  • Color Temp Options: 2800K (Warm), 4000K (Neutral), 5300K (Cool) white
  • Input Power: 12 VDC
  • Lead / Connector: 20 AWG wire with 2.1mm x 5.5mm barrel connector
  • Three Standard Lead Wire Exit Options: Corner, Notched Corner, Rear of Panel
