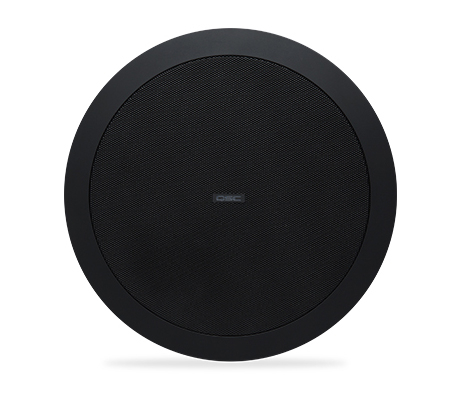

QSC AD-C6T
6" Ceiling speaker, Black, Sold In Pairs

OUR PART #:  AD-C6T-BK

The QSC AD-C6T is a 6" ceiling speaker with consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications.
Learn More
Our Price: $190.00
Write the first review.

This product must be purchased in multiples of 2

QSC AD-C6T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The QSC AD-C6T is a 6" ceiling speaker with consistent tonal characteristics across the entire AcousticDesign™ family in both surface or ceiling applications. DMT (Directivity Matched Transition™) waveguide ensures smooth, uniform frequency response over the coverage area. This speaker features a snap-fit magnetic grille, 3x double stepped, long travel dog-ear blind mount system, and a blemish-free removable logo.

Note: These speakers are priced separately but sold in pairs. For more information please contact your Full Compass Sales Pro.

QSC AD-C6T Features:

  • Advanced Intrinsic Correction™ voicings available viaQ-SYS™ networked audio processing platforms, including CXD amplifiers
  • Low-saturation and low-loss 70/100V transformers with16 Ohm bypass
  • Removable conduit cover plate, also available as accessory for pre-install wiring

QSC AD-C6T Specifications:

  • LF Transducer: 165 mm [6.5 in] weather resistant paper cone woofer
  • HF Transducer: 25 mm [1 in] aluminum dome tweeter
  • Rated noise power: [Wrms] 1 60
  • Nominal Impedance: [ohms] 16
  • Transformer Taps:
    • 70V: 60, 30, 15, 7.5 W
    • 100V: 60, 30, 15 W
  • Effective frequency range: 63 Hz – 20 kHz
  • Rated coverage (-6 dB): 140° conical DMT
  • Directivity factor: 6.5
  • Directivity index: 8
  • Sensitivity [dB]: 88
  • Maximum continuous SPL [dB]: 106
  • Maximum peak SPL [dB]: 112
  • Enclosure material: ABS baffle on powder coated steelback can
  • Grille material: Powder coated steel
  • Cutout dimension: 245 mm [9.65 in]
  • Net weight: 4.3 kg [9.5 lb]
  • Product dimensions (Diameter x Height): 280 x 237 mm [11.02 x 9.33 in.]
  • Shipping weight 12.6 kg [27.8 lb] (pair packed)
  • Shipping dimensions (H x W x D) 330 x 737 x 381 mm [13 x 29 x 15 in] (pair packed)
QSC AD-MR6  Flanged Mud Ring Bracket for AD-C6T, AD-C4T-LP
QSC AD-MR6 Flanged Mud Ring Bracket for AD-C6T, AD-C4T-LP
The QSC AD-MR6 is a flanged mud ring bracket for pre-installation of AD-C6T, AD-C4T-LP.
