AJA Video Systems Inc CRV44-BNC-R0
8-lane PCIe 2.0, 4 x SDI on Full Size BNC

OUR PART #:  CRV44-BNC-R0

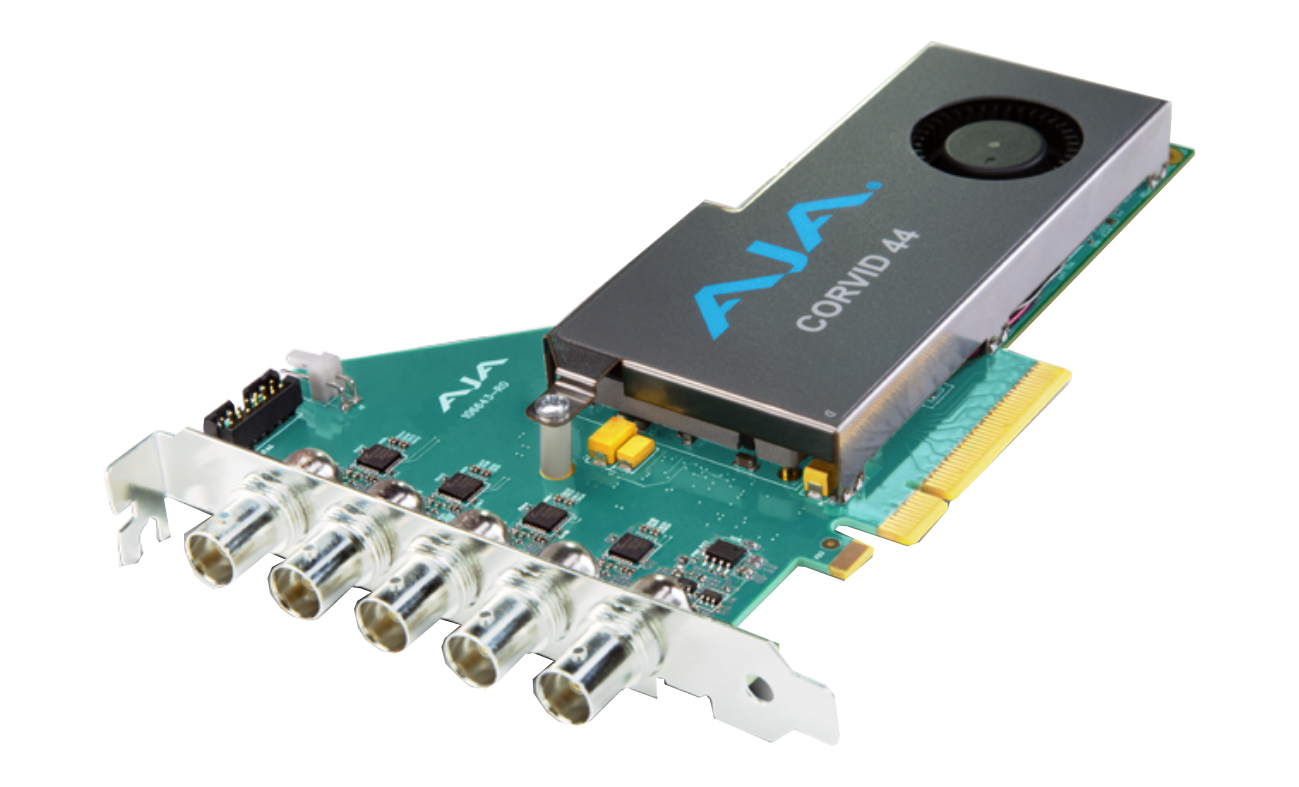

Increase your video and audio I/O capacity with AJA Video Systems' Corvid 44 BNC with 3G-SDI connectivity over full size BNC connectors.
Learn More
Our Price: $1,895.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc CRV44-BNC-R0
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Increase your video and audio I/O capacity with AJA Video Systems' Corvid 44 BNC with 3G-SDI connectivity over full size BNC connectors. Configure each SDI connection individually as input or output and mix formats for up to 4 HD or SD channels on a single card. As demand rises for higher resolutions, combine SDI connections into a single 4K/UHD channel, allowing incredible flexibility and future proofing.

AJA Video Systems CRV44-BNC-RO Features:

  • PCIe Express Gen 2.0 8-lane
  • Up to four independent channels 3G, HD, SD-SDI I/O(Channels must use the same master clock. Eg, 29.97 and 59.94)
  • All SD/HD/2Kx1080/4K video formats
  • 3G input/output for High Frame Rate (HFR) support.
  • 8/10-bit YCbCr and 12- bit RGB frame buffer formats
  • Two independent Mixer/Keyer widgets.
  • Four independent 16-ch 48kHz SDI embedded audio I/Oengines
  • Analog Color Black or HD Tri-Level Sync
  • 3-year warranty

AJA Video Systems CRV44-BNC-RO Specifications:

  • Video Formats:
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30, 48 A/B, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 25, 29.97, 30
    • (HD) 720p 50, 50.94, 60
    • (SD) 625i 25
    • (SD) 525i 29.97
  • Video Input Digital: Four 3G-SDI BNC
  • Video Output Digital: Four 3G-SDI BNC
  • Audio Input Digital: 16-Channel 24-bit SDI embedded,48 kHz synchronous
  • Audio Output Digital: 16-Channel 24-bit SDI embedded,48 kHz synchronous
  • Size (WxDxH): 0.727" × 6.6” × 2.713” (18.47mm ×167.65mm × 68.90mm)
  • Weight: 0.4 lb (0.2 kg)
  • Power: 17 watts typical, 19 watts max
  • Environment:
    • Safe Operating Temperature: 32°-104°F (0°-40°C)
    • Safe Storage Temperature (Power OFF): -40°-140°F (-40°-60°C)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
    • Airflow across the board for fanless models
      • 100LFM @25°C or lower, computer chassis must have vented opening to exterior, immediately adjacent to PCIe shield (heatsink side), to permit 100LFM across heatsink
