Soundcraft ViO-MI
4-Channel Mic/Line Input Card for Vi Series Consoles

OUR PART #  RS2423SP

Our Price: $606.48
List Price: $778.00
You save 22%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

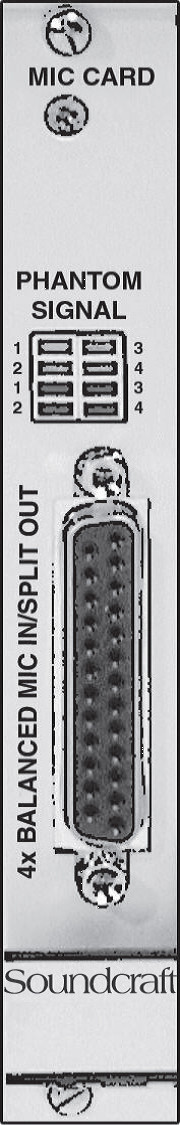

The ViO-MI (part no. RS2423SP) from Soundcraft is an optional electronically balanced, four-channel mic/line input card that enables Soundcraft's Vi Series™ consoles to interface with a wide range of other systems and audio networks using industry standard protocols.

Soundcraft ViO-MI Mic/Line Input Card Features:

  • 24 bit, 48 kHz A/D Converters (mic/line sensitivity,gain setting in 1dB steps, low-cut filter, soft clipping, and 48V phantom power)
  • 96 kHz, 88.2 kHz, 48 kHz, or 44.1 kHz operation
  • Delta-sigma conversion
  • Four analog microphone/line inputs, electronically balanced
  • Four split analog outputs (not used)
  • Green "signal present" and yelow "phantom power" LED indicators per channel
  • Inputs and split outputs on standard 25-pin D-type connector (female)
  • Compatible with Soundcraft Vi6 Local Rack, Compact Stagebox, Vi1, and Vi3000

Soundcraft ViO-MI
4-Channel Mic/Line Input Card for Vi Series Consoles

OUR PART #  RS2423SP

Product Information:

The ViO-MI (part no. RS2423SP) from Soundcraft is an optional electronically balanced, four-channel mic/line input card that enables Soundcraft's Vi Series™ consoles to interface with a wide range of other systems and audio networks using industry standard protocols.

Soundcraft ViO-MI Mic/Line Input Card Features:

  • 24 bit, 48 kHz A/D Converters (mic/line sensitivity,gain setting in 1dB steps, low-cut filter, soft clipping, and 48V phantom power)
  • 96 kHz, 88.2 kHz, 48 kHz, or 44.1 kHz operation
  • Delta-sigma conversion
  • Four analog microphone/line inputs, electronically balanced
  • Four split analog outputs (not used)
  • Green "signal present" and yelow "phantom power" LED indicators per channel
  • Inputs and split outputs on standard 25-pin D-type connector (female)
  • Compatible with Soundcraft Vi6 Local Rack, Compact Stagebox, Vi1, and Vi3000
