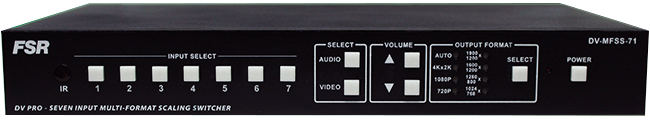

FSR, Inc DV-MFSS-71
7x1 Multi-Format Scaling Switcher

OUR PART #:  DV-MFSS-71

The FSR DV-MFSS-71 is a 7 X 1 scaling switcher.
Learn More
Our Price: $1,685.78
List Price: $1,995.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

FSR, Inc DV-MFSS-71
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The FSR DV-MFSS-71 is a 7 X 1 scaling switcher. This switcher has seven multi-format inputs (four HDMI, one DisplayPort, one DVI-I and one VGA/RGB/YPbPr) and onr HDMI out that supports scaled resolutions up to 4k x 2k 30hx. Each input also has audio inputs available via captive screw terminals and has a stereo output as well. The 1 rack unit high scaling switcher can be controlled from the front panel, via RS-232, or IP via the integrated GUI Control.

Applications:

  • Video Wall System
  • Large LED Sign Board
  • Medical Imaging Equipment
  • TV Broadcast Station
  • Auditorium
  • Conference Room
  • Church Video System

FSR DV-MFSS-71 Switcher Features:

  • 7 x 1 seamless scaling switcher
  • Four HDMI, one DisplayPort, one DVI (DVI-I Connector Digital Only), one RGB/YPbPr (HD-15)
  • Each source input is automatically scaled to match the optimal output resolution
  • HDCP compliant.
  • Seamless rapid switching between any of the seven inputs.
  • Each video input also has an unbalanced stereo audio input via captive screw terminals
  • Additional Mix Stereo Audio Input Available
  • Easy-to-use front panel control, Web GUI, IR, RS- 232 and IP control as well
  • Can be controlled via FSR’s FLEX Touch Panel Control System with pre-made templates available
  • 1 RU Height, 19” width standard enclosure, rack mountable design

FSR DV-MFSS-71 Switcher Specifications:

  • HDMI & DisplayPort Inputs:
    • Supports HDMI 1.4 8/10/12-bit deep color modes
    • Resolutions up to 4K 2160p (3840x2160) @30Hz (300 Mhz)
    • Supports MHL2.0 input resolution up to 1080p
    • DVI operates up to 165MHz (up to UXGA @ 60Hz)
    • HDMI supports uncompressed Audio Channels (7.1@ 192KHz)
    • HDMI supports Lip Sync
    • Supports embedded stereo audio on Display Port
  • DVI-I Input:
    • Resolutions up to 2560 x 1600 @ 60Hz
    • Display Port v1.2a complaint (Supports HBR)
    • 2-channel L-PCM & IEC 61937 compressed audio formats
  • VGA / RGB / YPbPr Input: Up to 1920 x 1440 @ 60Hz
  • Color Space: YUV, RGB
  • Standards Conversion: Converts the input signal to the output EDID (E.G. DVI signal to HDMI, RGB to YCbCr 4:2:2)
  • HDMI Output:
    • 4K 2160p (3840 x 2160) @30Hz, 1920 x 1080 @60Hz, 1280 x 720 @60Hz,
    • 1900 x 1200 @60Hz, 1600 x 1200 @60Hz, 1280 x 800 @60Hz,
    • 1024 x 768 @60Hz, HDMI embedded audio output
  • Audio Output:
    • Supports Multi-Channel Coaxial
    • Supports stereo analog audio output
  • Video Input:
    • Four HDMI Type A 19-pin, female,
    • Two DisplayPort (Full Size) 20-pin, female,
    • VGA DB-15 15-pin, female
  • Video Output: HDMI Type A 19-pin, female
  • Audio Input:
    • Seven Program audio inputs via captive screw terminals
    • Mix audio input via captive screw terminals
  • Audio Output:
    • Stereo via captive screw terminals
    • Optical
  • RS-232: DB-9, female
  • IP Control (LAN): RJ-45
  • USB (Reserved): Type A 4-pin, female
  • AC Power: 12V, Max Current: 1.5A 110~240V AC Adapter
  • Power Input: 110~240V AC
  • Power Consumption: 15W (max.)
  • Dimensions (W x H x D): 17.3” x 1.7” x 10.7” (440mm x 43.5mm x 272mm)
  • Unit Weight: 7.3 lbs (3.3 kg)
