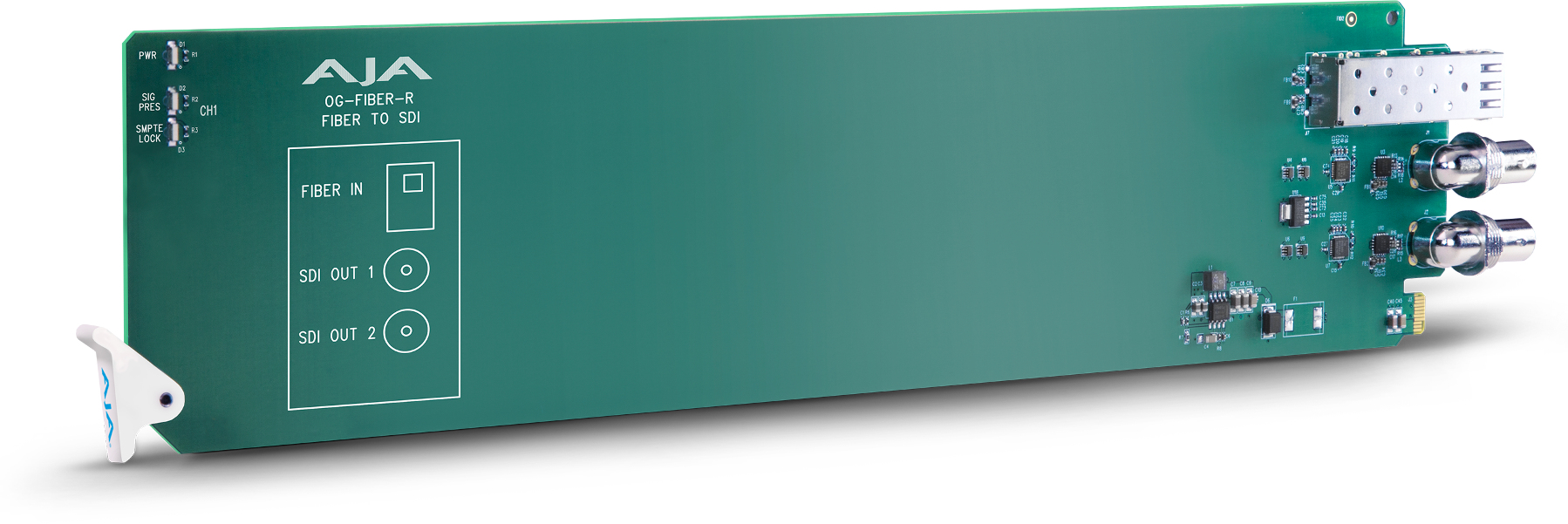

AJA Video Systems Inc OG-FIBER-R
openGear 1-Channel Fiber to SDI Converter

OUR PART #:  OG-FIBER-R

AJA's OG-FIBER-R, part of their OG-FIBER series, is an openGear-compatible...
Learn More
Our Price: $445.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc OG-FIBER-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AJA's OG-FIBER-R, part of their OG-FIBER series, is an openGear-compatible, state-of-the-art single-channel Fiber to SDI converter that allows for the extension of SDI signals up to 10km over standard single-mode fiber optic cable. Its fiber input performs re-clocking of the incoming signal with best-in-class input jitter tolerance. It supports single mode fiber cable as well as SDI rates of 270Mb, 1.5Gb, and 3Gb.

The AJA openGear Series - Compatibility
The openGear specification gives assurance of AJA card compatibility with openGear products from other certified openGear partners. A product list that's ever-growing, ensures that the future of rackframe products lies withing the openGear specification.

Connectivity
The Fiber input features best-in-class reclocking input jitter tolerance, with supported SDI rates of 270Mb, 1.5Gb, and 3Gb. Offers single mode fiber cable support.

AJA OG-FIBER-R Features:

  • Automatic detection and re-clocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
  • Inputs: Single mode optical fiber, LC connector
  • Outputs: 2x SDI, BNC connectors (duplicate outputs)
  • Bypass mode: 50mb to 3gb – auto bypassing for non SMPTE rates
  • Wavelength: 1260 - 1620 nm
  • Optical Sensitivity: -25dBm typical
  • Power: 2.5 watts
  • Hot-swap capable
  • Compatible with DFR-8321 and OG3 openGear frames

AJA OG-FIBER-R Specifications:

  • Video Formats: 125Mbps - 3Gbps, format agnostic
  • Video Input Digital:
    • 1 x Single mode optical fiber, LC connector, SMPTE-297
    • Frequency: 1260-1620nm
    • Minimum Input Power:
      • 270Mbps, 1.5Gbps: -20 dBm
      • 3.0Gbps: -18 dBm
  • Video Output Digital: 2 x 3G-SDI BNC, SMPTE-259/292/424
  • Reclocking:
    • 270Mbps, 1.483Gbps, 1.485Gbps, 2.966Gbps, 2.970Gbps - Auto Select
      All other rates are passed through and not re-clocked
  • Physical:
    • Size: openGear standard form-factor, front slot and rear card
    • Slots: 2 slots required for each card
    • Power: openGear frame compatible, 2.5 watts max per card
    • Safe Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
    • Safe Storage Temperature Range (power OFF): -40°F to 140°F (-40°C to 60°C)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <10,000ft (<3,000m)
