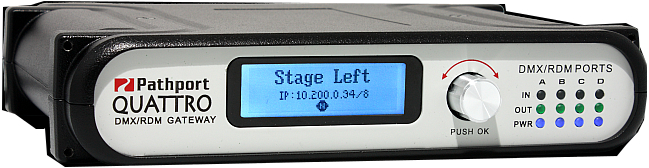

Pathway Connectivity P6311 Pathport Quattro
4-Port Node with Rear XLR5F

OUR PART #:  P6311

Four ports for less than twice the price.  Same compact size - two units fit side-by-side in 1RU of space.
Learn More
Our Price: $1,240.97
List Price: $1,340.00
You save 7%!
Write the first review.
Pathway Connectivity P6311 Pathport Quattro
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Four ports for less than twice the price.  Same compact size - two units fit side-by-side in 1RU of space.  PoE operation makes it an ideal choice for truss mount operation.  Uses the same encoder/front panel LCD interface as the Octo - most users won't need a computer to configure it.

See Attached for Specifications

Pathway Connectivity Pathport Quattro Features:

  • Four DMX512 ports, individually configurable
  • IP, subnet mask, port direction, protocolreceive/send, basic  patching - and more - all settable from the frontpanel
  • 8-way DMX routing per port, including priority andmerge on a chanel-by-channel basis, available with use of free PathportManager
  • 5 configuration software
  • RDM gateway, in conjunction with Pathport Manager5
  • Simple, reliable firmware upgrade process
  • DMX output speed and signal loss behavior user-set
  • Normal operation uses Power-over-Ethernet (Class 2,8W maximum)
  • When PoE is not available, may operate from anauxiliary 24VDC input (by others)
  • Rack ears included
  • Truss and wall mount kits available as accessories
  • Multiple connector styles available on request, including XLR5, XLR3,terminal block and RJ45 EtherCon
