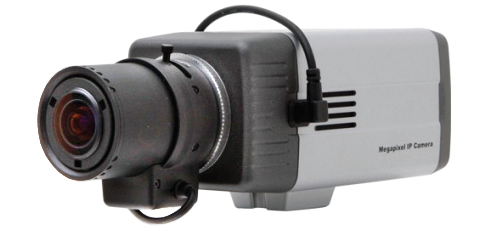

Marshall Electronics VS-5326-CVBS
Full HD IPTV Box Camera with CVBS/3G-SDI/HDMI Output

OUR PART #:  VS-5326-CVBS

A 2.0 Megapixel 1080p60 IP box camera from Marshall Electronics, the VS-5326-CVBS features CVBS/3G-SDI/HDMI outputs, True Wide Dynamic Range (WDR)...
Learn More
Our Price: $815.15
List Price: $959.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics VS-5326-CVBS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A 2.0 Megapixel 1080p60 IP box camera from Marshall Electronics, the VS-5326-CVBS features CVBS/3G-SDI/HDMI outputs, True Wide Dynamic Range (WDR), Quadruple Streaming capabilities, and much more.

Marshall Electronics VS-5326-CVBS Features:

  • 60FPS @ 1920 x 1080
  • P-Iris (Optional)
  • True WDR
  • Dual Power (DC/PoE)
  • Quadruple Streaming
  • ONVIF, PSIA Compliant

Marshall Electronics VS-5326-CVBS Specifications:

Camera

  • Image sensor: 1/2.8” Progressive scan CMOS
  • Lens type: Auto DC iris, P-Iris (option)
  • Lens mount: C/CS mount
  • Zoom: Lens dependent
  • Focal length: Lens dependent
  • Maximum aperture ratio: Lens dependent
  • Angle of view: Lens dependent
  • Minimum illumination: 0.07lx (Color) ~ 0.001lx (B/W) @F1.2 with 50IRE
  • Electronic shutter speed: p30: 1/30 ~ 1/50,000sec, p60: 1/60 ~ 1/50,000sec
  • Privacy masking: 8 regions (polycon windows)
  • Flip mode: Horizontal, Vertical
  • Image enhancement: AGC, AE, AWB, TDN, 2D/3DNR, DSS, True WDR, Defog, DIS, DPC, LSC
  • IR LED: N/A

Video

  • Compression: H.264, MJPEG
  • Frame rate: Max 60fps @ 1920x1080
  • Bitrate:
    • Primary: 32Kbps ~ 16Mbps
    • Secondary x3: 32Kbps ~ 4Mbps
  • Resolutions: 352x240 ~ 1920x1080
  • Streaming: Primary: H.264, Secondary x 3: H.264/MJPEG
  • Burn-in OSD: Multi-lingual
  • Output: CVBS/3G-SDI/HDMI

Audio

  • Compression: G.711 / AAC
  • Sampling rate: G.711: 8 KHz, AAC: 32 kHz / 44.1 kHz / 48 kHz
  • Bitrate: G.711: 64Kbps, AAC: 64Kbps/128Kbps
  • Streaming: G.711: Full-duplex, AAC: Half-duplex
  • I/O: 1 x Line-In (mono, RCA type), 1 x Line-Out (mono, RCA type)

Event

  • Event sources: Motion, Sensor input, Client disconnection
  • Event actions: Notification (E-mail), FTP, PTZ preset, Alarm control, Recording

General

  • Housing: IP: N/A
  • Certifications: CE, FCC, KC, RoHS
  • External devices:
    • 1 x Sensor-In (dry contact, NO/NC)
    • 1 x Alarm-Out (dry contact, NO)
    • 1 x RS-485 port
  • Edge storage: SD/SDHC slot
  • Power supply: Min DC12V/1.5A, PoE(Power over Ethernet) : 802.3af
  • Power consumption: DC12V/PoE: Max DC12V/8.76W
  • Operating conditions: -10°C ~ 50°C ( 14°F ~ 122°F )/20% ~ 80% RH
  • Dimensions: 66.60 W x 127.20 L x 67.20mm H
  • Weight: 376g
