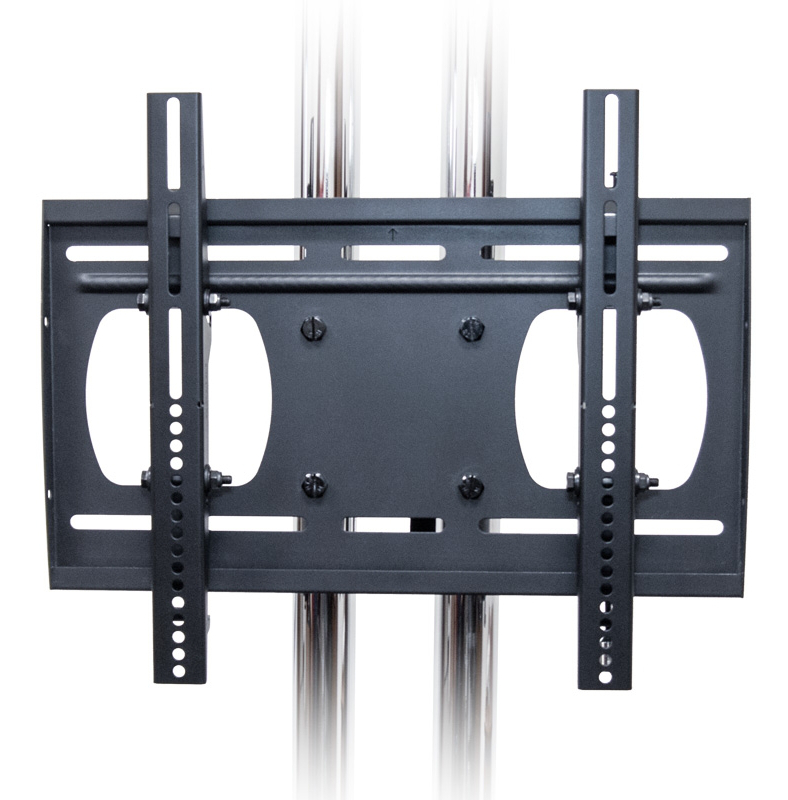

Premier Mounts PTDM2
Versatile Tilting Mount for Flat Panels up to 100 lbs


Call for price! Not available online.

The Premier Mounts PTDM2 Versatile Tilting Mount is a low-profile mount for flat panels up to 100 lb./45.4 kg. The PTDM2 can be mounted to the wall, and also has a 4.5” bolt pattern that makes it extremely versatile to use with adapters to suspend from the ceiling, as well as mount to carts and stands. This low profile mount can be mounted in landscape or portrait orientations. Other features include 10° of continual downward tilt, post-installation leveling, and built-in lateral shift.

Premier Mounts PTDM2 Versatile Tilting Mount Features:

  • Easily mounts to walls, and 4.5” Bolt Pattern makes it versatile to use adapters to mount to carts & stands, or suspend from the ceiling
  • Mounts in portrait or landscape orientations
  • 10° of continual downward tilt
  • Low-profile mount allows displays to be less than 2" from their mounting surface
  • Optional extension adapters bring VESA pattern to 600x400 in landscape mode
  • Open back panel design for easy cable and electrical access
  • Lock-It™ security barrel included
  • Post-installation leveling system
  • Built-in lateral shift
  • Mounting kit includes wood and concrete stud attachment hardware

Premier Mounts PTDM2 Versatile Tilting Mount Specifications:

  • Weight: 13.00 lbs (5.9 kg)
  • Weight Capacity per Mount: 100 lbs (45.5 kg)
  • Total Weight Capacity: 100 lbs (45.5 kg)
  • Dimensions:
    • Width: 20.80" (528 mm)
    • Height: 16.50" (419 mm)
    • Depth: 1.99" (51 mm)
  • Mounting Pattern Type: Range
  • Mounting Pattern: 200 x 200 mm (Min) - 400 x 400mm (Max)
  • Typical Display Sizes: 46.00" & up (NOTE: Display weight & VESA pattern are the most important factors for determining mount compatibility)
  • Tilt: +10.00°
  • DIM Sizes: 18.00" W x 4.00" H x 21.00" D  (457 mm x102 mm x 533 mm)
