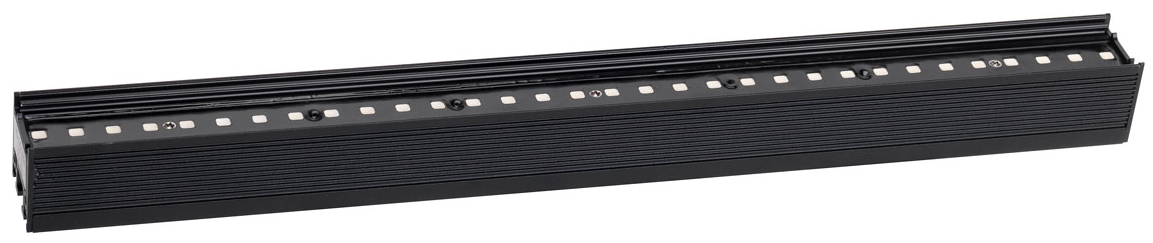

Martin Professional VDO Sceptron 10 [320]
320mm (12.6") LED Pixel Bar, with 10mm Pitch, Manufacturer. Part #: 90357650

OUR PART #:  VDO-SCEPTRON-10-320

A linear outdoor-rated LED video fixture made for the rental market...
Learn More
Our Price: $358.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Martin Professional VDO Sceptron 10 [320]
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A linear outdoor-rated LED video fixture made for the rental market, the Martin Professional VDO Sceptron™ 10 [320] features a 10mm pixel pitch and a wide range of optical accessories offering a wide variety of looks. Driven by the Martin P3 System Controller family for easy configuration, mapping and setup, it's also backwards compatible with DMX for smaller setups. Integrated power and data cabling allows for long daisy-chains with many fixtures per cable-run, with flexibility in power supply placement (backstage/up to 50m away) giving a clean setup, and avoiding several driver boxes and messy cabling. This is the 320mm (12.6") version.

The VDO Sceptron 10 offers brightness, as well as easy setup, mapping and configuration, plus full calibration for optimal consistency.

NOTE: This unit ships with a white square diffuser (shown). Other diffusers and accessories available separately. Contact your Sales Pro for more information.

Martin Professional VDO Sceptron 10 [320] Features:

  • 320mm Length
  • 10mm Pixel Pitch
  • 250 cd per meter calibrated
  • 750 lumen per meter calibrated
  • High-quality 16-bit per color image processing technology
  • Pixel-level brightness and color calibration for optimal image quality
  • P3/DMX controllable (automatic protocol detection)
  • Intuitive mapping and addressing via P3 System Controller
  • Combined power/data input (single cable for power and data input)
  • Supported by integrated power and data processor (P3 PowerPort 1500 or P3PowerPort 1000 IP) and simple cabling system

Martin Professional VDO Sceptron 10 [320] Specifications:

  • Manufacturer. Part #: 90357650

Physical

  • Length: 320mm (12.6") version
  • Width: 27mm (1.07")
  • Height: 28mm (1.10")
  • Weight: 0.81 lbs per foot (1.2 kg / m)

Control and Programming

  • Control options: Martin P3™ System Controller via Martin P3™ PowerPort 1500 / Martin P3™ PowerPort 1000 IP, and/or DMX
  • Protocol detection: Automatic
  • Control modes: RGB, basic, segment, and pixel-level
  • Setting and addressing: P3 System Controller or RDM-compliant controller
  • Control resolution: 16-bit (P3) or 8-bit (DMX) control of each color
  • Color and intensity calibration: Pixel-level
  • DMX channels: 3/10/13/22/103/307
  • DMX compliance: USITT DMX512-A
  • RDM compliance: ANSI/ESTA E1.20
  • Firmware update: Via Martin P3™ System Controller

Control/User Interface

  • Device status: Multi-color visual indication
  • Device test and reset: Magnetic pushbutton to call up local test patterns and reset device

Optics

  • Options*:
    • Open Front
    • Flat Diffuser
    • Flat Smoked Diffuser
    • Round Diffuser
    • Round Smoked Diffuser
    • Square Diffuser
    • Square Smoked Diffuser
    • Tube Diffuser
    • Tube Smoked Diffuser
      *All options can be interchanged at any time.
  • Minimum LED lifetime: 50 000 hours (to >70% luminous output)**
    **Figure obtained under manufacturer’s test conditions.

Photometric Data

  • Color resolution: 16-bits per color (48-bits per pixel)
  • Viewing angle: 120° x 120°
  • Pixels per meter: 100
  • Pitch (pixel center-to-center): 10.00mm
  • Luminous intensity, calibrated mode: 250 cd per meter*
  • Total output, calibrated mode: 8 333 nits (modules spaced 30mm center-to-center)*
  • Total output, calibrated mode:750 lumens per meter*
    *Preliminary data, figures are approximate.

Video Processing

  • Brightness control
  • Gamma correction and control
  • Color temperature control
  • Color space control
  • Calibration processing
  • Synchronization

Signal Protocol

  • Martin P3 (via Martin P3™ PowerPort) or DMX

Construction

  • Base: Extruded aluminum profile
  • Color: Matt black
  • Protection rating: IP65
  • RoHS compliant

Installation

  • Orientation: Any
  • Mounting: Slot for locking nuts on back of profile (M6) and optional sliding bracket for M12 bolt
  • Mounting options: Flat surface at any angle, pedestal or other suitable support

Connections

  • Power and Data Input: 6-pin Custom (BBD) IP66-rated
  • Power and Data Thru: 6-pin Custom (BBD) IP66-rated

Electrical

  • Nominal Input Voltage: 48 VDC +/- 4%
  • Power Supply Options: Martin P3™ PowerPort 1500, P3™ PowerPort 1000 IP, Tripix™ Power or generic 48 VDC PSU
  • Total Power Consumption (at max. intensity, full white): 33 W per meter

Thermal

  • Cooling: Convection
  • Maximum Ambient Temperature (Ta max.): 55° C (113° F)
  • Minimum Ambient Temperature (Ta min.): -20° C (-4° F)
  • Total Heat Dissipation (calculated, +/- 10%): 115 BTU/hr permeter

Approvals

  • EU safety: EN 60950-1, EN 60950-22, EN 62471
  • EU EMC: EN 55032, EN 55024
  • US safety (pending): UL 60950-1, UL 60950-22
  • US EMC: FCC Part 15 Class A
  • Canadian safety (pending): CSA C22.2 No. 60950-1, No. 60950-22
  • Canadian EMC: ICES-003 Class A
  • Australia/NZ: C-Tick N4241
