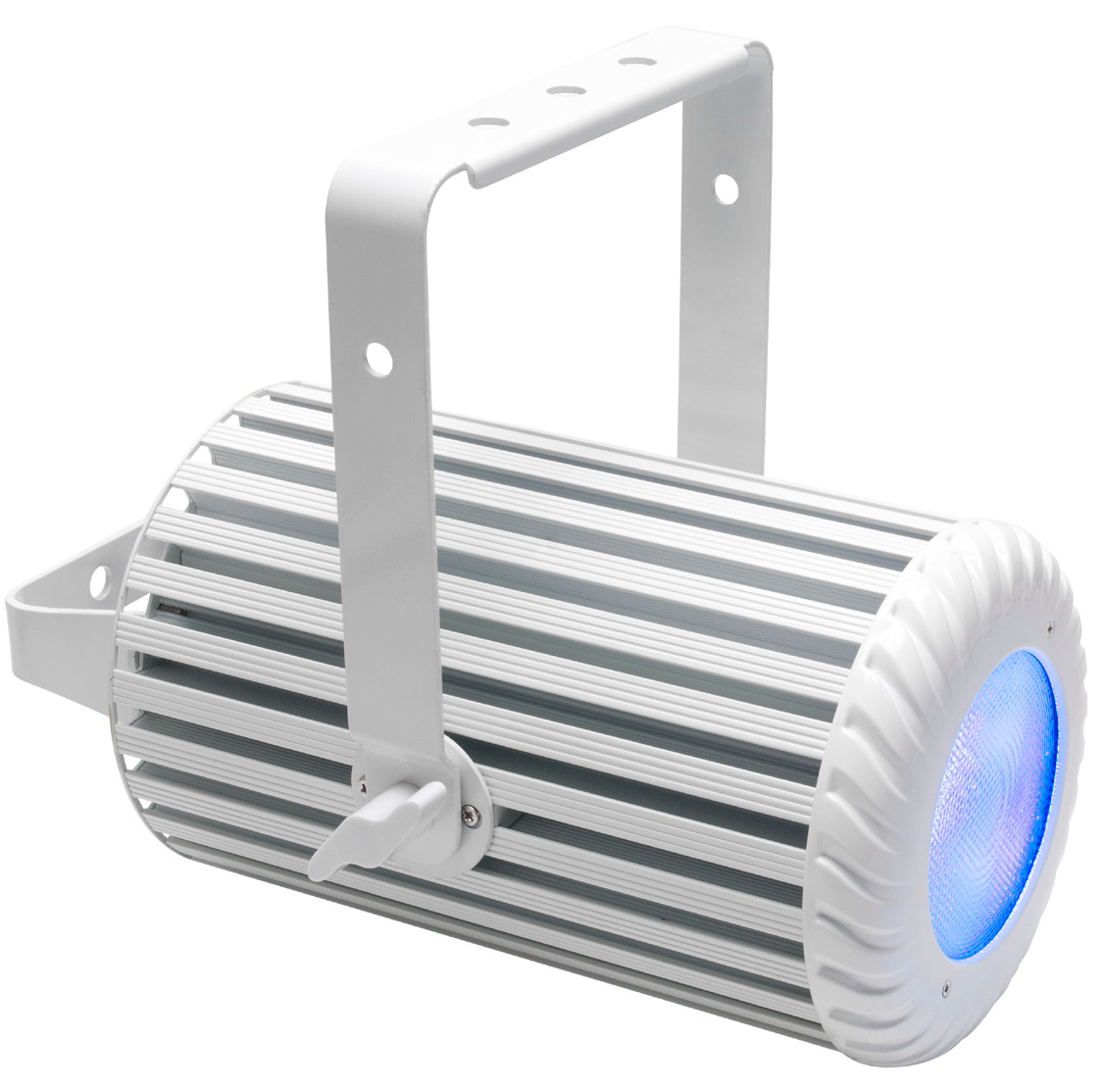

Elation Pro Lighting COLOUR PENDANT WH
110W RGBW LED Wash with Onboard E-Fly Transceiver in White

OUR PART #:  COLOUR-PENDANT-WHT

The Elation Lighting COLOUR PENDANT WH™ wash luminaire (this particular model comes in the White finish.
Learn More
Similar Products

The Elation Lighting COLOUR PENDANT WH™ wash luminaire (this particular model comes in the White finish. Black finish model available separately), part of Elation's Colour Series, features 36x 3W RGBW LEDs producing a 41° beam angle, fully blended color transformations, is convection cooled for silent operation, and adjustable frequency settings providing flicker-free operation for TV and Film. Other features include selectable dimming curves, RDM (Remote Device Management), strobe and color macro effects, 5-pin DMX I/O and powerCON® input connections, LCD menu display with 4 button control panel, internal E-FLY™ extended range wireless DMX transceiver, a multi-voltage universal auto switching power supply (100-250v), removable pendant and yoke mounting brackets, and a separately available exterior shroud kit.

Elation Lighting COLOUR PENDANT WH Includes:

  • (1) COLOUR PENDANT WH Wash Luminaire
  • (1) powerCON Cable

Elation Lighting COLOUR PENDANT WH Features:

  • 41° Beam Angle - 66° Field Angle
  • Fully Blended Color Transformations
  • Adjustable Frequency Settings for Flicker FREE Operation for TV and FILM
  • Convection Cooled / Silent Operation
  • Removable Pendant and Yoke Mounting Brackets
  • E-Fly™ Internal Extended Range Wireless DMX Transceiver

Elation Lighting COLOUR PENDANT WH Specifications:

  • Source:
    • (36) 3W RGBW LEDs
    • 100,000 Hour Average Life*

*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

  • Photometric Data:
    • 3,650 LUX 339 FC @3.3’ (1m) (41°Full ON)
    • 1,020 LUX 95 FC @6.6’ (2m) (41°Full ON)
    • 458 LUX 43 FC @9.8’ (3m) (41°Full ON)
    • 255 LUX 24 FC @13.1’ (4m) (41°Full ON)
    • 164 LUX 15 FC @16.4’ (5m) (41°Full ON)
  • Effects:
    • Strobe and Color Macros
    • Dimming : 0% - 100%
    • Selectable Dimming Curves
  • Control/Connections:
    • 11 DMX Channel Modes (1 / 3 / 4x2 / 5x2 / 6x2 / 7 / 8 / 10)
    • Frequencies (1200Hz, 2400Hz, 4800Hz, 9600Hz)
    • E-Fly Internal Extended Range Wireless DMX Transceiver
    • 4 Button Control Panel and LCD Menu Display
    • 5-pin DMX In/Out
    • RDM (Remote Device Management)
    • powerCON Power In
  • Physical:
    • Dimensions (LxWxH): 14.7" x 9.9" x 12.0" (Horizontal) (374 x 252.5 x 308.8mm)
    • Weight: 14.0 lbs. (6.4 kg)
  • Electrical/Thermal:
    • AC 100-240V - 50/60Hz
    • 110W Max Power Consumption
    • -14°F to 113°F (-10°C to 45°C)
  • Approvals/Ratings: CE | cETLus | IP20
  • Installation:
    • Rigging: Integrated Yoke + Pendant Mounting Brackets
    • Working Position: Any (360°)

NOTE: Specifications and documentation subject to change without notice.
