Panasonic PT-DZ21K2U
20,000 Lumen WUXGA 3-Chip DLP Large-Venue Projector, No Lens

OUR PART #  PTDZ21K2U

Call for price! Not available online.


Recommended Accessories

Panasonic's PT-DZ21K2U large-venue projector offers powerful performance for applications such as rental/staging, auditoria, museums/exhibitions, digital signage, houses of worship, and more thanks to it's outstanding 20,000 lumen output, WUXGA resolution, high frame-rate 120 Hz processor for fluid motion projection and 3D capabilities, and much more.

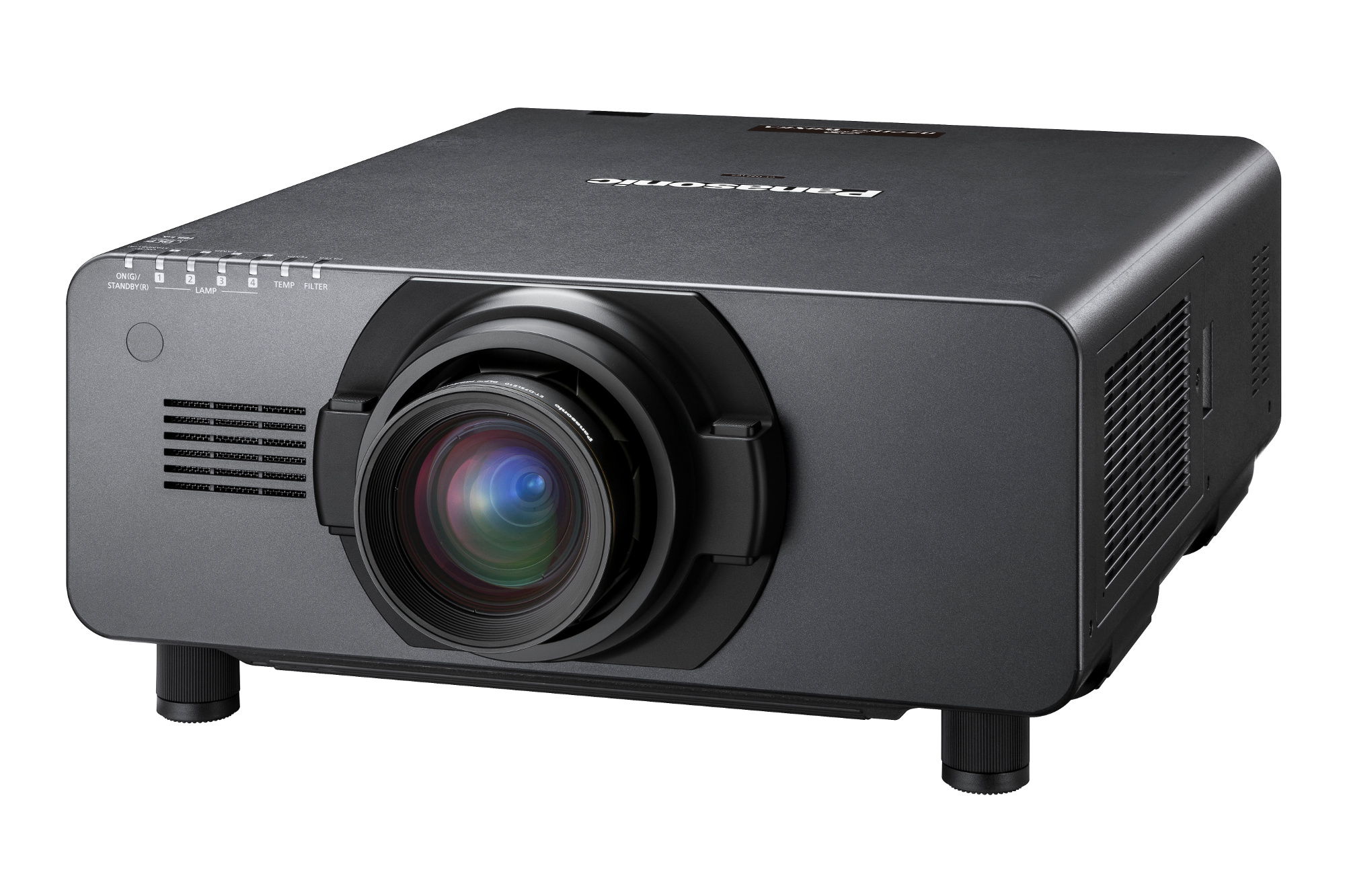

Lens shown in images above is sold separately. For more information on this and other products, please contact your Sales Pro.

Dynamic Iris for a High 10,000:1 Contrast Ratio
Panasonic's Dynamic Iris uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 (full on/off, with dynamic iris set to "3") contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures.

Detail Clarity Processor 3 Gives Natural Clarity to Even the Finest Details
This unique Panasonic circuit optimizes the sharpness of each image, based on the super-high, high-, medium-, and low-frequency components of the extracted image information. The resulting images have more natural, lifelike expression.

System Daylight View 2 for Enhanced Color Perception
This unique Panasonic technology optimizes image quality to improve the color perception of the projected image in bright rooms. With a brightnexx of 20,000 lumens, it provides highly comfortable viewing even in bright lighting, and allows viewers to concentrate easily on the images.

DICOM Simulation Mode
This imaging mode is similar to DICOM part 14, which is a medical imaging standard. The simulation mode found on this projector reproduces X-ray images with remarkable clarity. (The PT-DZ21K2U is not a medical instrument and is not designed for use for actual medical diagnoses).

Active 3D Projection Capability
The PT-DZ21K2U is compatible with both passive and active 3D projection systems. It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images.

Low TCO and an Environmentally Friendly Design
The PT-DZ21K2U projector lowers the total cost of ownership (TCO) becuase it has a lamp replacement cycle of up to 3000 hours (values given are for landscape orientation, the usage environment affects the lamp replacement cycle). The environmentally friendly design also includes a low power consumption or 2300 W.

Four-Lamp System Enables Stable, Extended Operation
The four-lamp system allows the projector to keep working even if a lamp should fail. The Lamp Relay mode also operates the lamps alternately to enable 24/7 projection. Quad, Triple, Dual, and Single Lamp modes can be used.

Easy Lamp Replacement
For easier maintenance, you can replace the lamp from the rear. This makes it easy to replace a lamp even when the projector is in an installation setup, such as in a mounting bracket or in a dual-stacked configuration.

Liquid Cooling System Attains a High Level of Reliability
The new liquid cooling system found on the PT-DZ21K2U directly cools the DLP™ chip to improve performance and enable operation up to 113°F (45°C). It allows quiet (46 dB) and versatile use while stabilizing performance. It also helps make the body compact, and the system is hermetically sealed, so you don't need to replensih the liquid.

Eco Filter that Needs No Maintenance for up to 12,000 Hours
The Eco Filter has an electrostatic Micro Cut Filter that collects minute dust particles with an ion effect. It combines with the dust-resistant cabinet to enable long-term use even under harsh conditions. Its maintenance cycle of up to 12,000 hours reduces hassle, and the environmental design lets you wash the filter with water and reuse it. (The usage environment affects the filter maintenance cycle. When washing with water, please follow the procedures listed in the operating instructions. Also, it is recommended replacing the filter with a new one after it has been washed and reused twice. If the filter is not sufficiently clean after washing, replace it with a new one.)

Geometric Adjustment for Specially Shaped Screens
This function adjusts the image for projection onto spherical, cylindrical, and other specially shaped screens. You can make the adjustment easily using only the remote control, with no external equipment needed. New 4-Corner Adjustment and Keep Aspect Off (a firmware update is required for Keep Aspect Off) functions also simplify fine adjustment. Each corner can be independently adjusted, and up to three sets of adjusted data can be stored. You can keep the aspect on when correcting curves. To make effective use of the screen area, you can also turn the aspect-keeping function off.

Multi-Screen Support System Seamlessly Connects Multiple Screens
The Multi-Screen Support System optimally adjusts multiple screens with functions for adjusting Edge blending, Color matching, and Digital image enlarging. Use Edge Blending to allow for the edges of adjacent screens to be blended and their luminance controlled. The Color Matching function corrects for slight variations in the color reproduction range of individual projectors. The Digital Image Enlarging function features a digital zoom that allows iamges to be enlarged up to 10 times (horizontally and vertically). Up to 100 units (10 x 10) can be edge-blended at a time to create large, multi-screen images. (While the input resolution will not change, maintaining image quality will not be possible for those images that are enlarged horizonally and vertically via the digital zoom function.)

Panasonic PT-DZ21K2U Specifications:

  • Power Supply: 200 - 240 V AC, 50/60 Hz
  • Power Consumption: 2060 W (0.3 W with STANDBY MODE setto ECO, 4 W with STANDBY MODE set to NORMAL)
  • Refresh Rate: 120 Hz
  • DLP Chip:
    • Panel Size: 0.96" (24.4 mm) diagonal, 16:10 aspect ratio
    • Display Method: DLP chip x3, DLP projection system
    • Pixels: 2,304,000 (1920 x 1200) x3, total of 6,912,000 pixels
  • Lamp:
    • Normal: UHM lamp x4 (432 W), replacement cycle of up to 3000 hours
    • Portrait: UHM lamp x4 (432 W), replacement cycle of up to 1000 hours
  • Lens: Optional powered zoom and fixed focus lenses
  • Screen Size (diagonal):
    • 70 - 1000" (1.78 - 25.4 m)
    • 120 - 600" (3.05 - 15.24 m) with the ET-D75LE90 lens (sold separately)
    • 70 - 600" (1.78 - 15.24 m) with the ET-D75LE8 lens (sold separately)\
  • Brightness: 20,000 lumens (four-lamp)
  • Center-to-center Uniformity: 90%
  • Contrast: 10,000:1 (full on/off, with dynamic iris set to "3")
  • Resolution: 1920 x 1200 pixels
  • Scanning Frequency:
    • SD-SDI: SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i, 576i
    • HD-SDI: SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
    • Dual-link HD-SDI: SMPTE ST 372 compliant, [RGB 4:4:4 12-bit /10-bit] 1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 2048 x 1080/24p, 2048 x 1080/24sF, [X´Y´Z´ 4:4:4 12-bit] 2,048 x 1,080/24p, 2,048 x 1,080/24sF
    • 3G-SDI  SMPTE ST 424 compliant, [YPBPR 4:2:2 10-bit] 1080/50p, 1080/60p, [RGB 4:4:4 12-bit /10-bit]1080/50i, 1080/60i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p
    • Dual-link 3G-SDI: SMPTE ST 425 compliant, [YPBPR 4:4:4 12-bit / 10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p, [RGB 4:4:4 12-bit/10-bit] 1080/60p, 1080/50p, 2048 x 1080/60p, 2048 x 1080/50p, 2048 x 1080/48p
    • HDMI/DVI-D/DIGITAL LINK: 525i (480i), 625i (576i), 525p (480p), 625p (576p), 750 (720)/60p, 750 (720)/50p, 1125 (1080)/24p, 1125 (1080)/24sF, 1125 (1080)/25p, 1125 (1080)/30p, 1125 (1080)/60p, 1125 (1080)/50p, 1125 (1080)/60i, 1125 (1080)/50i, VGA
    • (640 x 480)-WUXGA (1920 x 1200), compatible with non-interlaced signals only, dot clock: 25-162 MHz
    • DVI-D/HDMI simultaneous input: 1920 x 1200p, 1920 x 1080p, 1400 x 1050p, 1366 x 768p, 120 Hz/100 Hz
    • RGB: fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 13.5-162 MHz
    • YPBPR (YCBCR) :
      • fH: 15.73 kHz, fV: 59.94 Hz [480i (525i)]
      • fH: 31.47 kHz, fV: 59.94 Hz [480p (525p)]
      • fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
      • fH: 33.75 kHz, fV: 60 Hz [1035/60i]
      • fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
      • fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF]
      • fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p]
      • fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p]
    • Video/Y/C: fH: 15.73 kHz, fV: 59.94 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
  • Optical Axis Shift (from center of scren):
    • Vertical: ±55 % (±44 % with the ET-D75LE6, +73 - +78 % with the D75LE90) (powered)
    • Horizontal: ±20 % (±15 % with the ET-D75LE6, ±6 % with the ET-D75LE90) (powered)
  • Keystone Correction Range: Vertical : ±40° (±22° withthe ET-D75LE50, ±28° with the ET-D75LE6, +5° with the ET-D75LE90), horizontal: ±15°
  • Keystone Correction Range with Optional Upgrade Kit:Vertical: ±45° (±40° with the ET-D75LE10/ET-D75LE20, ±22° with the ET-D75LE50, ±28° with the ET-D75LE6), horizontal: ±40° (±15° with the ET-D75LE50/ET-D75LE6)
  • Installation: Ceiling/floor, front /rear, portrait
  • Terminals:
    • SDI IN: BNC x 2 (3G/HD/SD-SDI)
    • DVI-D IN: DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
    • HDMI IN: HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
    • RGB 1 IN: BNC x 5 (RGB/YPBPR /YCBCR/VIDEO/YC x 1)
    • RGB 2 IN: D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
    • 3D SYNC IN/OUT: BNC x 1 (3D timing signal)
    • 3D SYNC OUT: BNC x 1 (3D timing signal)
    • SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
    • SERIAL OUT: D-sub 9-pin (male) x 1 for link control
    • REMOTE 1 IN: M3 x 1 for wired remote control
    • REMOTE 1 OUT: M3 x 1 for link control (for wired remote control)
    • REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel)
    • LAN/DIGITAL LINK: RJ-45 x 1 (for network, DIGITAL LINK connection, 100 Base-TX, compatible with Art-Net, PJLink™ (class 1), Deep Color, HDCP)
  • Cabinet Materials: Molded plastic
  • Dimensions: 24-13/32" W x 10-1/32" H x 28-3/4" D (620x 255 x 730 mm)
  • Weight: Approx. 90.4 lbs (41.0 kg)(optional lens not included)
  • Operation Noise: 46 dB
  • Operating Environment:
    • Operating Temperature: 32°F to 113°F (0°C to 45°C)
    • Operating Humidity: 10 - 80% (no condensation)
  • Applicable Software: Logo Transfer Software, MultiMonitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10 Auto Screen Adjustment Kit)
  • Supplied Accessories: Power cord with secure lock, wireless/wired remote control unit, batteries (R6/AA type x 2), software CD-ROM (Logo Transfer Software, Multi Monitoring & Control Software)
