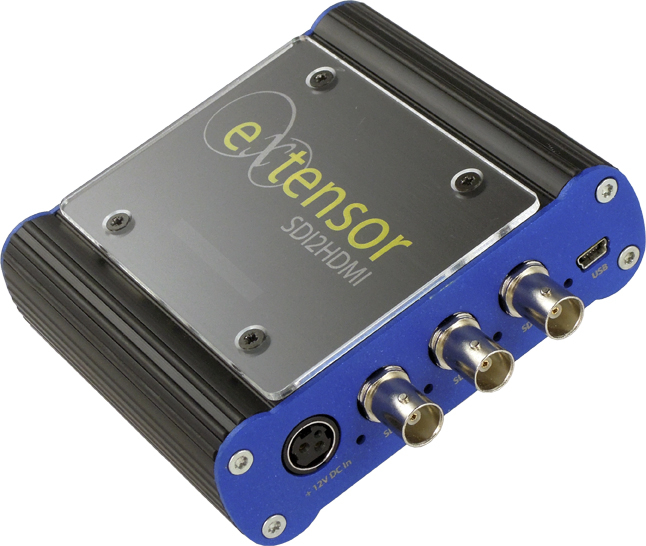

Vitec Extensor SDI2HDMI
SDI to HDMI Video Converter

OUR PART #  SDI2HDMI

Our Price: $428.04
List Price: $435.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Vitec Extensor SDI2HDMI provides seamless conversion of HD-SDI video to HDMI with optional downscaling, along with converting embedded audio in SDI (up to 4 pairs) to stereo unbalanced audio, digital audio AES/EBU and audio embedded in HDMI. It offers support for the full range of video resolution formats and frame rates, with progressive to progressive, interlaced to interlaced and interlaced to progressive downscaling available on each output. Its on-screen display overlays all status information directly on the video output signal, and an embedded standardized color bar pattern facilitates equipment calibration. This compact device comes with a lockable connector on the power supply to prevent accidental disconnection, and may be placed on a tabletop or wall mounted. The mini-switch on the side of the converter gives easy adjustment; software upgrades can be installed via the USB connector and an LED indicator tells you that the unit is operating.

Vitec Extensor SDI2HDMI Feature Highlights:

  • Converts 1 x SDI BNC stream to 1 x HDMI v1.3
  • Converts 1 x embedded audio in SDI (up to 4 pairs) input to 1 x stereo unbalanced audio, 1 x digital audio AES/EBU, and 1 x digital audio embedded in HDMI
  • Inputs: 1 x HD-SDI with embedded audio (BNC) and 1 x embedded audio in SDI (up to 4 pairs)
  • Outputs: 1 x HD-SDI (BNC), 1 x HDMI v1.3, 1 x stereo unbalanced audio, 1 x digital audio AES/EBU, and 1 x embedded audio in HDMI
  • Frame rates supported include 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second; 1080i at 25 / 29.97 / 30 frames per second; 720p at 50 / 59.94 / 60 frames per second; 576i, 480i at 25 / 29.97 frames per second
  • PsF mode

Vitec Extensor SDI2HDMI Specifications:

Video I/O

  • Input:
    • 2x HD-SDI (3Gb/s) with embedded audio (up to 8 pairs)
    • SDI Compliance:
      • SMPTE-259M, SMPTE-292M, SMPTE-424M, and SMPTE-425-A
  • Output:
    • 1x HD-SDI (3Gb/s) loop through
    • 1x HDMI out with embedded audio
    • Downscaling available for each output (progressive > progressive or interlaced > interlaced or interlaced > progressive)
    • 1x DVI-D out using an adapter HDMI to DVI-D (sold separately)

Conversion I/O

  • Video Input: 1x HD-SDI (BNC)
  • Video Output:
    • 1x HD-SDI (BNC)
    • 1x HDMI (v1.3)
  • Audio Input: 1x Embedded audio in SDI (up to 4 pairs)
  • Audio Output:
    • 1x Stereo unbalanced audio
    • 1x Digital audio AES / EBU
    • 1x Embedded audio in HDMI

Frame Rates Supported

  • 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second
  • 1080i at 25 / 29.97 / 30 frames per second
  • 720p at 50 / 59.94 / 60 frames per second
  • 576i, 480i at 25 / 29.97 frames per second

Vitec Extensor SDI2HDMI
SDI to HDMI Video Converter

OUR PART #  SDI2HDMI

Product Information:

The Vitec Extensor SDI2HDMI provides seamless conversion of HD-SDI video to HDMI with optional downscaling, along with converting embedded audio in SDI (up to 4 pairs) to stereo unbalanced audio, digital audio AES/EBU and audio embedded in HDMI. It offers support for the full range of video resolution formats and frame rates, with progressive to progressive, interlaced to interlaced and interlaced to progressive downscaling available on each output. Its on-screen display overlays all status information directly on the video output signal, and an embedded standardized color bar pattern facilitates equipment calibration. This compact device comes with a lockable connector on the power supply to prevent accidental disconnection, and may be placed on a tabletop or wall mounted. The mini-switch on the side of the converter gives easy adjustment; software upgrades can be installed via the USB connector and an LED indicator tells you that the unit is operating.

Vitec Extensor SDI2HDMI Feature Highlights:

  • Converts 1 x SDI BNC stream to 1 x HDMI v1.3
  • Converts 1 x embedded audio in SDI (up to 4 pairs) input to 1 x stereo unbalanced audio, 1 x digital audio AES/EBU, and 1 x digital audio embedded in HDMI
  • Inputs: 1 x HD-SDI with embedded audio (BNC) and 1 x embedded audio in SDI (up to 4 pairs)
  • Outputs: 1 x HD-SDI (BNC), 1 x HDMI v1.3, 1 x stereo unbalanced audio, 1 x digital audio AES/EBU, and 1 x embedded audio in HDMI
  • Frame rates supported include 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second; 1080i at 25 / 29.97 / 30 frames per second; 720p at 50 / 59.94 / 60 frames per second; 576i, 480i at 25 / 29.97 frames per second
  • PsF mode

Vitec Extensor SDI2HDMI Specifications:

Video I/O

  • Input:
    • 2x HD-SDI (3Gb/s) with embedded audio (up to 8 pairs)
    • SDI Compliance:
      • SMPTE-259M, SMPTE-292M, SMPTE-424M, and SMPTE-425-A
  • Output:
    • 1x HD-SDI (3Gb/s) loop through
    • 1x HDMI out with embedded audio
    • Downscaling available for each output (progressive > progressive or interlaced > interlaced or interlaced > progressive)
    • 1x DVI-D out using an adapter HDMI to DVI-D (sold separately)

Conversion I/O

  • Video Input: 1x HD-SDI (BNC)
  • Video Output:
    • 1x HD-SDI (BNC)
    • 1x HDMI (v1.3)
  • Audio Input: 1x Embedded audio in SDI (up to 4 pairs)
  • Audio Output:
    • 1x Stereo unbalanced audio
    • 1x Digital audio AES / EBU
    • 1x Embedded audio in HDMI

Frame Rates Supported

  • 1080p at 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 frames per second
  • 1080i at 25 / 29.97 / 30 frames per second
  • 720p at 50 / 59.94 / 60 frames per second
  • 576i, 480i at 25 / 29.97 frames per second
