100 Meter HDBaseT HDMI and VGA 2x1 Switcher / Extender


The HD-HPC-SP-Tx transmitter from FSR is a true HDBaseT 5-Play device that transmits HD Video (up to 4k @30hz.), Audio, Bi-Directional Control (IR &RS-232)...
Learn More
Our Price: $408.59
List Price: $449.00
You save 9%!
Write the first review.
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

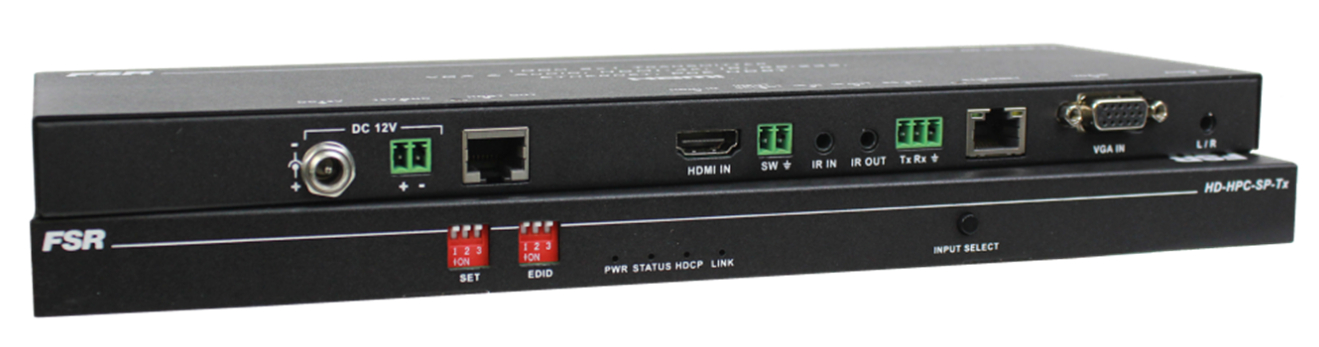

The HD-HPC-SP-Tx transmitter from FSR is a true HDBaseT 5-Play device that transmits HD Video (up to 4k @30hz.), Audio, Bi-Directional Control (IR &RS-232), Ethernet, and Power via 1 CAT-6A shielded cable out to 100 Meters. The HD-HPC-SP-Tx works with any of FSR’s other 100 Meter HDBaseT Receivers and can be powered from either end (Tx to Rx or Rx to Tx). The HD-HPC-SP-Tx’s integral switcher has both HDMI and VGA with Audio inputs as well as Control (IR & RS-232) and Ethernet.

The switcher has built-in auto-sensing circuitry to switch to the active source or can be manually triggered using the front panel Input Select Button or via contact closure on the rear screw terminals.

FSR HD-HPC-SP-Tx Includes:

  • HD-HPC-SP-Tx Transmitter
  • Two 2-pin screw-down terminals
  • One 3-pin screw-down terminals
  • One IR Emitter
  • One IR Receiver (30kHz ~ 50kHz)
  • Two Mounting Ears with attaching screws (mounting hardware not provided.)

FSR HD-HPC-SP-Tx Features:

  • Transmission distance for 1080p over Cat 5e/6 reaches up to 100 meters. 4K reaches up to 70 meters
  • Supports VGA input (with L/R audio) and HDMI input
  • Switches the input source simply by pressing the button on the front panel or contact closure via pluggable screw terminal connector on the rear panel
  • Automatically switches to an active source
  • HDBT 2.0 compliance
  • HDMI 1.4 with 4K compliance
  • Bi-directional PoE
  • Bi-directional IR
  • IR, Ethernet and RS232 control over HDBT
  • Space saving design
  • Choice of two power inputs
  • Extracted audio output

NOTE: The actual signal transmission distance can vary and depends on signal resolution, cable quality, graphics card, and display used in the system.

FSR HD-HPC-SP-Tx Specifications:

  • HDMI In to HDBaseT Out (RJ-45)
  • VGA Video In (HD-15 Female) - Audio In (1/8" MiniJack)
  • RS-232 via 3-Pin Captive Screw Terminal (Tx, Rx, GND)
  • IR RX & TX via 1/8" mini jacks
  • 12v Power via screw connector or 2-Pin Captive ScrewTerminal (12v & GND)
  • Ethernet Port (RJ-45)
  • Unit Dimensions: (W x L x H) 11.50” x 3.67” x 0.79”
