Datavideo Corporation VS150
Waveform Monitor/Vectorscope

OUR PART #:  VS150

The Datavideo Corporation's VS-150 is a table top (or rack-mounted) waveform monitor and vectorscope that displays HD/SD-SDI vectorscope, waveform...
Learn More
Our Price: $1,000.00
Write the first review.
Datavideo Corporation VS150
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

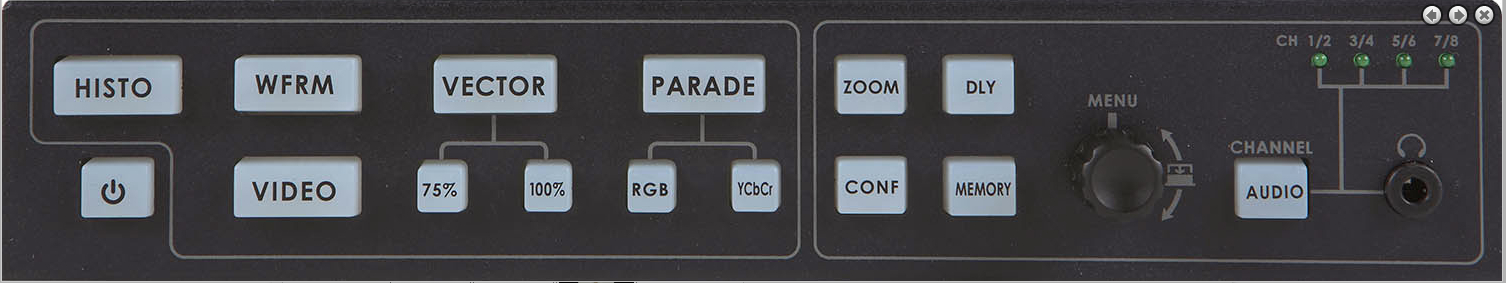

The Datavideo Corporation's VS-150 is a table top (or rack-mounted) waveform monitor and vectorscope that displays HD/SD-SDI vectorscope, waveform, parade, and histogram information at the push of a button. Datavideo's VS/VSM series of waveform monitor/vectorscopes are based on a core module, packaged in 4 different forms. The VS150 is a 1/2-width version with each function available through a button on the front of the unit. You'll always know whether your color and luminance levels are consistent and within spec. The scope data can be easily displayed on a large separate HDMI or HD/SD-SDI monitor or in the HD/SD-SDI video stream.

Datavideo Corporation VS150 Specifications:

  • Interface:
    • 1x SDI/HD-SDI input (HD-SDI SMPTE 292M 1.5Gbps, SD-SDI SMPTE 259M-C 270 Mbps with Embedded Audio)
    • 1 x SDI/HD-SDI Loop through output
    • 1x HDMI Output
  • HD/SD-SDI:
    • SMPTE 259M-C (270Mbps - 525/625 Component Video) and SMPTE 292M (1.485/1.001 Gbps) Connector BNC (IEC 169-8) Impedance 75 Ohm
  • Return Loss:
    • HD: >10 dB (1.5 GHz)
    • SD: >15 dB (270 MHz)
  • Equalization:
    • 200 m Belden 8281 cable at 270 Mbps
    • 100 m (typical) of Belden 1694A at 1.485 Gbps
  • HDMI: Supports HDMI v1.1
  • Operating Temperature: 0°C to 50°C (32°F to 102°F)
  • Humidity: 10% to 90% (non-condensing)
  • Dimensions: 220mm (W) x 47mm (H) x 221.3mm (D)
  • Weight: Gross, packed = 2.2 kg
  • Power: DC 12V / 0.5A (3.6W)
