Bogen Communications UDMS800BP
Bodypack Wireless Microphone System

OUR PART #:  UDMS800BP

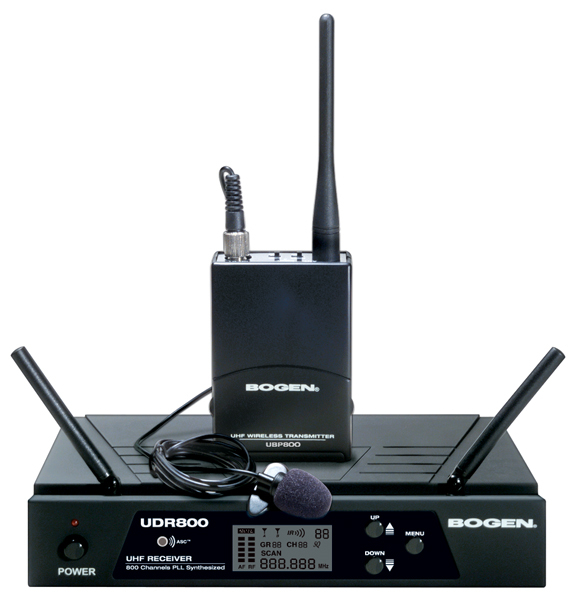

Bogen Communications’ UDMS800BP is a UHF wireless bodypack microphone system that includes a UPB800 Bodypack Transmitter, a lavalier mic, and the UDR800 UHF Receiver.
Learn More
Our Price: $207.97
List Price: $253.14
You save 18%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications UDMS800BP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Bogen Communications’ UDMS800BP is a UHF wireless bodypack microphone system that includes a UPB800 Bodypack Transmitter, a lavalier mic, and the UDR800 UHF Receiver. Taken together, the 800-channel PLL-synthesized system offers 800 user-selectable frequencies, a 120dB dynamic range, operation of up to 500 feet (line-of-sight), a locking 3.5mm mini-jack for removable microphone and an audio mute switch for the transmitter – all in a ½ rack receiver design with panel dual antennas that’s powered by a wall power adapter.

The system’s UHF receiver (UDR800) has its own set of features, such as DigiTRU Diversity™ for maximum range and dropout protection, full LED indicators, both ¼” unbalanced and XLR balanced outputs, Tone Squelch™ for locking out potential interference, noiseless transmitter ON/OFF switching, and level control for unbalanced output.

System choices consist of an 800-channel PLL-synthesized UHF Receiver with either a handheld microphone or lavalier microphone and body-pack transmitter, although a headset microphone (BCHM) is also available.

Bogen UDMS800BP Includes:

  • UBP800 Body-Pack Transmitter w/ Lavalier Mic
  • UDR800 UHF Receiver

Bogen UDMS800BP Features:

  • 800-channel PLL-synthesized UHF Receiver offers 800 user-selectable frequencies
  • 120 dB dynamic range
  • Operation up to 500' line-of-sight
  • Locking 3.5mm mini-jack provides secure connection for removable mic
  • Audio mute switch for transmitter
  • 1/2 rack receiver design

Bogen UDMS800BP Specifications:

  • Overall System Specifications:
    • Operating Frequency Range: 470 MHz-490 MHz (U.S.)
    • Freq. Synthesized (800 channels switchable) 25 kHz/step
    • PLL System Frequency Stability: <0.005%
    • Frequency Response: 50 Hz-18 kHz +/-3 dB
    • Dynamic Range: 120 dB
    • Harmonic Distortion: <0.5%
    • Modulation: FM (F3E) +/-25 kHz normal, +/-75 kHz max.
    • Operating Range: 150-250 feet typical, 500+ feet max.line-of-sigh
  • UBP800 Body-Pack Transmitter:
    • RF Output Power: +17 dBm Max, +14 dBm (25mW typical)
    • Harmonic/Spurious Emission: -50 dBc normal
    • Input Impedance: 5kOhms (Lavaliere); 500k Ohms(Instrument)
    • Controls: Power and Audio ON/OFF switches, Input Level
    • Input Connector: Locking 3.5 mm mini-jack
    • LED Display: Bi-Color - Power ON (GREEN) and Low Battery ON (RED)
    • Antenna Type: External Removable
    • Battery Type: 2 x AAA alkaline or NiMH
    • Battery Life: 6-8 Hours typical, alkaline
    • Dimensions: 2-1/4” W x 3-3/8” H x 1” D  (5.7cm x 8.6cm x 2.5cm)
    • Product Weight (w/o batteries): 2.8 oz. (79 g)
    • Housing Construction: ABS Plastic
    • Lavalier Mic: 4 ft. long cord; 0.6 oz.
  • UDR800 Receiver:
    • Receiver System: Dual conversion Super Heterodyne with Digi-True Diversity (dual antennas with optimum reception selected)
    • Selectivity: 60 dB, normal +/-75 kHz offset
    • Image Rejection: -70 dB, minimum
    • Sensitivity: -107 dBm, normal
    • Spurious Rejection: 65 dB, normal
    • Mute /Squelch: Adjustable (-65 dBm to -95 dBm), Tone Squelch 40 kHz
    • Controls: Power ON/OFF push switch, VOLUME line level pot, MENU, UP/DOWN buttons
    • LCD Display: MUTE, AF/RF bars, A/B diversity, IR, GR/CH, MUTE Level, SCAN, Frequency
    • LED Indicator: Power ON
    • Audio Outputs:
      • LINE OUT UNBALANCED: adjustable line audio output
      • MIC Out Balanced: Fixed MIC level audio output
    • Output Impedance:
      • Unbalanced: 1kOhm
      • Balanced: for 600 Ohm loads
    • Power Requirement: 22V DC/0.4A
    • Antennas: Dual permanently attached swivel antennas
    • Dimensions: 8” W x 1-5/8” H x 5-1/8” D (20.2cm x 4.1cm x 13cm)
    • Product Weight: 1 lb. (454 g)
    • Housing Construction: ABS Plastic
