Blizzard Lighting Solar Ray
25x 3W LED Matrix Module

OUR PART #:  SOLAR-RAY

It's time to meet the Blizzard Lighting Solar Ray™, a fixture that combines cutting-edge optic design with bright, warm white (2800K) Edison LEDs...
Learn More
Our Price: $449.99
List Price: $599.99
You save 25%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blizzard Lighting Solar Ray
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

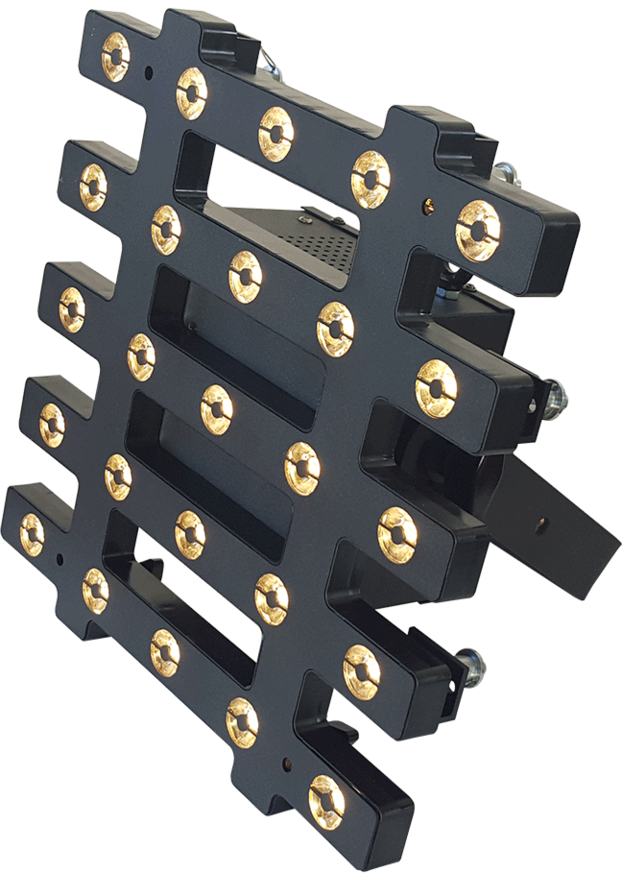

It's time to meet the Blizzard Lighting Solar Ray™, a fixture that combines cutting-edge optic design with bright, warm white (2800K) Edison LEDs, as well as special optical reflectors that produce intense 8° narrow beams of light. A wall of light, brighter than that of conventional LED screens is the effect that's generated. A 5x5 matrix panel fitted with 25x highly efficient Edison LEDs, Solar Ray's 30x30 cm panels have an onboard modular rigging system that lets you to assemble an impressive wall or matrix of virtually any size! It features an innovative electric design and is made with high quality components and drivers that result in a stepless and linear dimmer, equal in performance to halogen fixtures, making it ideal for theatrical applications or wherever high performance flicker-free dimming is needed. Super slim, lightweight, and user friendly it's also a great choice for rental companies. Solar Ray panels come with an easy-to-use 4-button control menu, and due to an onboard power supply there's no need for an external driver. The graphic LCD display can be used for standard operation, or you can employ DMX or Kling-Net™ protocols for diagnostics and addressing, as well as auto configuration over Ethernet.

A superb performer at a superb price, of course Blizzard's 2-year warranty backs it up.

Blizzard Lighting Solar Ray Main Features:

  • 25x high efficiency 3-Watt Edison LEDs
  • Projects intense narrow beams of 2,800k warm white light
  • Flexible panel system with integrated locks
  • Easy configuration and setup via built-in LCD control panel
  • Individual pixel control in 25-channel DMX mode
  • 29 built-in programs + auto run with speed adjustment
  • Kling-Net/Art-Net™ support allows auto-configuration over Ethernet
  • 8° beam angle, pitch: 60 mm
  • DMX Channels: 6/25
  • Strobe Rate: 0-20 Hz
  • Strong cast aluminum housing
  • Internal Protection: IP20
  • Smooth dimming curve with flicker-free operation (400Hz)
  • PowerCON™-compatible* AC power In/Out connectors

Disclaimer: The power connector fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trademarks of Neutrik AG.

Blizzard Lighting Solar Ray Specifications:

  • Light Source: 25x 3-Watt Edison 2,800k Warm White LEDs
  • Optical:
    • Beam Angle: 8°
    • Luminous Intensity: 13,500 Lux @ 1m, 5,120 Lux @ 2m
    • Pixels: 5 x 5
    • Pixel Pitch: 60mm
  • Power
    • Operating Voltage: 100-240VAC, 50-60 Hertz
    • Power Consumption: 75W, 1.02A, PF: .61
  • Operating Temperature: Max. Operating Temp.: 104° F (40° C) ambient
  • Control:
    • Protocol Art-Net™, Kling-Net™, USITT DMX-512
    • DMX Channels 6/25-Channels
    • Input/Output 3-pin XLR Male/Female
    • Standalone, Master/Slave, Auto, Sound Active
  • Physical:
    • Dimensions (WxDxH): 11.8" x 3.8" x 11.8" (300 x 96 x 300mm)
    • Weight: 8.9 lb. (4 kg)
  • Warranty: 2-year limited warranty, does not cover malfunction caused by damage to LEDs
