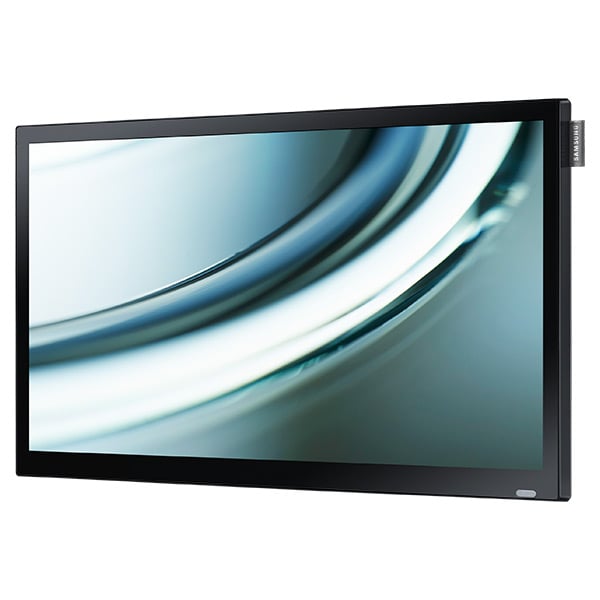

Samsung DB22D-P
22" DB-D Series 1080p Direct-Lit LED Display with HDMI Input


The Samsung DB22D-P 22" 1080p direct-lit LED display offers a fully embedded solution to manage digital signage content without connecting external devices.
Learn More
Samsung DB22D-P - Right Side Close-Up View
Samsung DB22D-P - Bottom View
Samsung DB22D-P - Right Side View

Click a thumbnail to see more images. (5 total)

Our Price: $334.07
List Price: $460.00
You save 27%!
Write the first review.
Samsung DB22D-P
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Samsung DB22D-P 22" 1080p direct-lit LED display offers a fully embedded solution to manage digital signage content without connecting external devices. An enhanced Samsung SMART Signage Platform (SSP) features a quad core processor, combined with media player functionality via System-on-Chip (SoC), and MagicInfo software. The 22" form factor fits small placements, while full HD resolution delivers sharp, stunning images.

Samsung DB22D-P Includes:

  • DB22D-P 22" LED display
  • Quick Setup Guide
  • Warranty Card
  • D-Sub cable
  • Power Cord

Samsung DB22D-P Features:

  • Sleek, industrial design with a 22" form factor for small placements
  • Slim 2.3" chassis depth with slim-direct LED backlight technology
  • Reliable 16/7 operation with 3 year on-site warranty
  • Enhanced SSP with Quad Core Processor
    • SSP is an integrated, open platform providing a powerful streamlined solution to reduce TCO in digital signage deployments through savings in hardware installation and operating costs.
  • SSP enabled with media player functionality via SoC, built-in processing, built-in power control and MagicInfo content management software for an all-in-one digital signage solution that allows users to effectively and efficiently coordinate their signage.
  • LED slims your TCO thanks to up to 50% energy savings over CCFL.
  • Connections include D-sub, USB, HDMI and WiFi embedded and external control capability via RS232C.
  • Built-in WiFi allows you to eliminate LAN cables for simpler installation.
  • Can be utilized as a shelf-level or endcap solution.
  • Enterprises can share agenda or meeting room information outside of conference rooms.
  • Advertising or floor-level information can be displayed on the inside of an elevator.
  • Built-in Speakers
  • Temperature Sensor
  • Pivot Display
  • Image Rotation
  • Button Lock
  • Clock Battery (80hrs Clock Keeping)
  • Magic Clone (to USB)
  • Auto Source Switching & Recovery
  • RS232C/RJ45 MDC
  • Plug and Play (DDC2B)
  • Smart Scheduling
  • Smart F/W update
  • Built-in MagicInfo Player S2

Samsung DB22D-P Specifications:

  • Series Name: DB Series
  • Display:
    • Screen Size: 21.5"
    • Panel Technology: Slim Direct-LED Backlight
    • Resolution: 1920x1080 (16:9)
    • Brightness: 250 nits
    • Contrast Ratio (Typical): 1000:1
    • Viewing Angle (H/V): 178:178
    • Response Time: 5ms
  • Connectivity:
    • Input: VGA (D-sub 15 pin), HDMI, Stereo mini Jack
    • External Control: RS232C(in) thru stereo jack, RJ45
  • Power:
    • Power Supply: AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
    • Power Consumption:
      • Typical: 40W
      • Max: 44W
      • Standby: < 0.5W
  • Environmental Conditions:
    • Operating Temperature: 32ºF ~ 104ºF
    • Operating Humidity: 10~80%
  • SMART Signage Platform: Yes
  • Media Player Type: Cortex-A9 1GHz Quad Core, 1.5GB DDR3, 4GB FDM, USB 2.0, Linux OS
  • VESA Standard Wall-Mount Interface: 100 x 100mm
  • Wi-Fi: Yes
  • Dimensions:
    • Without Stand: 20" W x 12.3" H x 2.27" D
    • In Packaging: 22.4" W x 14.8" H x 5" D
    • Bezel Width:
      • Top: 17.5mm
      • Side: 14.9mm
      • Bottom: 24.5mm
  • Weight:
    • Product Weight: 7.9 lbs
    • Package Weight: 7.9 lbs
  • Standard Warranty: 3 Years On-Site (Parts / Labor /Backlight)
  • Green Management:
    • RoHS Compliant: Yes
    • Emission Standard: EMC
    • Packaging Materials: Recyclable
