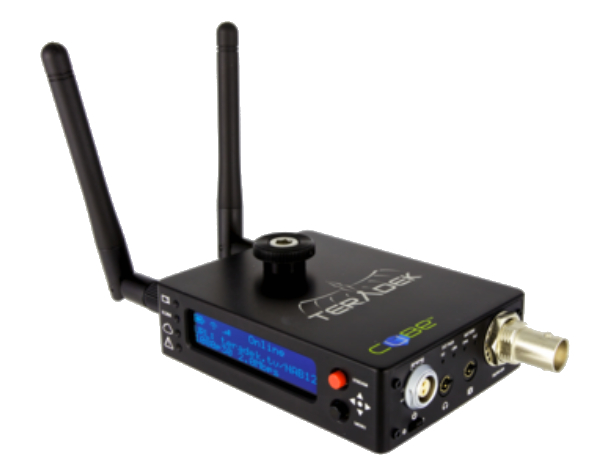

Teradek Cube 155
Wireless HD Encoder for HD-SDI Sources


The Teradek Cube 155 is an H.264 encoder that transmits HD video over a/b/g/n WiFi, Ethernet, and cellular.
Learn More
Our Price: $1,990.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


Teradek Cube 155
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Teradek Cube 155 is an H.264 encoder that transmits HD video over a/b/g/n WiFi, Ethernet, and cellular. This particular unit streams via Ethernet, 2.4/5GHZ WiFi, or a single 3G/4G LTE USB dongle to Teradek decoders, iOS devices, or content delivery networks. The Cube 155 includes all of the same great features of the original Cube such as a low power compact aluminum chassis, comprehensive transport protocol support (RTP / RTSP / RTMP / MPEG-TS*), and compatibility with any streaming video platform.

NOTE: *MPEG-TS sold separately

Teradek Cube 155 Includes:

  • 110-240V AC Power Adapter
  • 2 x Wireless Antennas
  • Ethernet Cable
  • USB Stick with TeraCentral Desktop Software
  • SDI Cable
  • Hot Shoe Adapter with Thumbscrew
  • 1-Year Warranty

Teradek Cube 155 Features:

  • OLED: Cube's new OLED enables users to rapidly change and review the settings of their unit in addition to providing real-time feedback for filenames, recording status, and wireless connectivity. No longer are computers or iPads needed for configuration; every feature is a simple click away.
  • Li-ION Battery: Cube's built-in Li-ION battery will give users up to 2 hours of runtime, which allows for seamless battery swapping or quick broadcasts. The battery can also be charged from an AC adapter or even a suitable external battery such as an Anton Bauer.
  • MIMO Access Point: The new MIMO access point feature greatly improves wireless performance and enables special features such as wireless camera control for devices without a WiFi capability built in, and ensures improved connectivity from an iPad or Android tablets.
  • Audio Output: Cube now comes with a headphone output for immediate audio monitoring.
  • Micro SD: The micro SD slot enables Cube to save on-board proxy recordings in real time. The recorded files (.mov or .mp4) are automatically synced with your proxy server over WiFi or cellular connections.
  • Micro USB: Cube's micro USB port will charge the new internal battery.
  • CDN Integration: The new Cube also supports dozens of Content DeliveryNetworks (CDNs), including Ustream, Justin.tv, Livestream, Youtube Live, andmany others.

Teradek Cube 155 Specifications:

  • Video Inputs:
  • Supported Resolutions:
    • 1080i 50/59.94/60
    • 1080p 23.98/24/25/30
    • 1080PsF 23.98/24/25
    • 720p 50/59.94/60
    • 576i
    • 480i
  • Video CODEC:
    • Compression Algorithm: Baseline, Main and High Profile H.264
    • Main and Baseline profiles
    • Bit Rate: 250 Kbps to 10 Mbps
    • Built in Video Scaler and Deinterlacer
  • Video Streaming Support:
    • Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
    • Transport Protocols: RTP, RTSP, RTP over HTTP, MPEG-TS (Optional paid license), Zixi (Optional paid license)
  • Audio:
    • Audio Compression: AAC-LC, MPEG Layer 2
    • Embedded Audio Input
    • Analog Line or Mic in, adjustable gain
    • Headphone output, adjustable volume
  • Physical:
    • Dimensions: 2.5"W x 3.5"D x .9"H
    • Weight: 8oz
  • Interfaces:
    • Feature-rich WebUI for configuration and control
    • OLED LCD Display with joystick Navigation buttons
    • On/Off and Reset Switch
    • Micro SD
    • Powered USB 2.0 host port
  • Network:
    • Ethernet: 10/100BASE-T
    • WiFi: Dual Band 802.11 a/b/g/n MiMO
    • USB Modem support**
  • Power:
    • 2 Pin Lemo Power input
    • Internal Rechargeable Lithium Ion Battery
    • USB Charging
    • Nominal Power Consumption: 3W
    • Nominal Power Consumption while Charging : up to 10W
    • Auxiliary Power Input: 6-28V DC

NOTE: **Currently supporting RED One, RED Epic, Arri Alexa and select Sony and Canon cameras. Please contact your sales representative to confirm support for your camera first.
