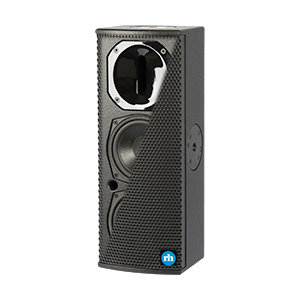

Renkus-Heinz RHX62
Dual 6.5", Non-Powered Speaker, Black


Selected Model Price: $1,323.74
List Price: $1,842.47

Save up to 28%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The Renkus-Heinz RHX Series enclosures represent an apex in point-source portable PA systems. The RHX Series is a build-to-order system featuring a dual wedge angle design and versatile rigging and mounting options, with self-powered models that offer advanced power modules with user-friendly presets. All models include screw thread points and a range of mounting hardware.

The RHX62 utilizes the same driver compliment as the IC Live series making it an ideal front fill or under balcony speaker to supplement IC Live systems. Suitable applications include foreground music systems (bars, restaurants, nightclubs, lounges) and sound reinforcement systems (house of worship, performing arts, centers, etc.).

In a compact, slimline, enclosure the RHX62 features four M20 threaded sockets - one on each side, top and bottom - making it fast and simple to attach a wide variety of hardware, including wall brackets, U-Brackets, Yoke Mounts and Pole Cup adapters. RH versions are self-powered, incorporating two- or three-way amplifier modules with built-in DSP and four factory presets. RHX versions are non-powered and designed to work with external amplification.

Renkus-Heinz RHX62 Features:

  • Premium 1" HF Driver and High Power 6.5" Woofers:
    • Neodymium magnets deliver smooth, low-distortion 130dB peak SPL performance from 70 Hz to 20 kHz
  • Smooth 70 Hz to 20 kHz Full Range Performance
  • Exclusive Complex Conic Design:
    • Provides constant beamwidth/directivity without the problems associated with conventional rectangular horns
    • Can be rotated 90° within the cabinet
  • Reliable, Easy-to-Use Hardware:
    • Multiple threaded pole sockets and an assortment of mounting hardware allow for easy horizontal and vertical mounting in almost any situation
  • Flexible Configurations: Easily change from passive to bi-amp operation and back again

Renkus-Heinz RHX62 Specifications:

  • Sensitivity: 94 dB (1W/1m)
  • Freq. Range:  70 Hz to 20 kHz
  • Max SPL: 130 dB peak @ 1 meter
  • Dispersion:  150° x 60°
  • Power Rating: 250 W AES @ 16 Ohms
  • Transducers:
    • 1” HF driver, RH model SSD1750TN
    • Dual 6.5” woofers; RH model SSL6.14
  • Connectors: Looping Neutrik 4-pin Speakon
  • Enclosure:  Multi-ply hardwood, perforatedsteel grille
  • Finish:  Black
  • Weight:  25 Lbs (11.4 Kg) Net
  • Dimensions:  21 1/2” H x 8” W x 7 1/8” D (54.6 cm x 20.3 cm x 18cm)
