Focusrite RedNet Native 16x16 Analog I/O System
16x16 RedNet Dante Digital Audio Network Package

OUR PART #:  REDNET-2-BUNDLE-NB2

The Focusrite RedNet Native 16x16 Analog I/O System is the easiest way to add world class conversion to your DAW, whether you use Cubase, Nuendo...
Learn More
Our Price: $4,099.98
List Price: $4,899.99
You save 16%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Focusrite RedNet Native 16x16 Analog I/O System
Qty:
In Stock

Similar Products

The Focusrite RedNet Native 16x16 Analog I/O System is the easiest way to add world class conversion to your DAW, whether you use Cubase, Nuendo, Logic, Pro Tools software, or other DAW for Mac or PC. Comprising RedNet 2, RedNet PCIe, Sonnet Echo Express SE I Thunderbolt chassis and a preconfigured Ethernet switch, this package includes everything you need to get started. Just add computer and DAW software.

With dynamic range of 119dB and incredibly low distortion, the RedNet converters will deliver pristine results every time whether tracking or mixing. RedNet PCIe provides true analog-round-trip latency of just 2.0ms at 96kHz allowing cue-mixes to be set up in the DAW software rather than a separate cue mix application.

RedNet 2 offers 16 channels of analog inputs and 16 channels of analog ouputs on four rear-panel DB-25 connectors. The included Cat 6 cable, which carries audio, control and clocking signals, is used to connect RedNet 2 to the Ethernet switch. Front panel signal indicators provide level-checking capability of all 16 input and 16 output channels.

It’s important that you make an investment that can grow with your studio. Once connected with RedNet 2, RedNet PCIe and your computer, the Ethernet switch will have five spare ports, allowing additional I/O to be added in future. When more I/O is needed, the extra interface is simply plugged in with a single Cat 6 cable, allowing the full 128 I/O channel count of RedNet PCIe to be realised. Alternatively, add additional computers with Dante Virtual Soundcard or additional RedNet PCIe interfaces, allowing a multi-DAW studio to be created. The possibilities are endless!

Finally, the included Sonnet Echo Express SE I Thunderbolt chassis allows you to use RedNet PCIe with any Thunderbolt-equipped Mac. Just insert the card, plug-in to your computer and build your own Dante network equipped production environment.

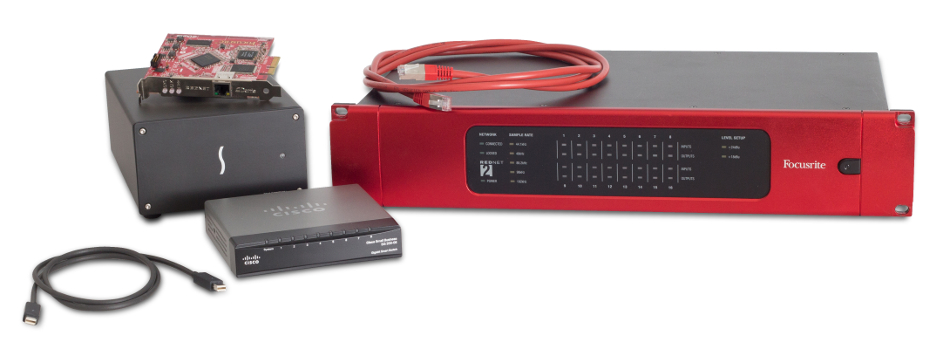

Focusrite RedNet Native 16x16 Analog I/O System Includes:

  • RedNet 2 16x16 Analog I/O
  • RedNet PCIe Card
  • Sonnet Echo Express SE I Thunderbolt Chassis
  • Cisco SG200-08 8-port Gigabit Smart Switch
  • Ethernet Cable
  • Thunderbolt Cable

Focusrite RedNet Native 16x16 Analog I/O System Features:

  • RedNet 2 16x16 analog I/O:
    • 16 channels analog in and 16 channels analog out
    • 119dB dynamic range conversion
    • Ultra-low distortion
    • Class-leading low latency
    • Front panel level indication
    • Dante audio-over-IP networking
    • 2U anodized red aluminium front panel
  • RedNet PCIe Card:
    • 128 channels I/O from Core Audio or ASIO DAWs
    • Sub 3.0ms analog-round-trip latency at all sample rates
    • 2.0ms analog-round-trip latency at 96kHz
    • Dante audio-over-IP networking
  • Cisco SG200-08 Ethernet Switch:
    • Preconfigured for Dante audio-over-IP networking
    • 8 port Gigabit network switch
    • Connect additional computers and RedNet gear
  • Sonnet Echo Express SE I:
    • Thunderbolt chassis
    • Thunderbolt cable
  • Dante Virtual Soundcard*:
    • Turn any computer’s Ethernet port into a network soundcard
    • 64x64 channels at 44.1/48kHz
  • Includes Red 2 & Red 3 Plug-in suite*

*NOTE: All users should update to RedNet Control version 1.6, and registration of Focusrite RedNet products is mandatory to receive update notices, the Dante Virtual Soundcard, and the Red 2 & Red 3 Plug-In Suite. For more information on this and other products, contact your Sales Representative.

Focusrite RedNet Native 16x16 Analog I/O System Specifications:

  • RedNet 2:
    • Inputs:
      • Analog Line Inputs:  16
      • Connector:  25-way female Dsub x 2, wired to AES 59
      • 0 dBFS Reference Levels:  +18 or +24 dBu (switchable)
      • Frequency Response:  20 Hz – 20 kHz ±0.05 dB
      • THD+N:  < 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz
      • Dynamic Range:  119 dB ‘A’-weighted (-60 dBFS method)
      • Converter Dynamic Range:  120 dB
      • Signal-to-Noise Ratio:  119 dB ‘A’-weighted; 20 Hz – 20 kHz
    • Outputs:
      • Analog Line Outputs:  16
      • Connector:  25-way female Dsub x 2, wired to AES 59
      • 0 dBFS Reference Levels:  +18 or +24 dBu (switchable)
      • Frequency Response:  20 Hz – 20 kHz ±0.15 dB
      • THD+N:  < 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz
      • Dynamic Range:  119 dB ‘A’-weighted (-60 dBFS method)
      • Converter Dynamic Range:  120 dB
      • Signal-to-Noise Ratio:  119 dB ‘A’-weighted; 20 Hz – 20 kHz
    • Crosstalk:
      • Input or Output to Input:  < -90 dB (all other channels at 0 dBFS)
      • Input or Output to Output:  < -100 dB (all other channels at 0 dBFS)
    • Digital Performance:
      • Supported Sample Rates:  44.1 / 48 / 88.2 / 96 / 192 kHz
      • Clock Sources:  Internal or from network master device
    • Power:  Internal PSU, Universal type, consumption 30 VA
    • Front Panel Indicators:
      • Power:  Green
      • Network Connected:  Green
      • Sync Lock:  Green
      • Sample Rate:  Yellow x 5
      • Input/Output Range:  Yellow x 2
      • Input/Output Signal Level:  Bi-color x 32 (Green = -42 dBFS; Orange = -6 dBFS; Red = overload)
  • RedNet PCIe Card:
    • 128 inputs / 128 outputs at 44.1, 48, and 96 kHz (64 I/O at 192 kHz)
    • Supports high-quality 24-bit / 192 kHz audio
    • Compatible with most modern computers via a standard 4-lane PCI Express card slot
    • System Requirements:
      • Mac:
        • Mac Pro
        • OS X 10.7.x (Lion) or 10.8.x (Mountain Lion)
        • Minimum 2GB RAM
        • Please note the first generation Mac Pro (original, 2006) is not supported
      • Windows:
        • Windows 7 or Windows 8
        • Minimum 2GB RAM
