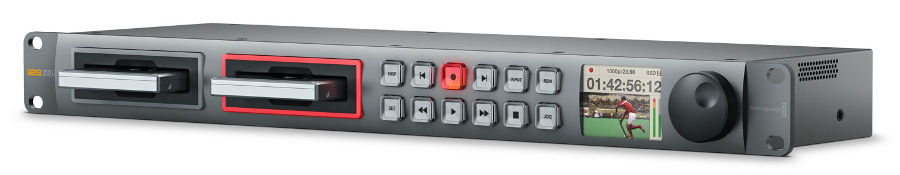

Blackmagic Design HyperDeck Studio 12G
1RU Multi Rate 12G-SDI and HDMI 2.0 Disk Recorder with LCD Screen

OUR PART #:  HYPERDECK-STUDIO-12G

Blackmagic Design's HyperDeck Studio 12G is a professional high performance broadcast deck with advanced 12G-SDI and HDMI 2.0 for recording and playback of all SD...
Learn More
Our Price: $1,420.25
List Price: $1,495.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Blackmagic Design HyperDeck Studio 12G
Qty:
In Stock

Similar Products

Blackmagic Design's HyperDeck Studio 12G is a professional high performance broadcast deck with advanced 12G-SDI and HDMI 2.0 for recording and playback of all SD, HD and Ultra HD formats up to 2160p60. With this model's advanced technology you can replace aging broadcast decks. Customers get the same functionality and control of a traditional deck with the advantage of recording directly to 10-bit 4:2:2 uncompressed files for SD and HD, or to broadcast quality Apple ProRes and DNxHD files for SD, HD and Ultra HD.

The advanced HyperDeck Studio 12G model includes 12G-SDI which allows Ultra HD at higher frames up to 60 fps. For years broadcasters have used high frame rate 720p and 1080p HD to cover sport and other fast action events. Now with 12G-SDI, HyperDeck Studio 12G can record the same high frame rates in Ultra HD. Broadcasters can now obtain the same production values of high frame rates, combined with the incredibly high resolution of Ultra HD, all down a single SDI BNC cable. 12G-SDI is multi rate so it also plugs into all your SD, HD-SDI, 3G-SDI and 6G-SDI equipment, and HyperDeck Studio 12G switches standards instantly, as it records whatever SDI signal is input and plays back whatever files you put on the SSD. Only 12G-SDI is the format of the future, that also connects to all the equipment you have today.

There are two SSD slots allowing for continuous recording of full 10-bit 4:2:2 quality video onto standard 2.5” solid state disks. When one disk is full recording automatically continues onto the next disk. HyperDeck Studio 12G creates files that are ready for post production and SSD cards can be mounted directly on a Mac or PC computer. That means editors and colorists can instantly use the files off the disk without having to convert or transcode them. Files are compatible with all popular post production applications such as DaVinci Resolve, Final Cut Pro X, Premiere Pro, Media Composer and more.

HyperDeck Studio 12G has a compact, single rack unit design that easily fits into any equipment rack, flyaway kit or outside broadcast vehicle. The machined metal design makes it rugged and durable enough to use in even the harshest production environments. The VTR style controls on the front panel are designed to make HyperDeck Studio 12G easy and familiar to use. There are illuminated play, record, rewind, and fast forward buttons, along with a standard jog/shuttle wheel on the front panel. HyperDeck Studio 12G can also be controlled remotely using standard RS-422 deck control or via SDI start/stop triggers.

Blackmagic Design HyperDeck Studio 12G Includes:

  • HyperDeck Studio 12G
  • Software CD

Blackmagic Design HyperDeck Studio 12G Features:

  • Record and playback of HD and Ultra HD up to 60 fps or 2160p60
  • Capture and playback with SSDs in uncompressed10-bit, DNxHD and ProRes quality
  • Supports QuickTime format to uncompressed, DNxHD and ProRes files and MXF files for DNxHD
  • Dual slots for continuous recording, when one disk is full it continues to record to the next disk
  • 12G-SDI inputs and outputs, automatically switch between all SD, HD and Ultra HD video formats
  • HDMI 2.0 input and outputs with support for Ultra HD 4K
  • USB connection for software updates to add new features and video formats
  • RS-422 deck control interface for external control
  • Ethernet for transport control and setting changes
  • 1 rack unit size with universal 110/240V built in power supply

Blackmagic Design HyperDeck Studio 12G Specifications:

  • Connections:
    • SDI Video Input: 1 x 10-bit SD/HD/3G/6G/12G-SDI switchable. Supports single link 4:2:2
    • SDI Video Output: 2 x 10-bit SD/HD/3G/6G/12G-SDI switchable. 1 x 10-bit SD/HD/3G/6G/12G-SDI switchable Loop Output. 1 x 10-bit SD/HD/ switchable Monitor Output
    • HDMI Video Input: HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2
    • HDMI Video Output: HDMI 2.0 type A connector with support for Ultra HD 4K 10-bit 60p 4:2:2
    • SDI Audio Input: 16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files
    • SDI Audio Output: 16 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files
    • HDMI Audio Input: 8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files
    • HDMI Audio Output: 8 channels embedded in SD, HD, and UHD in QuickTime files. 2 channels embedded in HD in Avid DNxHD MXF files
    • SSD Interface: 2 x 2.5" SATA 6Gb/s
    • Sync Input: Blackburst or Tri-Sync
    • Device Control: Sony™ compatible RS422 deck control port
    • Recorder Control: 12 buttons and jog wheel for local control. RJ45 Ethernet or RS422 for remote control
    • Recorder Configuration: Front panel configurable or USB 2.0 high speed interface
    • Computer Interface: 1 x USB 2.0 Mini-B port for software updates and HyperDeck Utility software control
  • Standards:
    • SD Format Support: 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only
    • HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60
    • 4K Playback Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
    • SDI Metadata Support: HD RP188 and closed captioning CEA-708
    • Audio Sampling: Television standard 24-bit, 48 kHz sample rate
    • Video Sampling: 4:2:2
    • Color Precision: 10-bit
    • Color Space: REC 601, REC 709
    • Multiple Rate Support: SDI and HDMI switchable between SD, HD and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD, 3G-SDI, 6G-SDI and 12G-SDI
    • Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
  • Codecs:
    • Supports: Uncompressed QuickTime, Apple ProRes 422 (HQ) QuickTime, ProRes 422 QuickTime, ProRes 422 (LT) QuickTime, ProRes 422 (Proxy) QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60
  • Software:
    • Software Included: Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only)
    • Internal Software Upgrade: Loaded at system start, or via updater software using USB port
  • Operating Systems:
    • Mac: Mac OS X 10.9 Mavericks, Mac OS x 10.10 Yosemite or later
    • Windows: Windows 7 or Windows 8
  • Display: Built-in LCD for video, audio and timecode monitoring and menu settings
  • Physical Installation: 1 rack unit size. Less than 7" deep
  • Power Requirements:
    • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. 110-240V, 50-60Hz
  • Physical:
    • Dimensions (H x W x D): 1.75" x 19" x 6.9"
    • Weight: 3.59 lbs.
  • Environmental:
    • Operating temperature: 41°to 104° F (5° to 40° C)
    • Storage temperature: -4° to 113° F (-20° to 45° C)
    • Relative Humidity: 0% to 90% non-condensing
