Modular Delay with CV/Gate and Eurorack Compatibility


Our Price: $299.00
(Low Price Guarantee)
In Stock

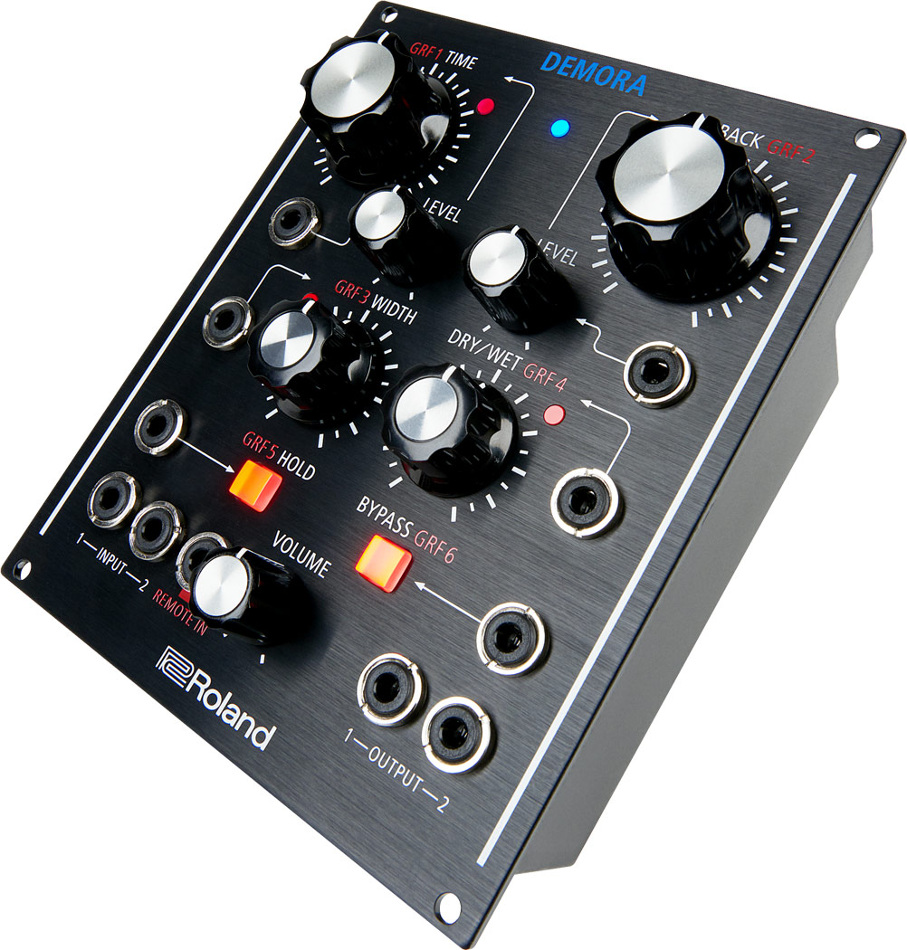

The Roland DEMORA is a unique modular effect combining an all-new, high-resolution delay with unprecedented control and flexibility. Able to be used as a tabletop unit or as a Eurorack module, and with an array of CV/Gate inputs, this compact 21 HP unit has a wide range of uses from studio production to live performance. Not only for modular synth users, DEMORA is perfect for keyboard players, guitarists, DJs or any adventurous musician looking to expand their sound. Carefully crafted in Japan, DEMORA has large, ultra-smooth controls with over 16 million steps of resolution and is fully re-programmable via computer, smartphone or tablet.

High-Resolution, Ultra-Smooth Delay Effect
DEMORA is an all new delay algorithm with a smooth, creamy sound and quick response that is as fun to tweak as it is to hear. With the massive range of delay times and buffer hold function you can create anything from ultra-subtle widening to dramatic rhythmic effects. Using the large comfortable controls or standard 1/8" patch cables, you can independently control the delay time, feedback, width, wet/dry signal, delay hold and signal bypass. Both the delay time and feedback parameters have input level controls for adjusting the modulation range when controlled from an external source. Two inputs and two outputs make DEMORA a stereo-capable, 24-bit/96kHz audio interface for Eurorack systems and AIRA Link USB compatibility gives it single-cable, plug and play connectivity with the MX-1 Mix Performer.

Reprogrammable via Mac, Windows, iOS, or Android Applications
While it sounds great out of the box, you can fully customize DEMORA’s internal signal path by re-patching its array of virtual sub-modules via a custom application that works on Mac and Windows PCs as well as iOS and Android devices. Submodules are re-patched through a simple and intuitive drag and drop interface that even lets you choose which parameters are assigned to the high-resolution “GRF” knobs. You can reprogram DEMORA in realtime via USB connection or save and recall patches with a simple audio signal. You can even share patches with other DEMORA users.

Roland DEMORA Features:

  • High-resolution, ultra-smooth delay effect
  • Huge delay range from 20 microseconds to 10 seconds
  • CV/Gate parameter control including delay time, feedback and width
  • Tabletop unit or 21 HP Eurorack module using AC adapter or Eurorack power
  • 24-bit knobs with over 16 million steps of resolution
  • Re-programmable via Mac/Windows PCs, iOS, or Android applications
  • 15 patchable submodules, expandable with free updates
  • 2 inputs and 2 outputs with dual-mono or stereo capability
  • AIRA Link compatible
  • 24-bit/96kHz audio interface
  • Carefully crafted in Japan
  • Includes braided patch cables

Roland DEMORA Specifications:

  • CV Input Level:  -10 to +10 V
  • Gate Input Level:  +3 V
  • Controls:
    • GRF 1 Knob (Time)
    • GRF 2 Knob (Feedback)
    • GRF 3 Knob (Width)
    • GRF 4 Knob (Dry/Wet)
    • GRF 5 Knob (Hold)
    • GRF 6 Knob (Bypass)
    • Volume Knob
  • Indicator:  Center Indicator
  • Connectors:
    • Input 1 & 2 Jacks:  1/8" miniature phone type
    • Remote In:  1/8" miniature phone type
    • Output 1 & 2:  1/8" miniature phone type
    • GRF 1 - 6 Jacks:  1/8" miniature phone type
    • USB Port:  MicroB type (Audio/MIDI)
    • DC In Jack
  • Power Supply:  AC Adapter or Eurorack Power
  • Current Draw:  950 mA (AC adapter); 450 mA (Eurorack power)
  • Included Accessories:
    • AC Adapter
    • Owner's Manual
    • Leaflet "Using the Unit Safely"
    • Eurorack Installation Screwss
    • Eurorack Power Cable
    • Patch Cables
  • Size and Weight:
    • Width:  4-1/4" (106.6 mm)
    • Depth:  5-1/16" (128.4 mm)
    • Height:  2-5/16" (58.3 mm)
    • Weight:  12 oz (320 g)
